PROGRAMMING
To program the 624 BLD control panel, you must access
the “PROGRAMMING” mode.
Programming is in two parts: 1st LEVEL and 2nd LEVEL.
NOTE: Modification of the programming
parameters is immediately effective, whereas
complete memory-storage occurs only on
exiting programming and returning to the view
of the automation status St. If you cut power
to the unit before returning to view the status,
all the programming changes made will be lost.
NOTE: You can return to viewing the status
from any point of programming at any level, by
pressing keys “F” and “—” at the same time.
NOTE: To restore the programming back to
default settings, press keys “+”, “—”, and “F” at
the same time and hold them down for 5
seconds.
1ST LEVEL PROGRAMMING
To access 1ST LEVEL PROGRAMMING, use push-button
F:
• If you press it (and hold it down), the display shows
the name of the first function.
• If you release the push-button, the display shows
the value or parameter of that function, which can
be changed by using the “+” and/or “—” keys.
• If you press F again (and hold it down) the display
shows the name of the next function, etc.
• When you reach the last function, press the F push-
button to exit programming, and the display
resumes showing the input status.
The following table indicates the sequence of
functions accessible in 1st LEVEL PROGRAMMING:

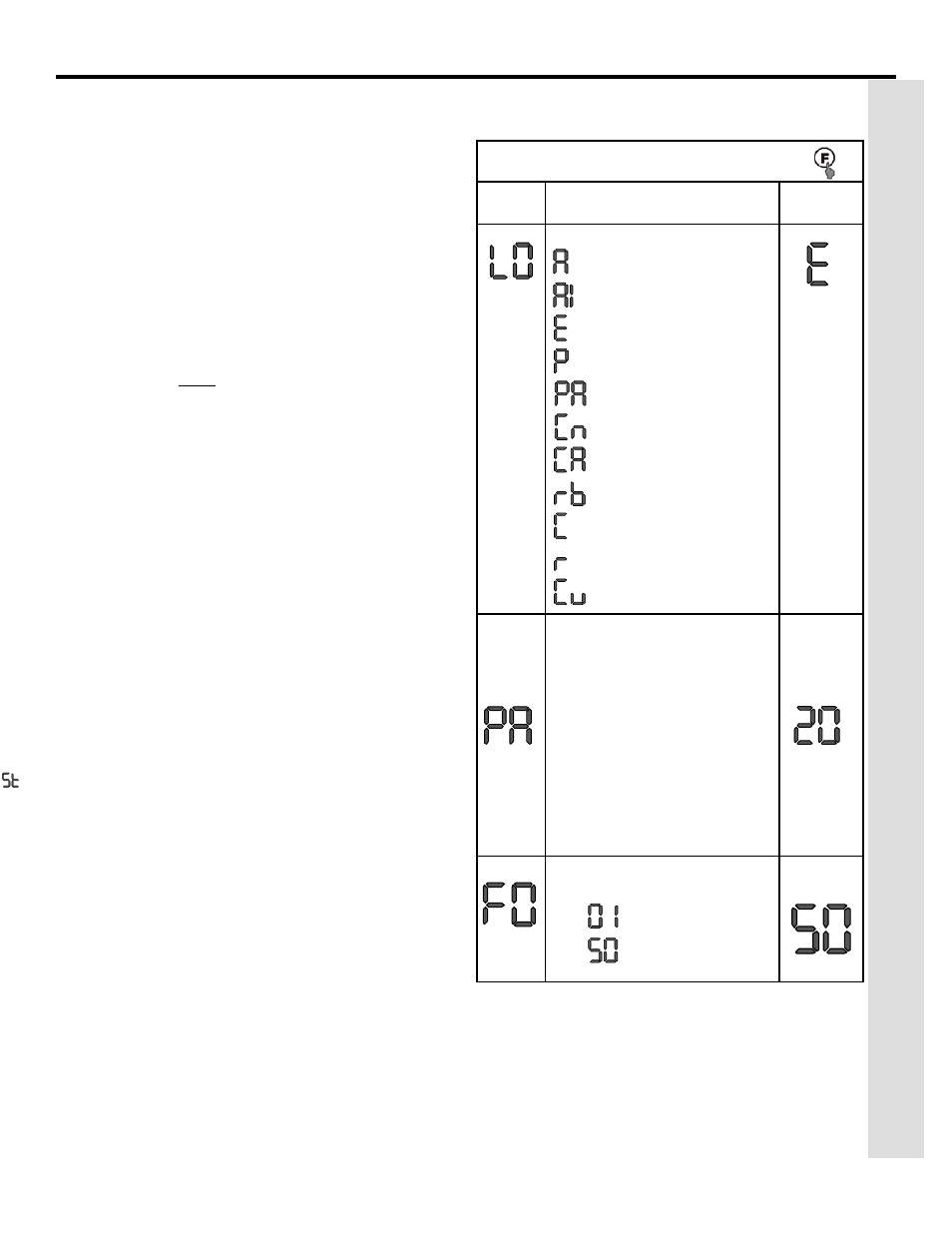

1ST LEVEL PROGRAMMING
DISPLAY FUNCTION DEFAULT
FUNCTION LOGICS:
AUTOMATIC
AUTOMATIC 1
SEMI-AUTOMATIC
PARKING
PARKING AUTOMATIC
CONDO
CONDO AUTOMATIC
TRAFFIC BOLLARD LOGIC
DEAD-MAN
REMOTE
CUSTOM
PAUSE TIME:
This function only works if an
automatic logic was selected. It
can be adjusted from 0 to 59
seconds in one second steps.
Next, the viewing changes in
minutes and tenths of a second
(separated by a dot) and time is
adjusted in 10 second steps, up
to the maximum value of 4.1
minutes.
E.g. if the display shows 2.5, the
pause time will be 2 minutes
and 50 seconds.
POWER:
Adjusts motor power.
= minimum power
= maximum power
J11 A, B, C C
ONNECTOR
- Q
UICK
-F
IT
C ONNECTOR FOR FAAC P LUG IN L OOP D ETECTOR
Quick-fit connector for connecting the external loop-
detector. For adjustment and programming consult the
loop detector instruction.
J4 Q
UICK
-F
IT
C
ONNECTOR
- F
OR
FAAC R
ADIO
R ECEIVER
If you are using the FAAC two-channel receiver, you will
be able to directly command the automated system’s
OPEN and CLOSE from the radio control.
WARNING: Insert and remove the plug-in
boards ONLY after cutting power.
