P age 9
July , 2 00 6
3 9 0 24 v O pe ra t or A nd
4 2 5 D C ontrol Pa ne l I nsta ll a ti on Ma nua l

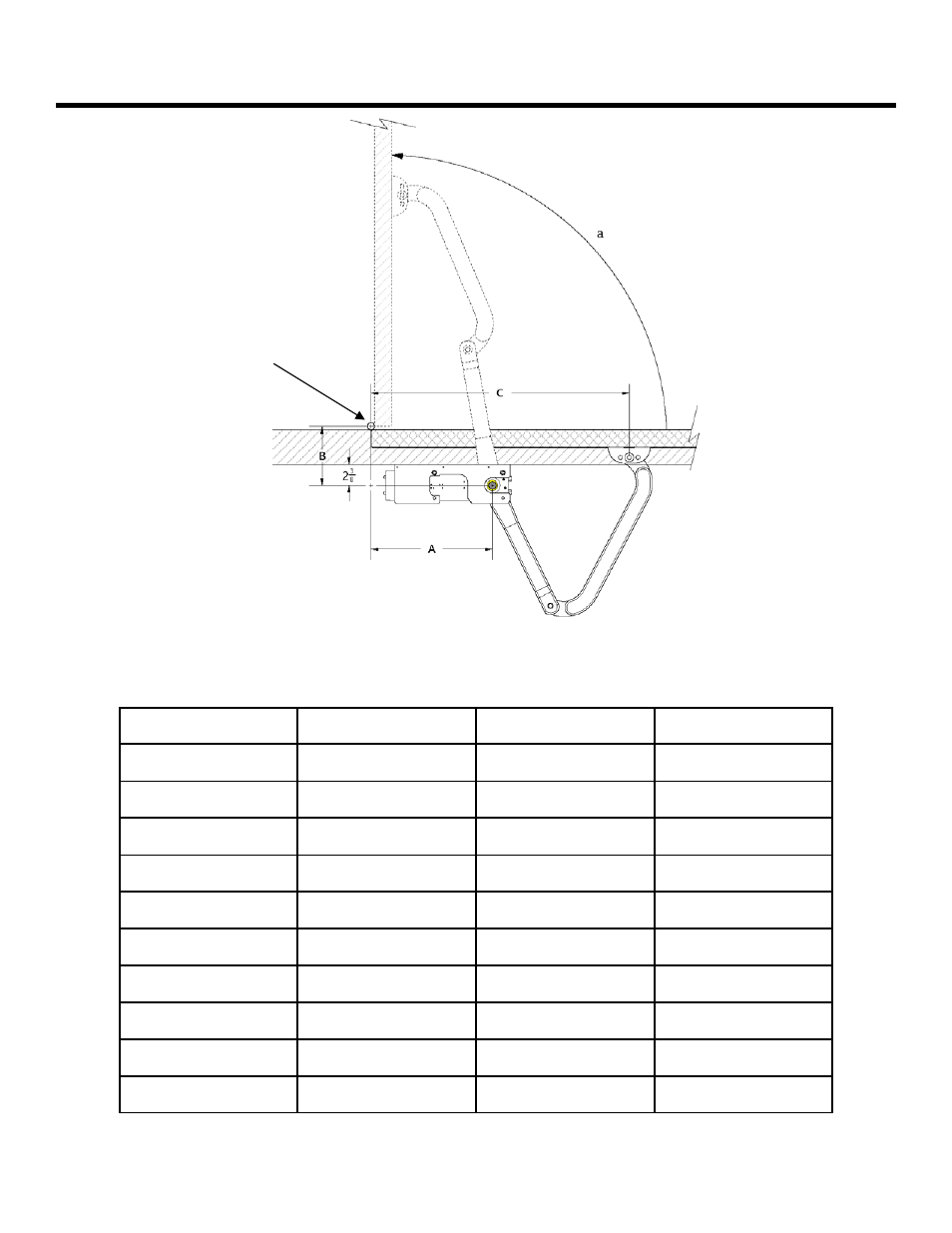

Figure 6. Typical “overhead” outward swing mounting
dimensions for garage/carriage door applications.
A B C (max) a°
2¼”- 4¼” 4¼”- 5¼” 28¾” 90°
4¼”- 6¼” 4¼”- 5¼” 28¼” 90°
6¼”- 8¼” 4¼”- 5¼” 28” 90°
8¼”- 10¼” 4¼”- 5¼” 27½” 90°
10¼”- 12¼” 4¼”- 5¼” 27” 90°
12¼”- 14¼” 4¼”- 5¼” 26¼” 90°
2¼”- 4¼” 7½”- 8¼” 25½” 120°
4¼”- 6¼” 9”- 10” 23½” 120°
6¼”- 8¼” 11½”- 12¼” 21¼” 120°
8¼”- 10¼” 12¼”- 13” 20” 120°
Hinge
