LOGIC SETTING
E P
A
ACTIVITATION COMMAND
Open/Close/Open
Open/Stop/Close/Stop
SECURITY MODE
Only useful in EP Logic
Only useful in A Logic
REVERSING STROKE (useful with electric locks)
Disabled
Enabled
COURTESY LIGHT/WARNING LIGHT
Flashing Light
Courtesy Light (Light stays lit solid for
90 seconds)
DECELERATION PERCENTAGE SETTING
20% of opening run time
10% of opening run time
DECELERATION SPEED (SLOW DOWN SPEED)
High
Low
LIMIT SWITCHES (WITH/WITHOUT)
Not using limit switches
Using limit switches
NUMBER OF MOTORS
One operator connected
Two operators connected
LEAF DELAY
1.5 seconds
3 seconds
6 seconds
10 seconds
DISPLAY DESCRIPTION
T
HE
425 D C
ONT
R
OL
P
AN
E
L
I
NS
TALLATION
I
NS
TRU
C
TIONS
P
ROGRAMMING
WARNING! Turn off the main power before you
make any electrical connections or set any
switches inside the control panel box.
To program the automated system, the
“Programming Mode” must be accessed.
The 425D has two push buttons labeled P1 and P2
that are used to program how the control panel
operates and responds to inputs.
1. The display should show “— —”.
2. Press and hold the P2 button for 5 seconds
until the display shows the first parameter.
3. To change the parameter values use the P1
button.
4. Use the P2 button to move from parameter to
parameter.
5. If no buttons are pushed for 60 seconds then
the board will automatically exit
programming.
6. Continuing all the way through the program to
the last parameter will also exit the program.

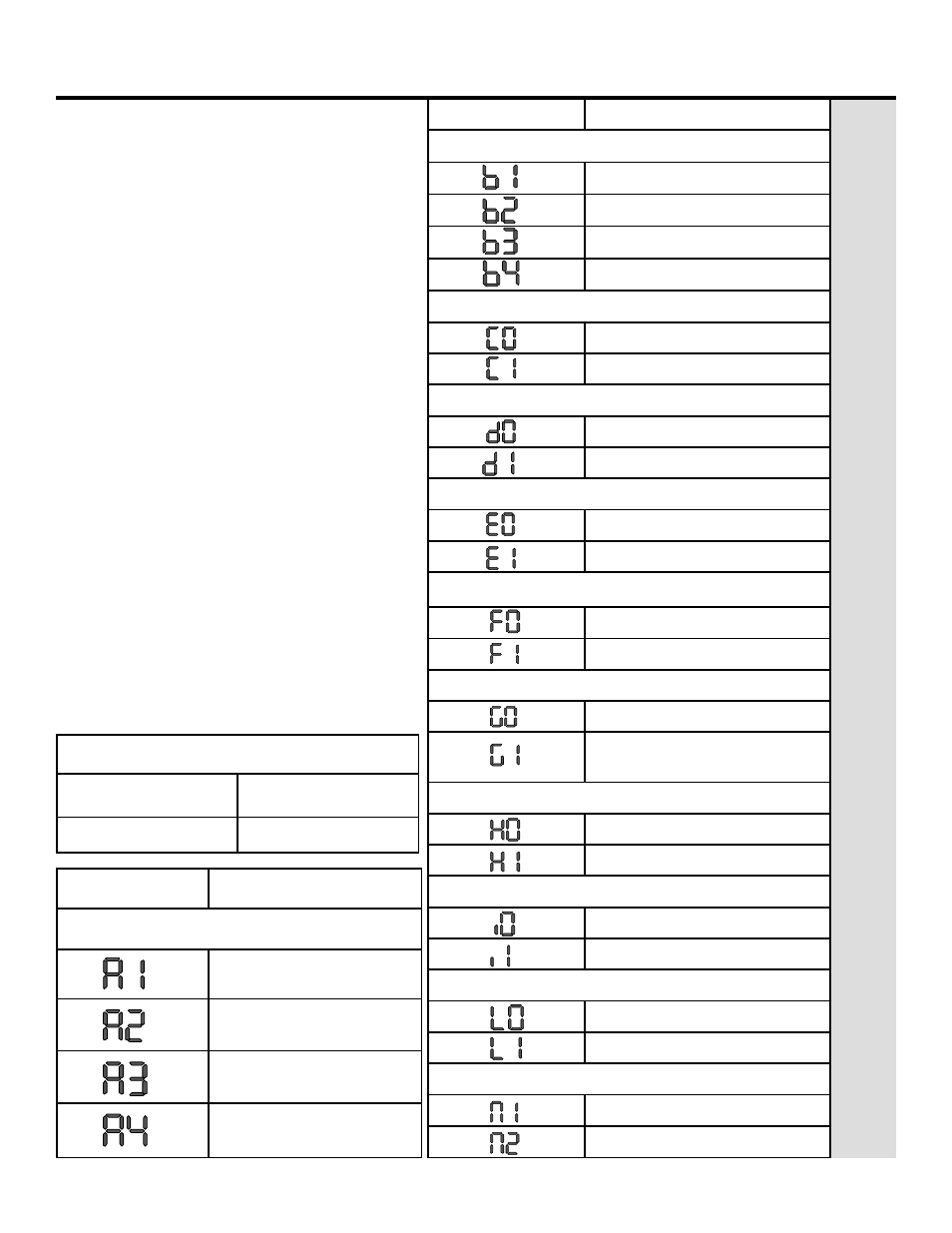

Use the following table to program the
parameters required for your installation.
PROGRAM BUTTONS
Left Right
P1 P2
DISPLAY DESCRIPTION
FORCE SETTING (Force Applied to the Gate)
Minimum force, maximum
sensitivity
Medium low force, maximum
sensitivity
Medium high force, minimum
sensitivity
Maximum force, minimum
sensitivity
