Pag e 10
Jul y , 2 00 6
3 9 0 24 v O pe ra t or And
4 2 5 D C ontrol Pa ne l I nsta ll a ti on Ma nua l
390 Limit Switch Instructions
When Using 1 Limit Switch (Open or Closed Stop)
When Using 2 Limit Switches (Open and Closed Stops)
Figure 7 Figure 8
Figure 9

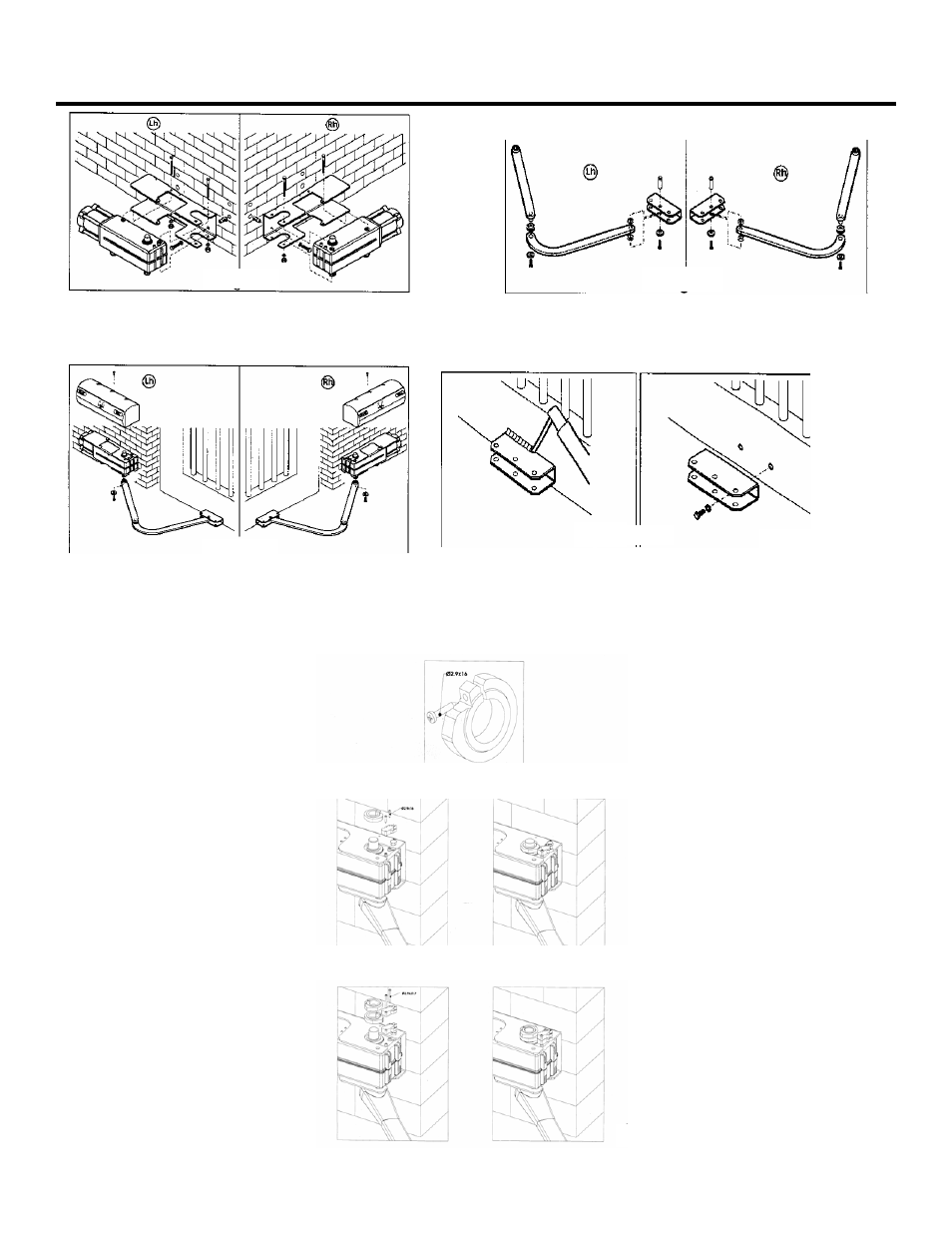

Figure 7 shows how to attach the operator
to the base plate. Figure 8 shows how to assemble the articulated
arm and front bracket.
Figure 9 shows how to attach the articulated
arm and operator cover to the operator.
Figure 10 shows how to attach the front mounting
bracket to the gate leaf(s).
Figure 10
Figure 10
