P age 5
July , 2 00 6
3 9 0 24 v O pe ra t or A nd
4 2 5 D C ontrol Pa ne l I nsta ll a ti on Ma nua l
U
NPACKING THE
O
PERATOR
When you receive your 390 24 V Operator, complete the
following steps.
Inspect the shipping box for physical damage such as a
torn carton. Then inspect the operator after you remove
it from the box. Notify the carrier immediately if you
note any damage because the carrier must witness the
damage before you can file a claim.
As you unpack the box, insure that all the parts listed
below are included (See Figure 2).
Control panel enclosure with control panel and
transformer.
The 390 Operator is supplied with the following parts
390 Operator Cover
Operator securing base-plate
390 Motor Assembly
Splined Shaft
Straight Arm (Articulated Arm)
Curved Lever (Articulated Arm)
Front Mounting Bracket
Manual Release
Manual Release Key

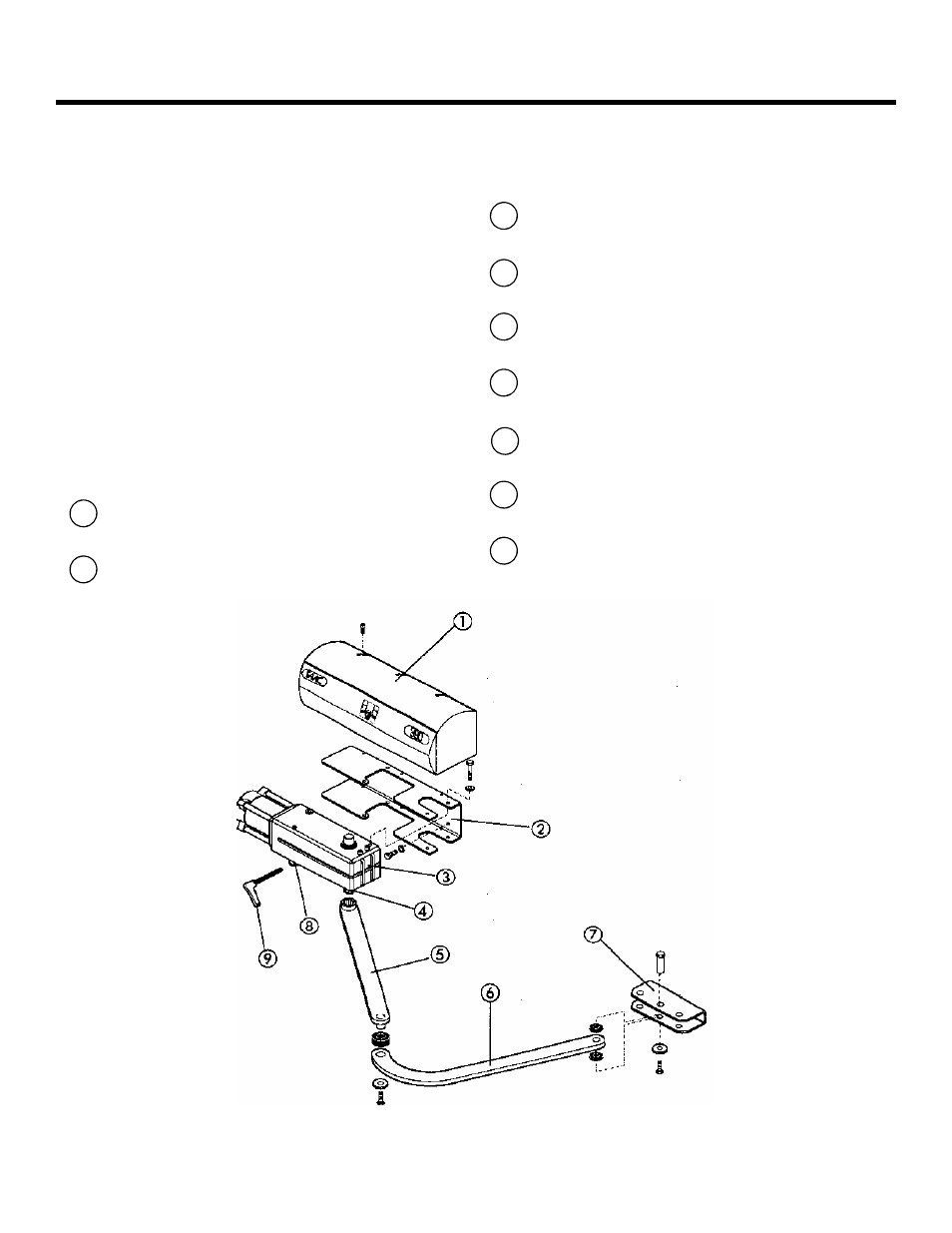

Figure 2. 390 Operator included parts.
1
2
3
4
5
6
7
8
9
