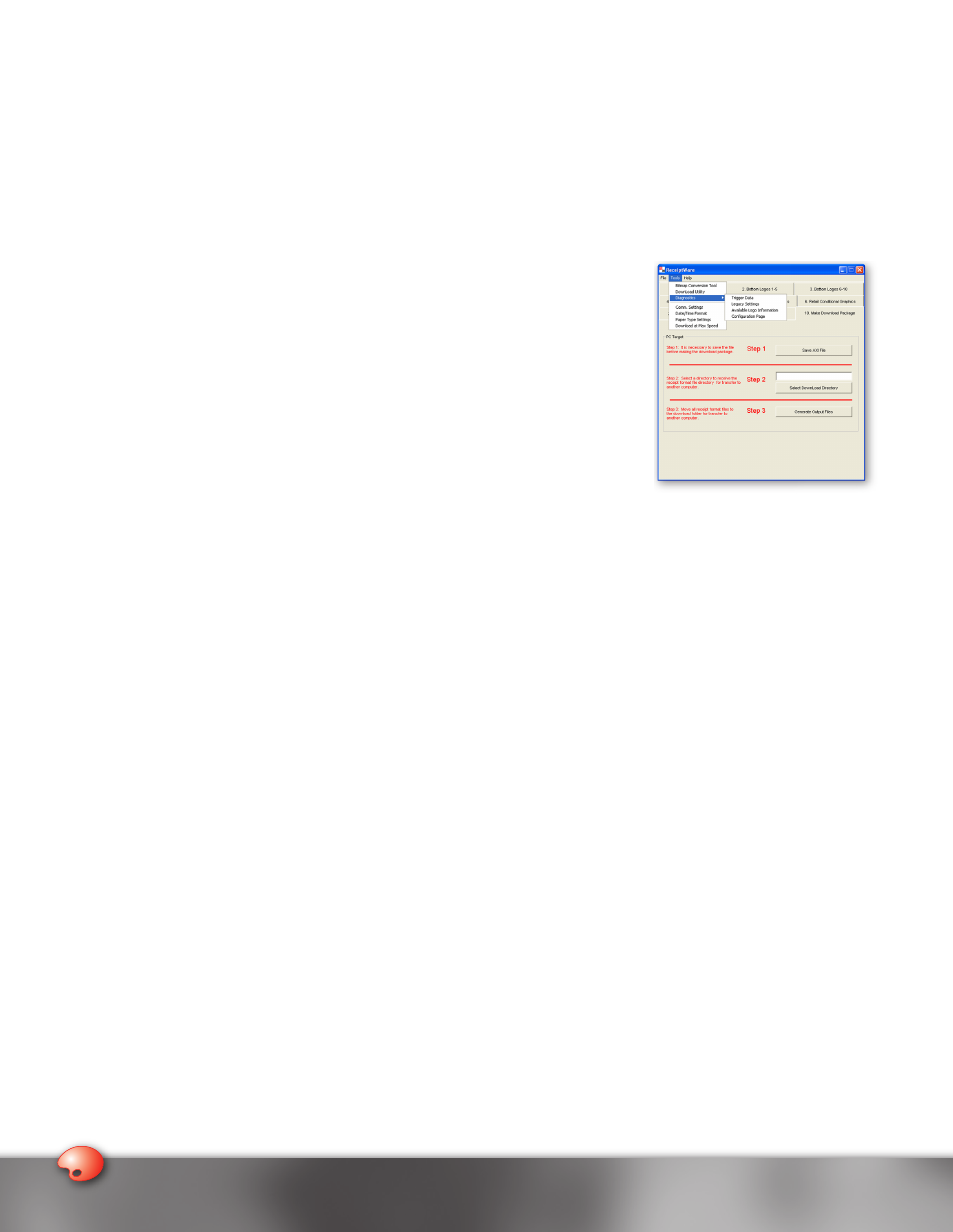

Legacy Settings

Legacy settings inform the user of the settings of the active legacy settings (Legacy Graphics and Text Attribute Switching).

Information includes:
1. Precut Logo – Indicates whether a Top Logo is specified.

i) Active
ii) Disabled

a. Dot rows before logo – Margin specified above the Top Logo
b. Dot rows after logo – Margin specified below the Top Logo

2. Post Cut Logo – Indicates whether a Bottom Logo is specified.

i) Active
ii) Disabled

a. Dot rows before logo – Margin specified above the Bottom Logo
b. Dot rows after logo – Margin specified below the Bottom Logo

3. Side Graphics – Indicates the print settings for Margin Messages.

i) Alternating
ii) Both sides
iii) Right margin only
iv) Left margin only

a. Start Delay – Indicates when the Margin Messages will start to print in dot rows relative to the start of the

print data

b. Repeat spacing – Indicates the spacing in dot rows between Margin Messages

4. Watermark Graphics – Indicates whether a Watermark is specified.

a. Repeat spacing – Indicates the spacing in dot rows between Watermark graphics

5. Attribute Substitution #1 – Indicates whether the first set of text attributes is set to be switched.

i) Active
ii) Disabled

a. Application Attribute Combination – Indicates the text attribute that is set to be switched
b. Replaced with – Indicates the text attribute that will replace the “Application Attribute Combination”

6. Attribute Substitution #2 – Indicates whether the second set of text attributes is set to be switched.

i) Active
ii) Disabled

i) Available Logo Information –
ii) Configuration Page –

c. Comm Settings – Allows you to specify or change the communication parameters
d. Paper Type Settings – Permits you to specify the paper type on which you will be printing. Options include: Type

0. – P310 Monochrome, Type 1. – P310RB, Type 4. – P320BB, Type 5. – P320RB, M770B, No Change
