Bottom Logo

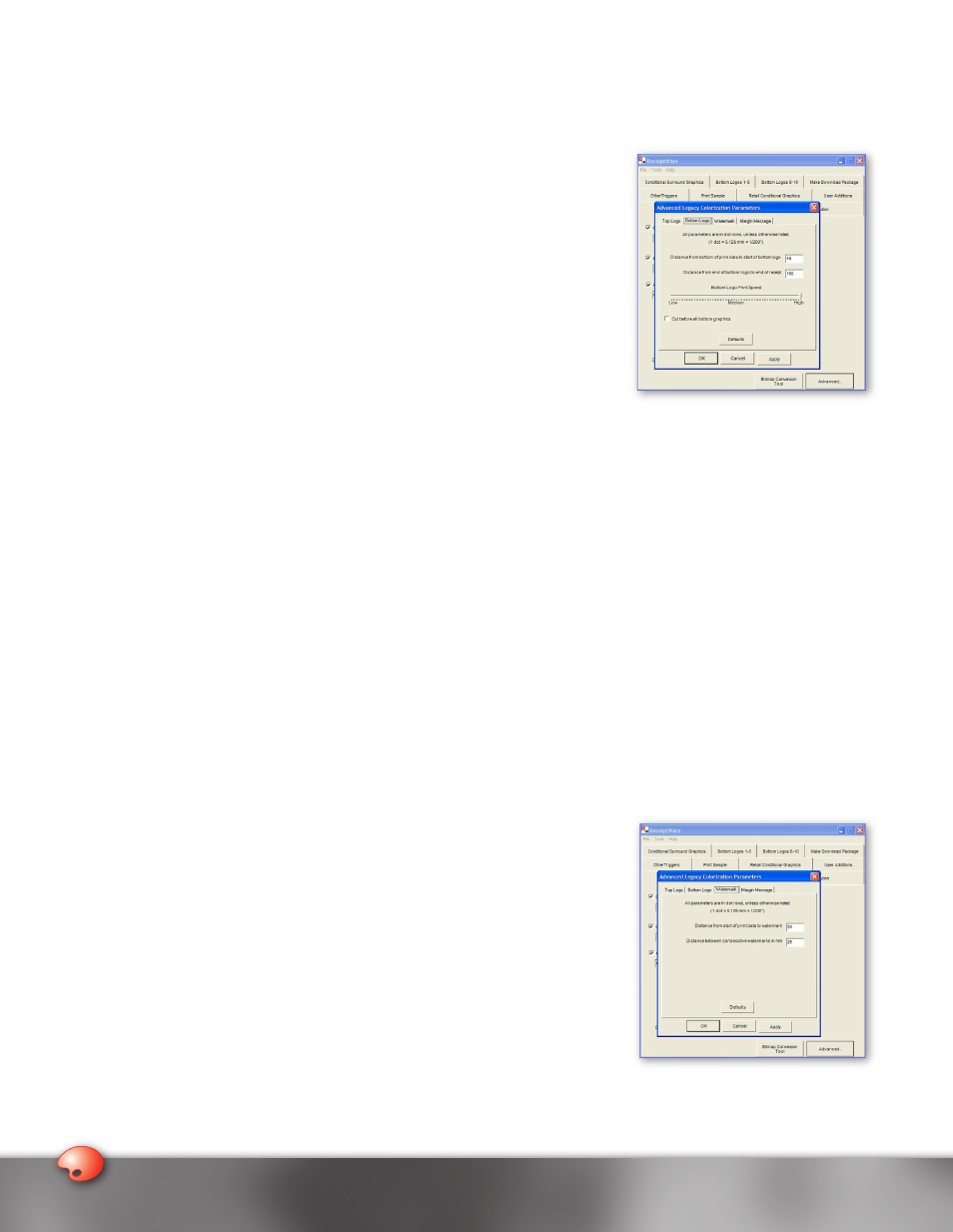

1. Bottom Logo spacing – Occasionally, you may want to change the spacing above and below the Bottom Logo(s). To
do this, there are two parameters to adjust: “Distance from the bottom of the print data to start of bottom logo” and
“Distance from end of bottom logo to end of receipt.”
a. “Distance from the bottom of the print data to start of bottom logo” – This
option allows you to adjust the margins above the Bottom Logo. The default
setting for this parameter is 48 dot rows or about a 0.25” (6.0 mm) margin.
Increase this value if you want a larger margin above the Bottom Logo, or
decrease it if you want to make the margin smaller. The range for this parameter
is 1 to 255 dot rows.
b. “Distance from end of bottom logo to end of receipt” – This option allows you to
adjust the margins below the Bottom Logo. The default setting for this parameter is
160 dot rows or about a 0.79” (20.0 mm) margin. Increase this value if you want a
larger margin below the Bottom Logo, or decrease it if you want to make the margin
smaller. The range for this parameter is 0 to 255 dot rows.
c. To apply your changes, click on the Apply button located on the bottom right-
hand side of the screen.
d. If you wish to restore either of these parameters to their original values, simply click on the Defaults button located
in the middle of the screen.
2. Bottom Logo print speed – Generally, printing logos at the printer’s maximum speed results in clear and sharp images.
However, complex multi-hued logos can sometimes degrade the level of print clarity. Adjusting or slowing print speed
for a complex graphic will improve its crispness.
a. To change printing speed for the Bottom Logo, adjust the Logo Print Speed scale located at the bottom of the
screen. Move the slider to the right of the scale to make the logo print faster or to the left to make it print slower.
Note: Changing the printing speed value will only effect the related graphic and not the printing speed of the rest of
the receipt.
b. To apply your changes, click on the Apply button located on the bottom right-hand side of the screen.
Watermark
1. Watermark spacing – There are two ways that you can change the print spacing of the Watermarks on your receipt:
“Distance from start of print data to watermark” and “Distance between consecutive watermarks in mm.”
a. “Distance from start of print data to watermark” – This parameter can be changed to adjust where the Watermark
will be printed relative to the start of the print data. The default setting for this
parameter is 50 dot rows or about 0.25” (6.0 mm) from the start of the print data.
Increase this value if you want the Watermark to print further from the start of
the print data, or decrease it if you want to make the distance shorter. The range
for this parameter is 1 to 255 dot rows.
b. “Distance between consecutive watermarks in mm” – This option allows you to
alter the spacing between Watermarks. The default setting for this parameter is
25 dot rows or about 1.0” (25 mm) between printed Watermarks. Increase this
value if you want to open the distance, or decrease the value if you want to close
it. The range for this parameter is 1 to 255 dot rows.
c. To apply your changes, click on the Apply button located on the bottom right-
hand side of the screen.
d. If you wish to restore either of these parameters to their original values, click on
the Defaults button located in the middle of the screen.
