Lift arm - with integral check chain slot – Kolpin WHS03 User Manual
Page 4

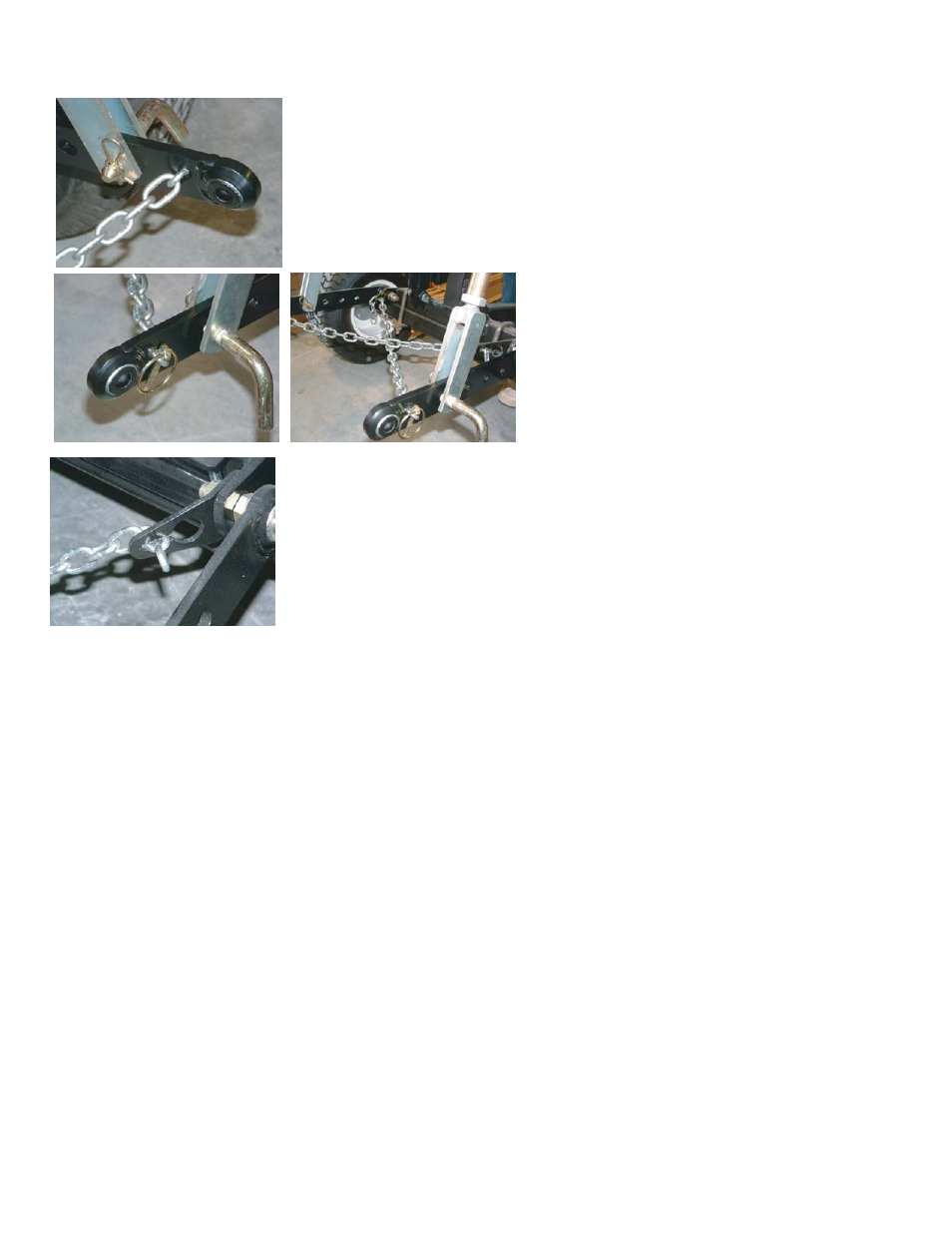

Implement side chain slot:
1. Place end link of check chain through slot in end of lift arm.
2. Secure with lynch pin.
Cross chains:
3. Crossing of chains prevents
implement from moving side to side.
Lift Arm - with integral check chain slot:
Securing chains into check chain bracket on main 3-point:
4. Insert end of chain in round hole, slide chain into slotted end.
