ICS 1008E/1016E Intercom Panel Instruction Manual 2 - 3

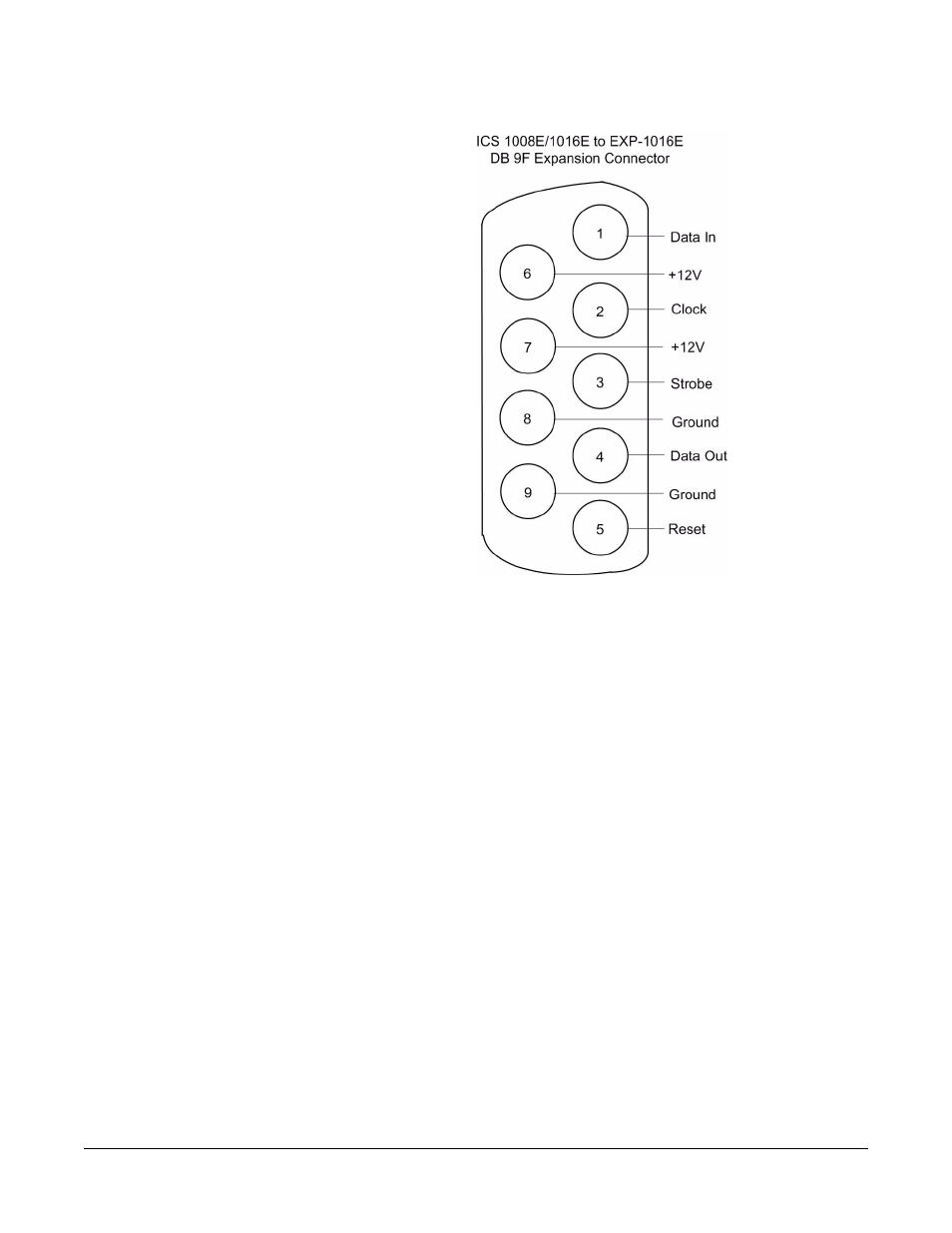

Figure 2-7: Pinout for Expansion Panel Connector
MAINS AC POWER
ICS-1016E/ICS-1008E
The panels have an external DC power supply with a removable AC
power cord. The power supply is “universal,” operating over a voltage
range of 90 to 260 VAC and 45 to 65 Hz. The maximum dissipation is
30 W. A bracket has been provided to mount this external supply, if
necessary.
EXP-1016E
The EXP-1016E receives its power from the ICS-1016E/ICS-1008E.
ADJUSTMENTS
ICS-1016E/ICS-1008E
The panels have identical rear-panel controls. They are:
• speaker mute level control
• page override level control
• headset microphone sidetone adjustment
