Clear-Com Communication Systems
ICS 1008E/1016E Intercom Panel Instruction Manual
1 - 9
• RJ-45 connector
• speaker mute level control
• page override level control
• headset microphone sidetone control
• headset microphone gain control
• panel microphone gain.

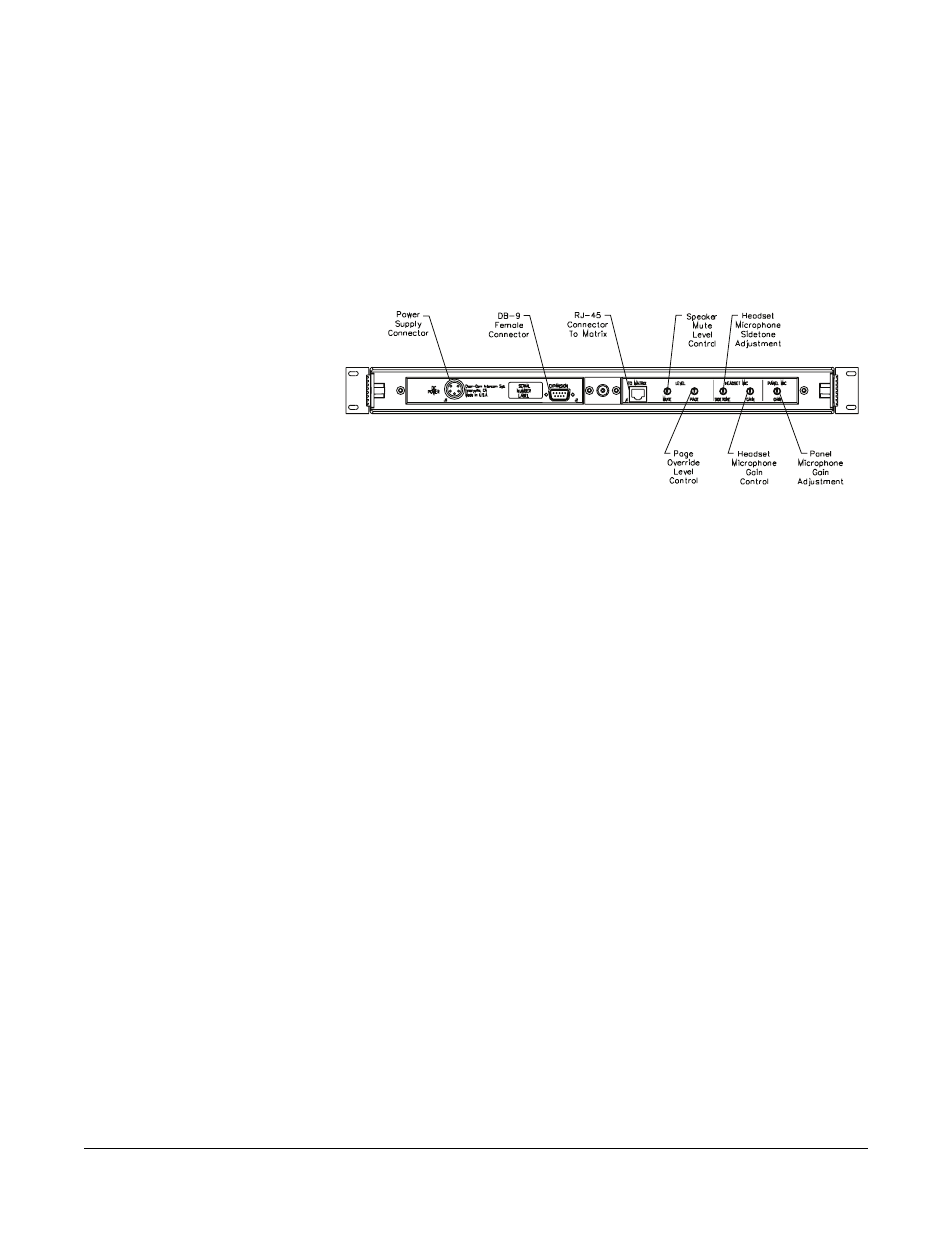

Figure 1-5: ICS-1016E/ICS-1008E Rear Panel
Power Supply Connector
The panels operate with DC power.
DB-9 Female Connector
The female DB-9 connector, labeled Expansion, is used to connect
either panel to an EXP-1016E.
RJ-45 Connector to Matrix
The RJ-45 connector connects the panel to the Matrix frame.
Speaker Mute Level Control
This knob adjusts the speaker level when any talk is active at the
panel. This function helps prevent possible feedback. The maximum
amount of muting is 15 dB below full volume. If the rear-panel control is
set below that level, then muting will have no effect. When shipped
from the factory, the mute level is adjusted to provide a -6dB
attenuation.
Page Override Level Control
This knob adjusts the page override level. Page Override is a special
function in the panel in which the intercom volume defaults to a preset
a value or the current front-panel volume control setting (whichever is
higher) when commanded to by the central matrix. Any fixed group can
be assigned the page-override function through the configuration
