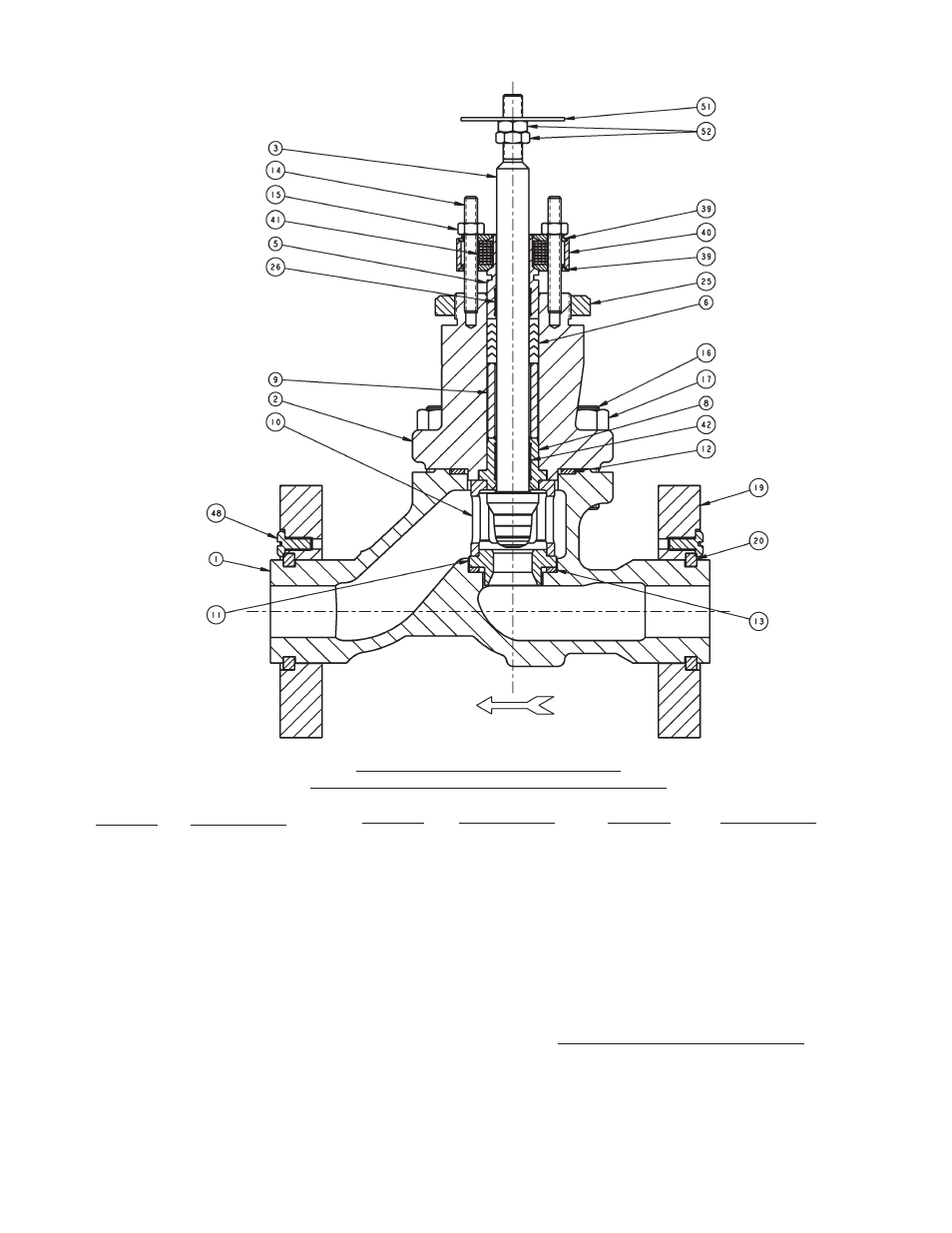

MODEL 988/989 BODY ASSEMBLY (BA)
External Live Loaded Packing — Metal Seated Design
ITEM NO. DESCRIPTION
1 Body
2 Bonnet
3 Plug & Stem Assembly
5 Packing Follower
6 Packing
8 Guide Bushing
9 Packing Spacer
10 Cage
11 Seat Ring (Metal or
Soft Seat)
ITEM NO. DESCRIPTION
12 Bonnet Gasket
13 Gasket (Seat Ring)
14 Stud
15 Hex. Nut
16 Bonnet Stud
17 Stud Nut
19 Flange (Body 150# or
300#)
20 Split Ring
23 Seat Retainer (Soft Seat)
ITEM NO. DESCRIPTION
24 Seat Insert (Soft Seat)
25 Yoke Nut
26 Follower Bushing
39 Retainer
40 Spacer
41 Belleville Spring
42 Bushing
48 Screw (Split Rings)
51 Indicating Washer
52 Stem Nuts
ITEMS NOT SHOWN DESCRIPTION
31 Pipe Plug (-26 Leak
Off Connection)
