Cashco SA5 User Manual
Page 12

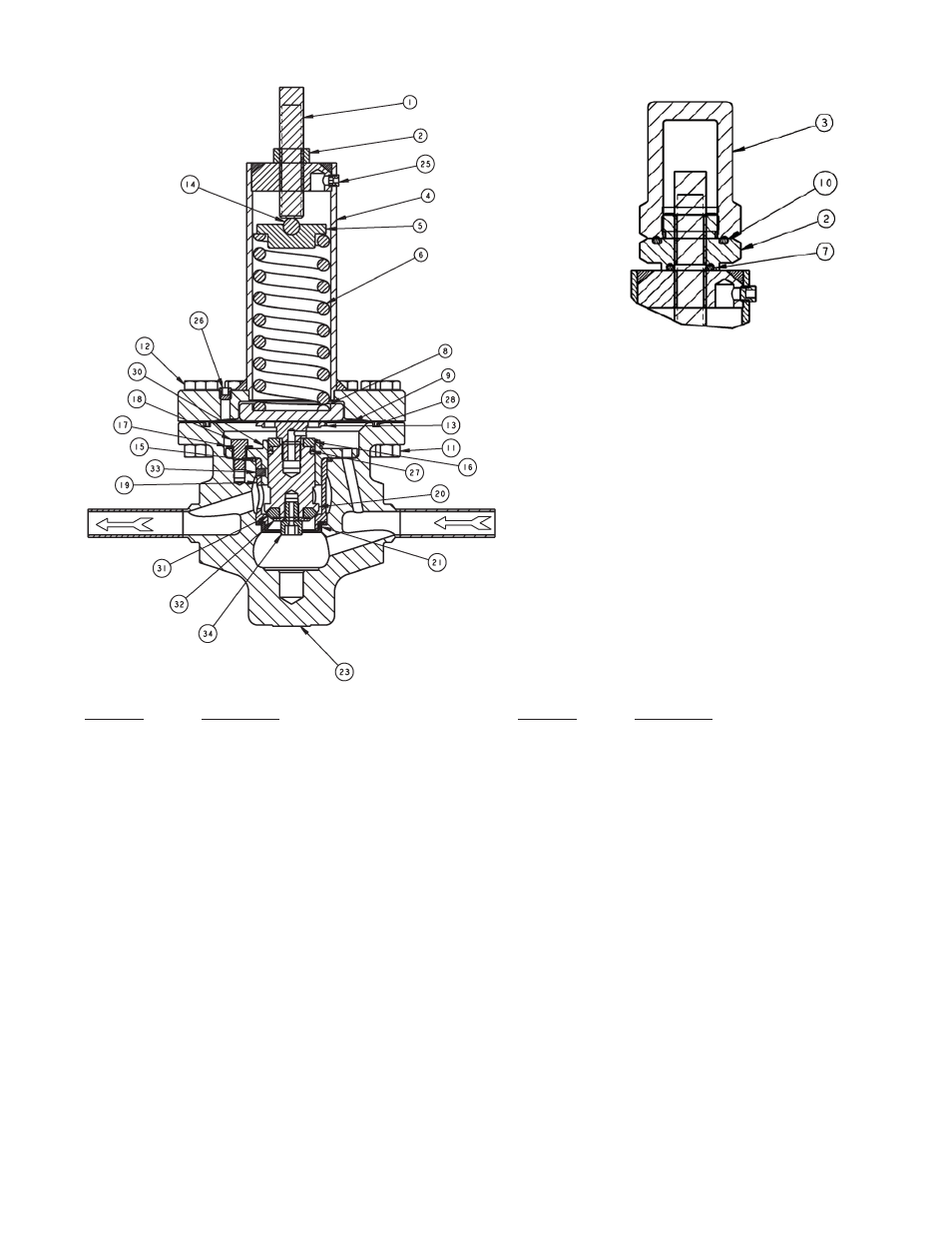

Figure 3:
Model CA5/SA5
Item No.
Description
1
Adjusting
Screw
2
Adjusting Screw Lock Nut
3
Closing
Cap
4
Spring
Chamber
5
Spring
Follower
6
Range
Spring
7
Nut
Seal
8
Upper Diaphragm Plate
9
* Diaphragm
10
Closing Cap Seal
11
Flange Bolt Nuts
12
Flange
Bolt
13
‡
Piston-Guide
Bearing
14
Ball
15
*
Cage O-ring Seal
16
Shim
17
Cage
Washer
18
Cage Cap Screw
19
Cage
20
Valve
Plug
21
* Seal
23
Body
25 / 26
Plug / Vent
27 *
Dynamic Side Seal
27.1 * Cap Seal
27.2 * O-ring Energizer
27.3 *
U-Cup Seal w/ energizer
28 *
Diaphragm Seal
30
Cage
Collar
31
Seat
Disc
32
Disc
Washer
33
Pin
34
Cap
Screw
* Recommended Repair Parts
‡
It is recommended that a special double-posted spanner
wrench fi tting be ordered for use in the main te nance of
the ITA. To order, see NOTE in Section IX, Parts Order-
ing Information.
Item No.
Description
Opt-1 - Closing Cap
