Cashco C-BPV User Manual
Page 11
IOM-C-BPV
11
Item No. Description
1
Body
2
Spring
Chamber
3
Pressure
Plate
4
Spring
Button
5
Adjusting
Screw
5.1
Adjusting Screw Cap
5.2
Pin
5.3
Adjusting
Screw
5.4
U-Cup
Seal
7
Spring
10
Quick Release Pin
(Lock
Open)
13
Clamp
14 Diaphragm
15
Pin (Quick Release)
16
Lever / Cam
18
Plug
Item No. Description
22
Guide
Post
22.1
Guide
Post
22.2
Cotter
Pin
22.3
Shim
22.4
Cap
22.5
Curved Disc Spring
23
Bearing (Seal Soft)
24
Base
(Slide)
25
Locknut
26
Set
Screw
27
Eye End (Nut)
28 Collar
29
Bearing
Plate
30
Shoulder
Screw
32
Spring
Pin
38
Spacer
Not Shown:
Item
No.
Description
6
Adjustment
Nut
8
Connector
9
Ball
Chain
11
Name
Plate
12
Drive
Screw
17
3A Symbol Plate
19
Load
Collar
20
Adapter
31
Adapter
33
Diaphragm
Cover
36
Handles

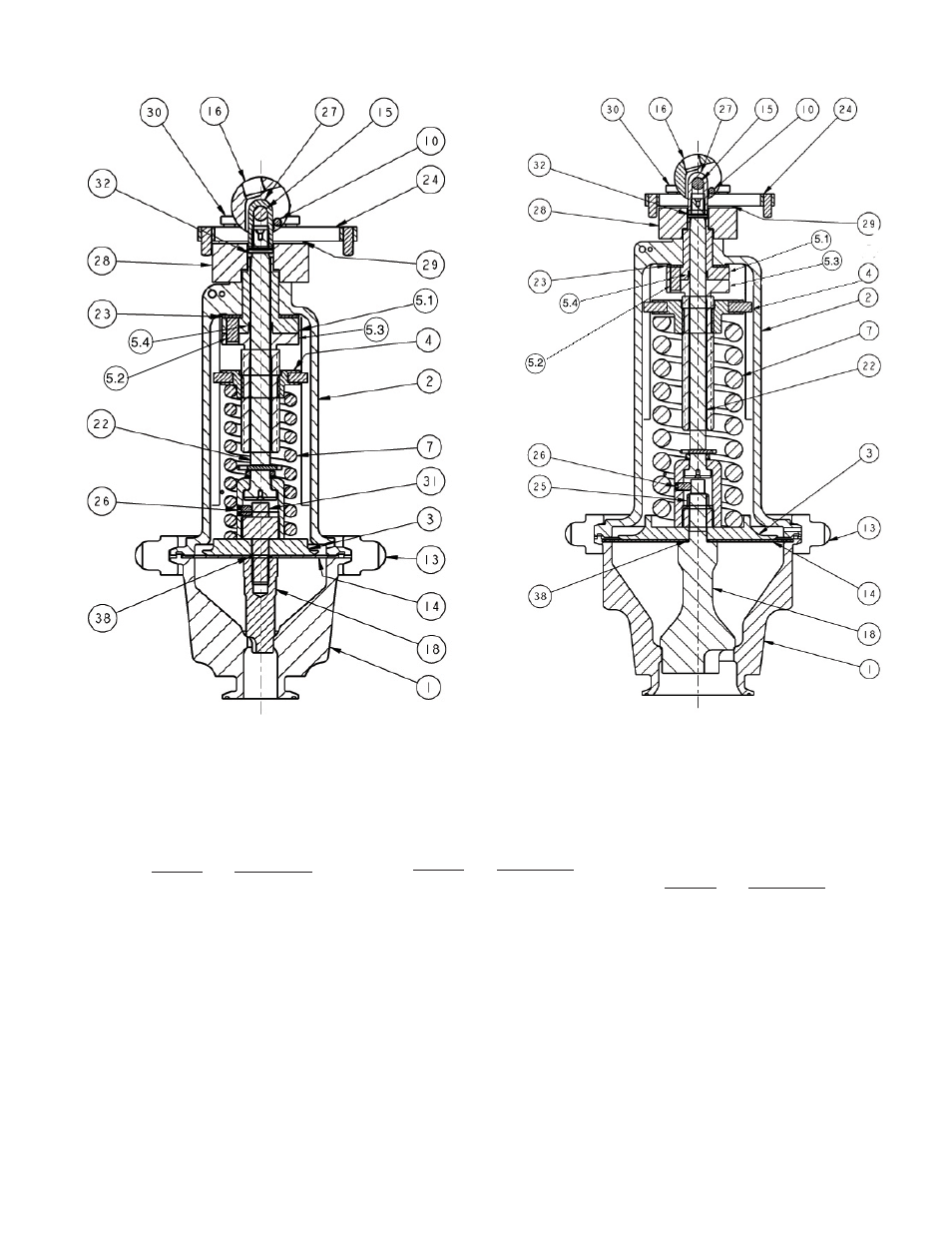

Model C-BPV
1-1/2" - 3" Full Port
Forged body with upper range spring (60-125) shown above.
Model C-BPV
3/4" - 1-1/2" Reduced Port
Forged body with upper range spring (60-125) shown above.
Figure 4:
NOTE: This product is to be installed with the spring chamber in the vertical position.
