IOM-C-BPV 10
Item No. Description
1 Body
2 Spring Chamber
3 Pressure Plate
4 Spring Button
5 Adjusting Screw
5.1 Adjusting Screw Cap
5.2 Pin
5.3 Adjusting Screw
5.4 U-Cup Seal
6 Adjustment Nut
7 Spring
13 Clamp
14 Diaphragm

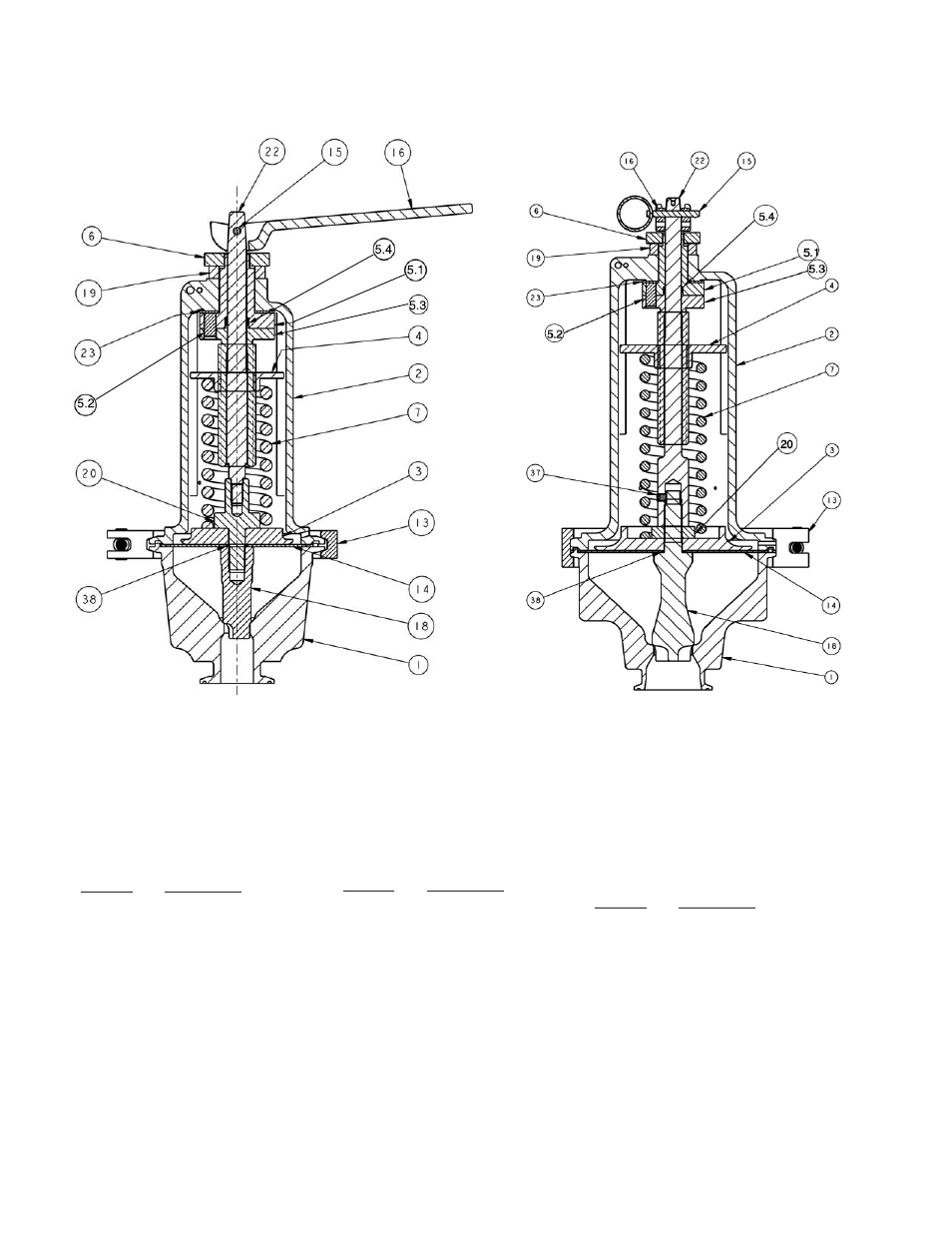

Model C-BPV
1-1/2" - 3" Full Port
Forged body with lower range spring shown above.
Item No. Description
15 Pin (Quick Release)
16 Lever / Cam
18 Plug
19 Load Collar
20 Adapter
22 Guide Post
22.1 Guide Post
22.2 Cotter Pin
22.3 Shim
22.4 Cap
22.5 Curved Disc Spring
23 Bearing (Seal Soft)
37 Set Screw
38 Spacer
Not Shown:
Item
No. Description
8 Connector
9 Ball Chain
10 Quick Release Pin (Lock Open)
11 Name Plate
12 Drive Screw
17 3A Symbol Plate
36 Handle
Model C-BPV
3/4" - 1-1/2" Reduced Port
Forged body with lower range spring shown above.
NOTE: This product is to be installed with the spring chamber in the vertical position.
Figure 3:
