Cashco 2171 - Manual (Page 8)

MODEL 2171
Repair
Item No. Description Kit B
1 Body
2 Spring Chamber
3 Pressure Plate
4 Spring Button
5 Adjusting Screw
or Handwheel Assy
6 Lock Washer
7 Pressure Plate Nut
8 Adjusting Screw Lock Nut
9 Nameplate
10 Diaphragm(s) ††
11 Diaphragm Gasket(s) ††
12 Piston ††
13 Piston O-ring ††
14 Seat O-ring ††
15 Seat Screw ††
16 Range Spring
17 Handwheel
18 Mounting Nut
20 Thrust Bearing
21 Upper Bearing Washer
22 Lower Bearing Washer
23 Diaphragm O-ring ††
(NOTE: Mount in Horizontal line with
Adjusting Screw down as shown.)

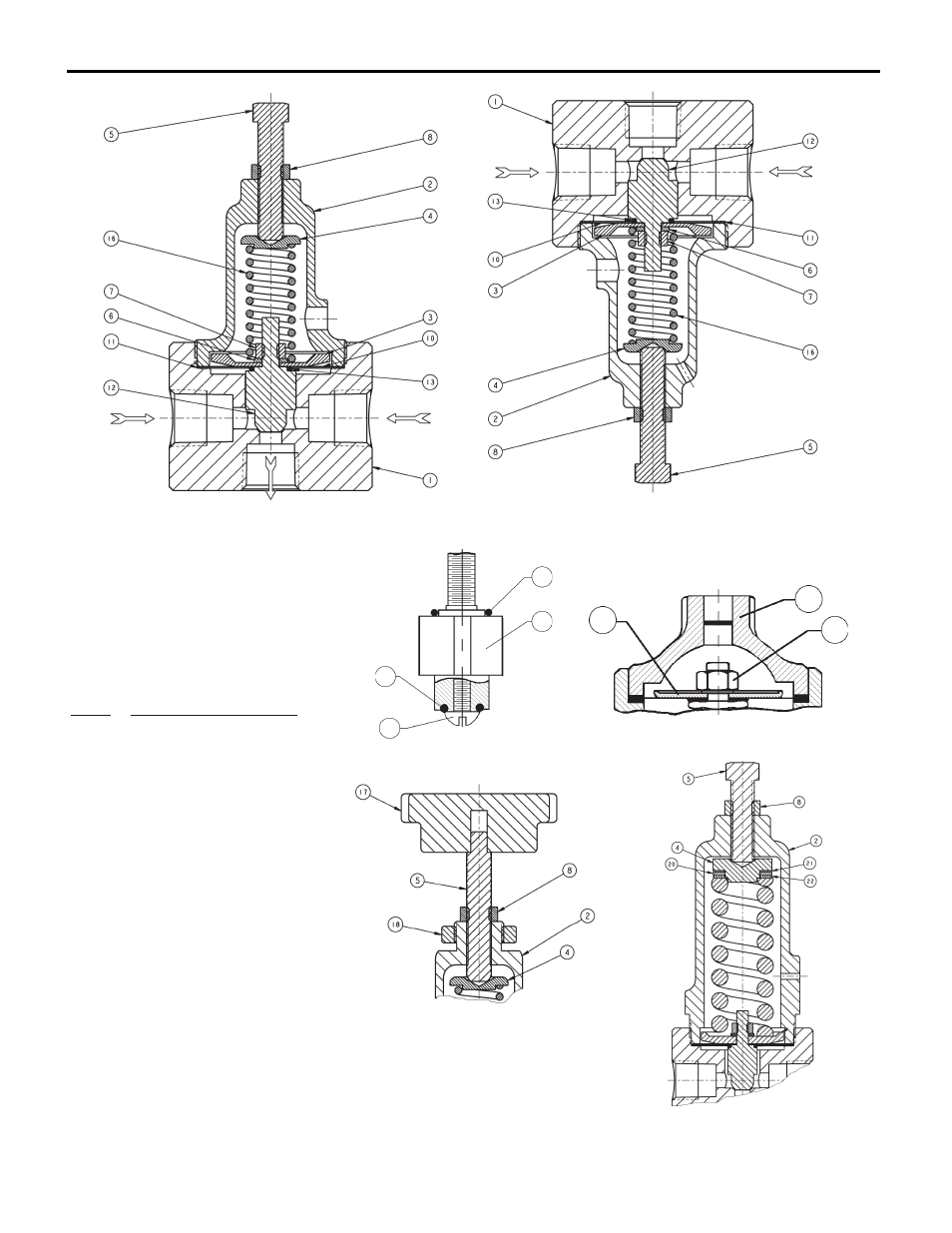

Figure 2: Option -36 Cryogenic, Model 2171,
Metal Seat Design
Figure 1: Basic Model 2171 with
Metal Seat Design
Option -20, Dome Loaded
Option -80, High Pressure
Spring Chamber Construction
Composition Seat Design
Option -22 Panel Mounting (Handwheel
portion is same for Option -2 Handwheel)
Spring Chamber Thread
3/4"-16 UNF-2A
2
3
7
13
14
15
12
vent
1/8" (DN6) Drain Hole
