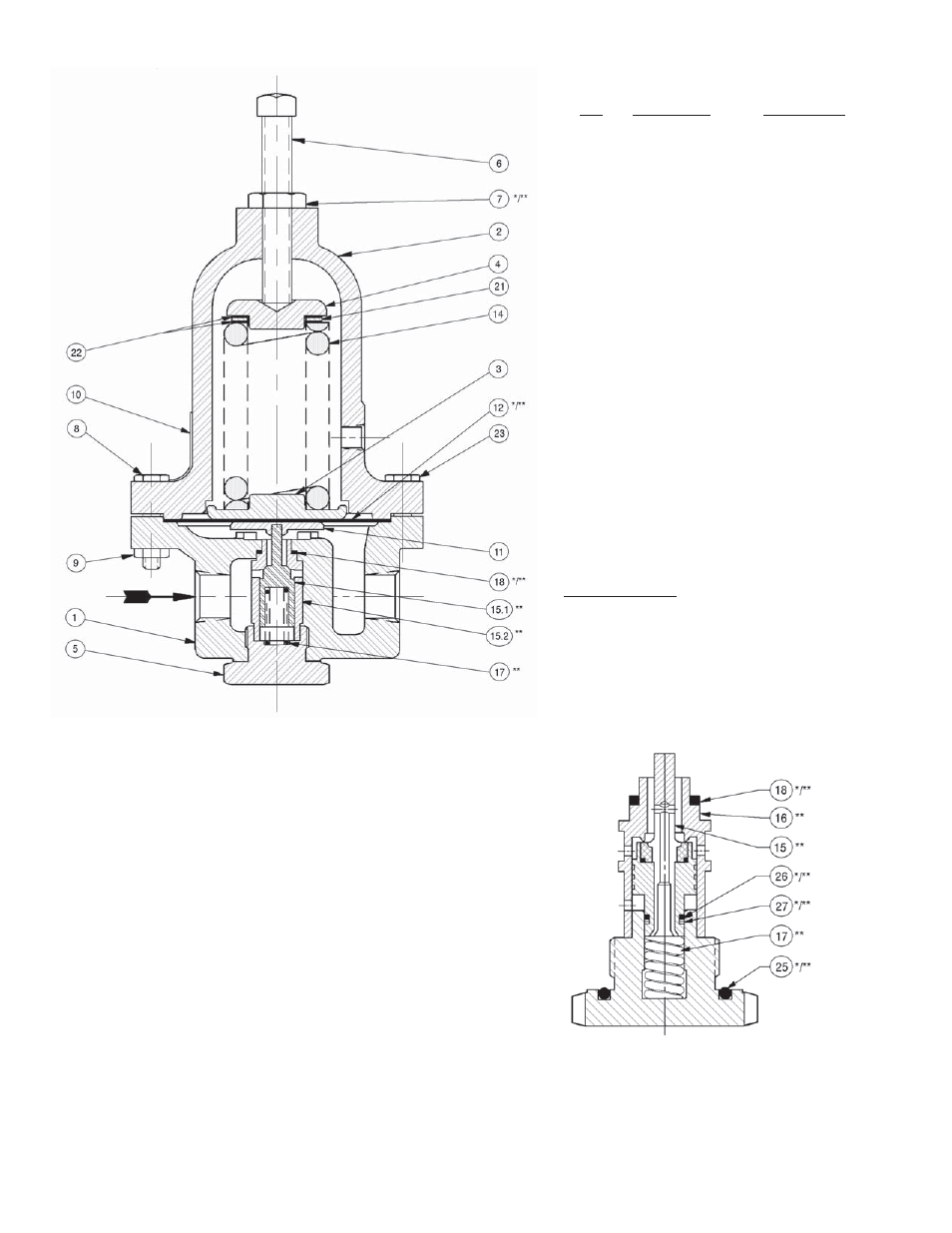

FIGURE 1
Model HP – Metal Seat
Item Repair Parts
No. Description Kit A Kit B
1 Body
2 Spring
Chamber
3 Pressure Plate
4 Spring Button
5 Body Cap
6 Adjusting Screw
7 Sealing Lock Nut * **
8 Flange Bolt
9 Flange Bolt Nut
10 Name Plate
11 Pusher Plate
12 Diaphragm * **
14 Range Spring
15 Piston/Comp Seat **
15.1 Piston - Metal **
15.2 Cylinder - Metal **
16 Cylinder – Comp **
17 Piston Spring **
18 Cylinder Gasket * **
21 Thrust Bearing
22 Bearing Washer
23 Flange Bolt (No Nut)
25 Body Cap O-Ring * **
26 Quad Ring * **
27 Backup Ring * **
Items Not Shown
13 Diaphragm Gasket used only *
with metal diaphragm(s) * **
24 Diaphragm Ring (1-1⁄2" size only)
28 Closing Cap
29 Closing Cap Gasket * **
