e

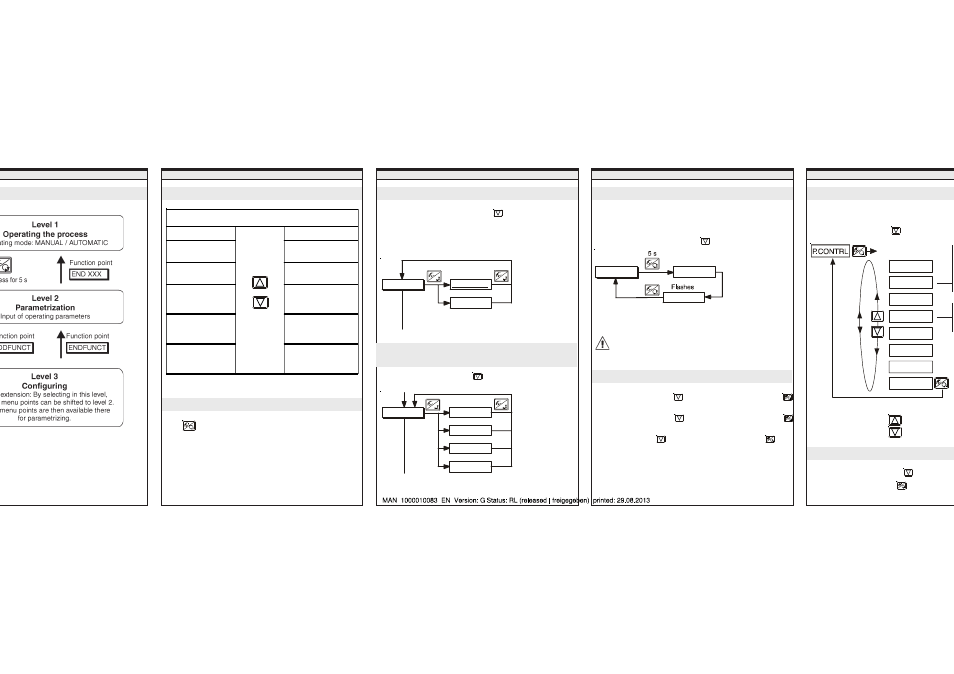

Indications in AUTOMATIC mode (level 1)
Select the function
ACT FUNC with the
key.
Select
FUNCSNGL for a drive with spring return. Select
FUNCDOUB for a double-acting drive.
The type of action is shown on the rating plate.
SETTINGS ON COMMISSIONING
Setting the type of action of the servo drive
Set the function
INPUT with the
key.
Input of the type of signal for external set-point
preselection
SETTINGS ON COMMISSIONING
SETTINGS ON COMMISSIONING
N COMMISSIONING
SETTINGS ON COMMISSIONING
Changing to configuration mode (Level 2)
Keep
key pressed for 5 seconds.
Inverted comma moves from left to right.
single-acting
double-acting
Current 4 ... 20 mA
Current 0 ... 20 mA
Voltage 0...10 V
Voltage 0 ... 5 V
Exiting the CONFIGURATION MODE
Select the function
END with the
key.
Confirm the selection with the
key.
Changeover to the operating mode takes place.
Setting up the process control (option)
Activating the process control (option) - Level 3
Select
ADDFUNC with the
key, confirm the selection with the
key and access the 3
rd
level.
Select
P.CONTRL with the
key, confirm the selection with the
key and obtain the function *
P.CONTRL..
Select
END with the
key, confirm the selection with the
key.
Starting the
AUTOTUNE
function
You start
AUTOTUNE, the program for the automatic
parametrizing of the TOP
Control Continuous by calling the
function
X.TUNE.
Select the function
X.TUNE with the
key.
COUNT:
Each individual place:
increment,
decrement.
Confirm total
value, also each
individual place
P.CO DBND
P.CO PARA
P.CO SETP
P.CO INP
P.CO FILT
P.CO SCAL
P.CO END
P.CO TUNE
The function
P.CONTRL has been shifted to the 2
nd
be parametrized there as follows:
Select
P.CONTRL. with the
key.
End of the
AUTOTUNE
phase.
X.ERR X - Indication on the occurrence of an error
TUNE X
TUNE END
X.TUNE
INPUT
INP 4’20A
INP 0’20A
INP 0’10V
INP 0’5V
ACT FUNC
FUNCDOUB
FUNCSNGL
No parametrizing of the process controller takes place through the
AUTOTUNE function.
Display / Indication
Position controller
Process controller
POS:
Actual position valve
PV:
Process actual value
CMD:
Set position valve
SP:
Process set-point
INP:
Input signal for set
position
POS:
Actual position of
valve
Temp:
Device internal
temperature
CMD:
Set position of valve
Temp:
Device internal
temperature
- Countdown from 5 to 0
- Indication of the currently
runing
AUTOTUNE
phase.
