7
Serial Communication
rS232 3.1.2. - module for Din-rail version
(item number: 667842)
22,4
31,5
4
8 7 9

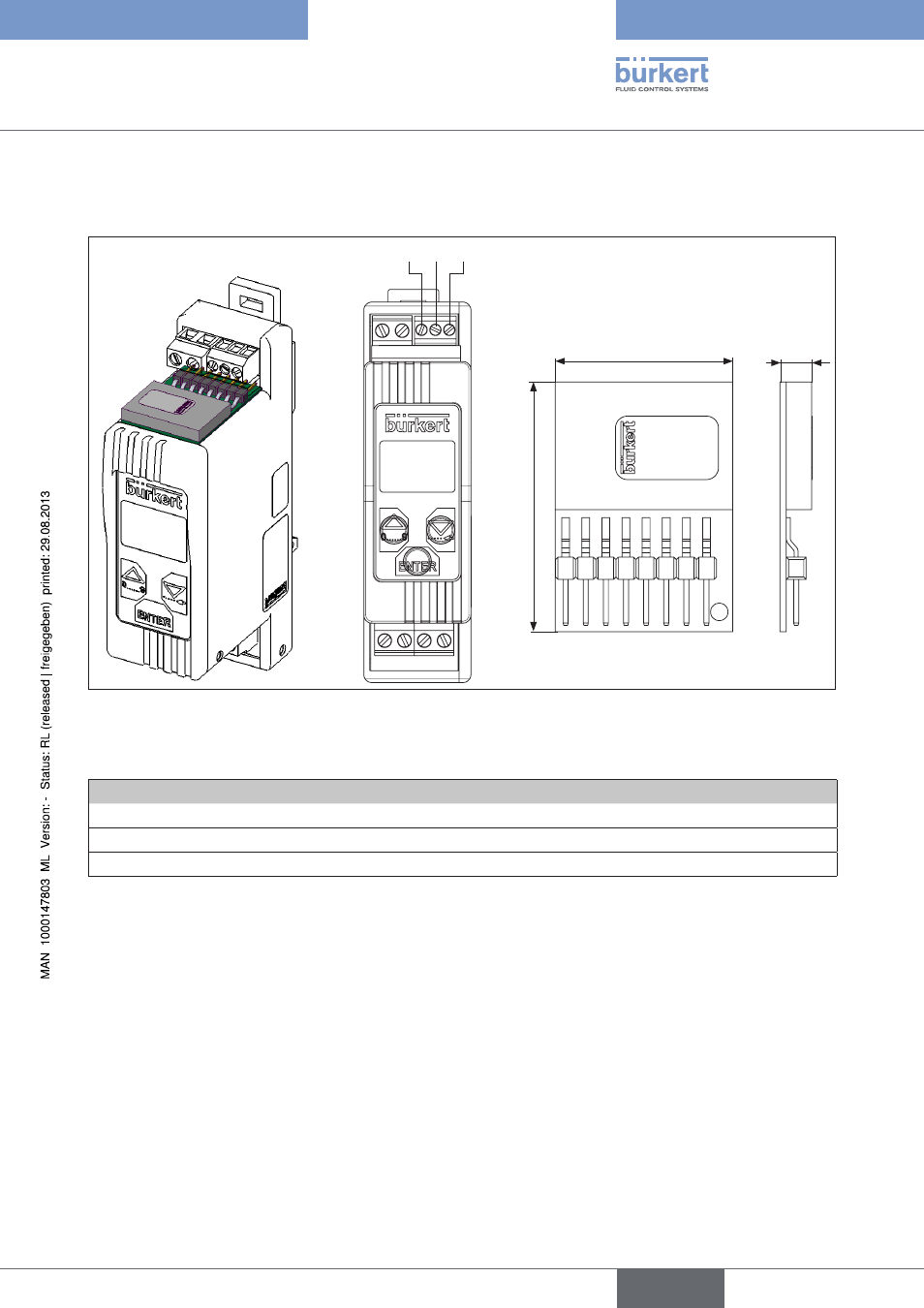

RS232 Fig. 2: - Module for DIN-rail version (667842)
Assignment of screw-type terminals
type 8605 - rS232 pc (SuB-D 9-pin plug)
RS232 Txd (terminal 7) Pin 2
RS232 Rxd (terminal 8) Pin 3
RS232 GNd (terminal 9) Pin 5
Assignment of screw-type terminals - Module for DIN-rail version - RS232 Table 2:
english
Typ 8605
