20
note!
Device will be damaged if the wrong tools are used!
Always use a wrench to tighten nut. If other tools are used
(e.g. pliers), the device may be damaged.
Observe torque!
(see table below)
Nut
O-ring
Core guide tube

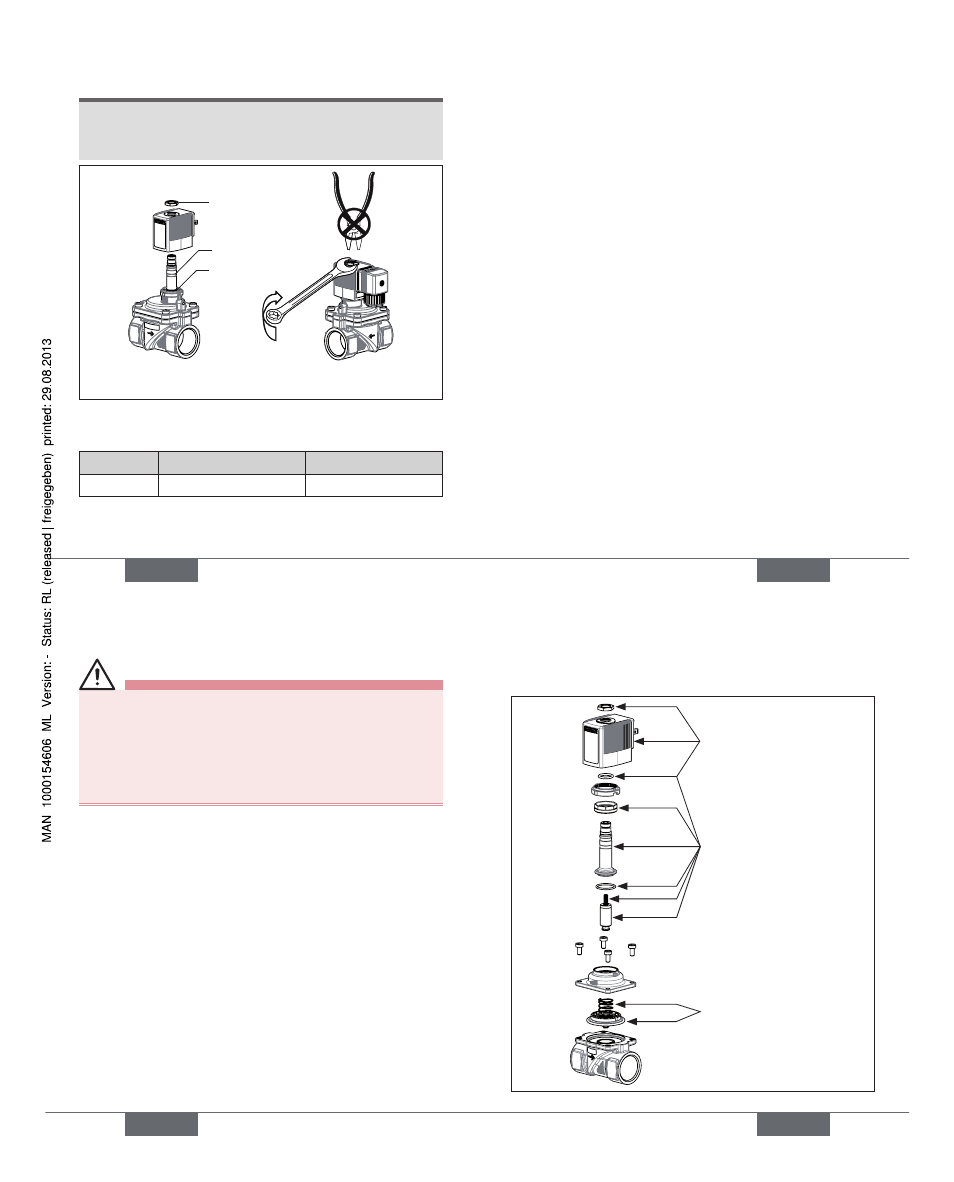

Fig. 3: Coil installation
Torque for fastening nut:
Coil type Coil width Torque [Nm]
AC10 32 mm or 40 mm 5 Nm
english 21
8.3. malfunctions
If malfunctions occur, check whether:
→
the device has been installed according to the
instructions,
→
the electrical and fluid connections are correct,
→
the device is not damaged,
→
all screws have been tightened,
→
the voltage and pressure have been switched on,
→
the pipelines are clean.
Valve does not switch
Possible cause:
• Short circuit or coil interrupted,
• Core or core area dirty.
• Medium pressure outside the permitted pressure range.
Valve does not close
Possible cause:
• Internal space of the valve is dirty.
• Small control bore in the diaphragm blocked.
english
22
9. sparE parTs
Caution!
Risk of injury and/or damage by the use of incorrect
parts!
Incorrect accessories and unsuitable spare parts may cause
injuries and damage the device and the surrounding area.
• Use original accessories and original spare parts from
Bürkert only.
9.1. Ordering spare parts
Replacement part sets
When ordering replacement part sets, quote the sets SET 1,
SET 3 or SET 7 and the identification number of the device.
• See replacement part sets
9.2. and 9.3
• The identification number of the device can be found on
the type label. See also chapter “6.2. Type label”.
english 23
9.2. Overview of replacement part
sets Type 6203 EV, dn 10,
dn 13
Coil set
SET 1
Wearing-parts
set SET 3
Plunger tube set
SET 7
Fig. 4: Replacement part sets Type 6203 EV
english
Type 6203 EV
