11
Technical data
6.4.1. Rating plate
EX - Code
Protection class / Temperature class
IEC EX - Approval number
Identification number of the coil
Serial number of the coil
Coil type, Voltage, Power
II2 G Ex em II T4/T5/T6
IEC Ex PTB 07.0021X
II2 D IP65 T=135°C
S/N XXXXX
D-74653 Ingelfinge
n
XXXXXXX
AC10-Z3-5 24V ~ 7W
W22LS

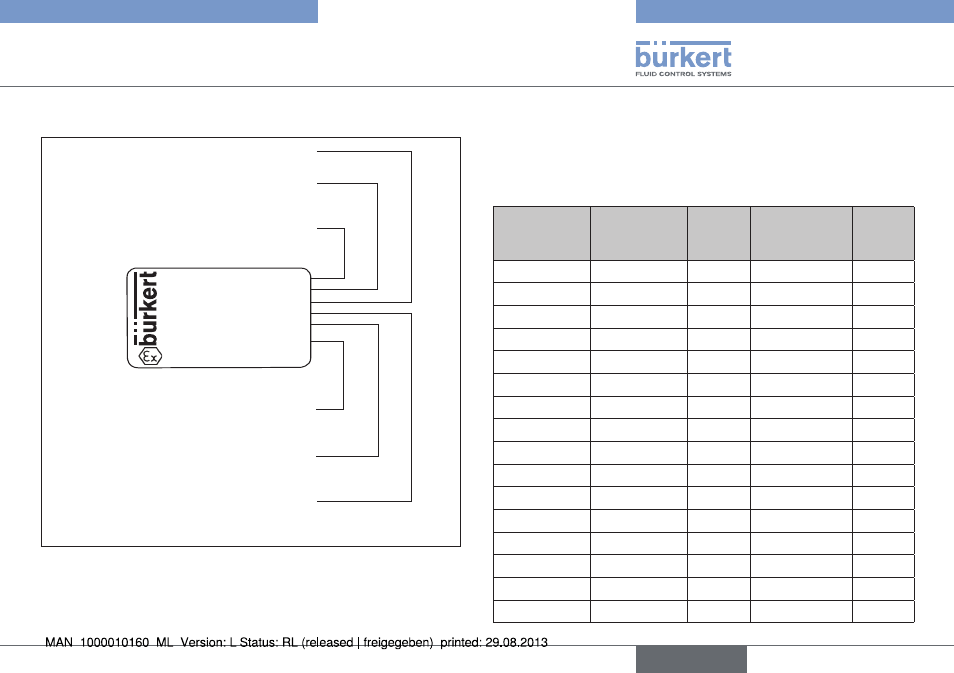

Fig. 2: Description of the rating plate
6.5. Electrical data
6.5.1. Coils for individual assembly
Universal current, nominal voltage 12 ... 400 V, frequency 0 ... 60 Hz
Coil type Rated current
[A]
Power
limit
[W]
Max. permitted
ambient tem-
perature [°C]
Tempe-
rature
class
AC10-5-PD47 0.68 ... 0.02 7 -30 ... +60 T4
AC10-5-PD48 0.33 ... 0.01 4 -30 ... +50 T5
AC10-5-PD49 0.25 ... 0.007 3 -30 ... +60 T5
AC10-5-PD50 0.25 ... 0.007 3 -30 ... +40 T6
AC10-5-PD51 0.19 ... 0.005 2.25 -30 ... +50 T6
AC10-5-PD52 0.114 ... 0.003 1.25 -30 ... +60 T6
AC10-6-PD53 0.8 ... 0.02 9 -30 ... +60 T4
AC10-6-PD54 0.31 ... 0.009 3.5 -30 ... +60 T5
AC10-6-PD55 0.16 ... 0.005 1.8 -30 ... +60 T6
AC10-4-PD56 0.35 ... 0.01 4 -30 ... +50 T5
AC10-4-PD57 0.25 ... 0.007 3 -30 ... +60 T5
AC10-4-PD59 0.13 ... 0.003 1.5 -30 ... +60 T6
AC10-5-PD60 0.68 ... 0.02 7 -40 ... +60 T4
AC10-5-PD61 0.33 ... 0.01 4 -40 ... +50 T5
AC10-5-PD62 0.25 ... 0.007 3 -40 ... +60 T5
AC10-5-PD63 0.25 ... 0.007 3 -40 ... +40 T6
english
PTB 00 ATEX 2129 X
