6.1.2. Type label approval
(depending on version)
Register number
Permitted ambient temperature
Max. permitted medium temperature
T med. Max. 160°C
T Umg. -15°C bis 60°C
Reg.Nr. XXXXX
0036
Inspection body
Certification mark

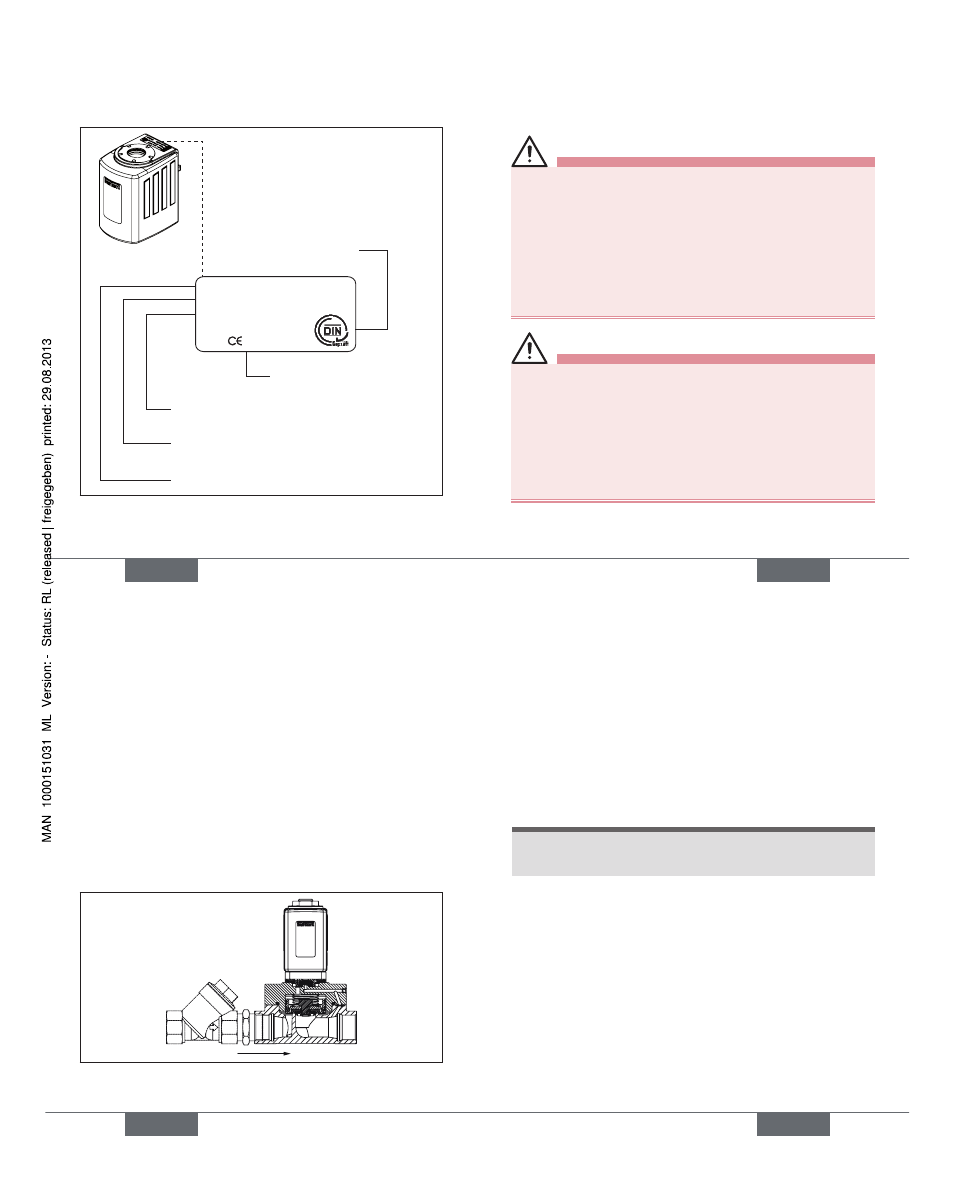

Fig. 2: Location and description of the additional plate
english 13
7. iNsTallaTiON
7.1. safety instructions
Danger!
Risk of injury from high pressure in the system!
• Before loosening the lines and valves, turn off the
pressure and vent the lines.
Risk of injury due to electrical shock!
• Before reaching into the system , switch off the power
supply and secure to prevent reactivation!
• Observe applicable accident prevention and safety
regulations for electrical equipment!
Warning!
Risk of injury from improper installation!
• Installation may only be carried out by authorized tech-
nicians with the appropriate tools!
Risk of injury from unintentional activation of the
system and an uncontrolled restart!
• Secure system from unintentional activation.
• Following assembly, ensure a controlled restart.
english
14
7.2. before installation
Installation position:
Installation can be in any position.
Preferably: Drive at the top.
→
To ensure that the safety shut-off device functions reliably,
check the pipelines for dirt and clean if required.
Dirt filter:
• For orifice DN 6:
A dirt filter is installed in the valve inlet.
• For orifices DN 13 and DN 20:
A dirt filter (≤ 500 μm) must be installed before the valve
inlet (see
Fig. 3).
Fig. 3: Installation of the dirt filter
english 15
7.3. installation
→
Clean pipelines.
→
Only use new seals.
→
Hold the device with a suitable tool (open-end wrench)
on the housing and screw into the pipeline.
→
Observe direction of flow:
From 1 → 2 (from P → A) or direction of arrow on the
housing.
note!
Caution risk of breakage!
• Do not use the coil as a lifting arm.
english
