General Hazardous Situations.
To prevent injuries:
• Ensure that the system cannot be activated unintentionally.
• Installation and maintenance work may only be carried
out by authorized technicians with the appropriate tools.
• After an interruption in the power supply, ensure that the
process is restarted in a defined or controlled manner.
• The device may be installed and operated only when in
a perfect condition and in consideration of the operat-
ing instructions for the valve and furnace.
• The general rules of technology must be observed for
application planning and operation of the device.
Failure to observe this operating manual and its
operating instructions as well as unauthorized tam-
pering with the device release us from any liability
and also invalidate the warranty covering the device
and accessories!
english 9
5. geNeral iNfOrmaTiON
5.1. contact address
germany
Bürkert Fluid Control Systems
Sales Center
Christian-Bürkert-Str. 13-17
D-74653 Ingelfingen
Tel. + 49 (0) 7940 - 10 91 111
Fax + 49 (0) 7940 - 10 91 448
E-mail: [email protected]
international
Contact addresses can be found on the final pages of the
printed operating instructions.
And also on the internet at:
www.burkert.com
5.2. Warranty
The warranty is only valid if the device is used as intended in
accordance with the specified application conditions.
5.3. information on the internet
The operating instructions and data sheets for Type 5406 be
found on the Internet at:
www.burkert.com
english
10
6. TechNical DaTa
The following values are indicated on the type label:
• Ambient and medium temperature, voltage
1)
(tolerance ±10%), kind of current, pressure
1) If used in combination with a return flow valve connected electrically
in series, the voltage value on the type label is half the respective
mains voltage.
Materials
Housing:
DN 6, DN 13: Brass
DN 20: Stainless steel
Seat seal: PTFE (E)
Housing seal: FKM (F)
Coil jacket: Epoxy
Media
Heating oils DIN 51603 Part 1-6 at a viscosity
1.6 ... 76 cST (other media by arrangement with the
Bürkert sales office)
Operating principle 2/2-way valve
A (NC)
P
A
Protection class: IP65 nach EN 60529 mit
zugelassener Gerätesteckdose nach
DIN 175301-803
english 11
6.1. Type label
6.1.1. standard type label
Housing material
Seal material
Orifice
Id. Number
Voltage, Frequency, Output
Connecting thread, Nominal
pressure, Protection class
5406 NC 6,0 EF MS
XXXXXXX W1X LU
110-120V 50Hz 20W
00YYYYYYY
G 1/4 P N 1 - 30 bar IP65
Operating principle
Type
Customer article number (optional)

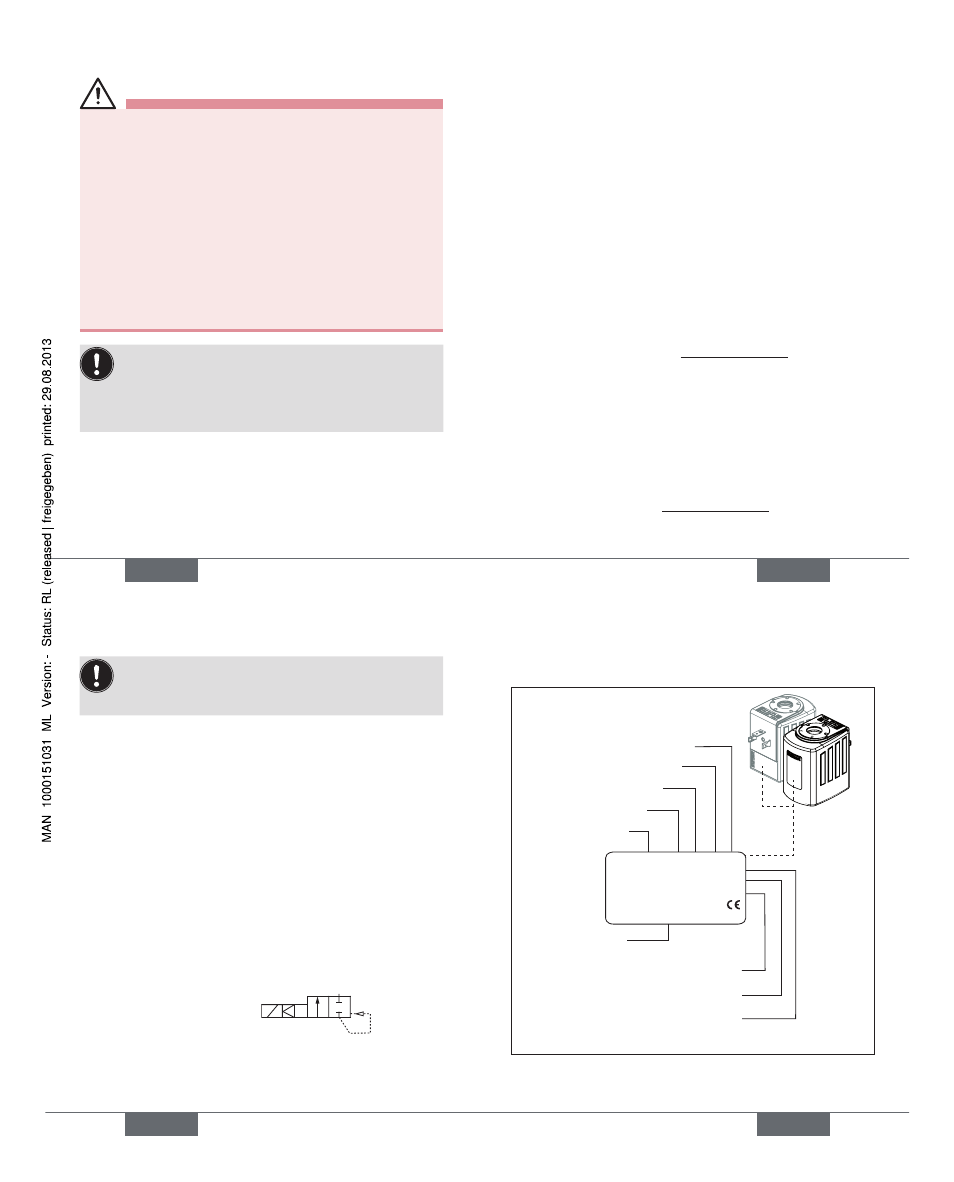

Fig. 1: Location and description of the type label
english
Type 5406
