Angle α: 15 °– 35°
Inclination to the line axis 1° – 5°
Mark
α

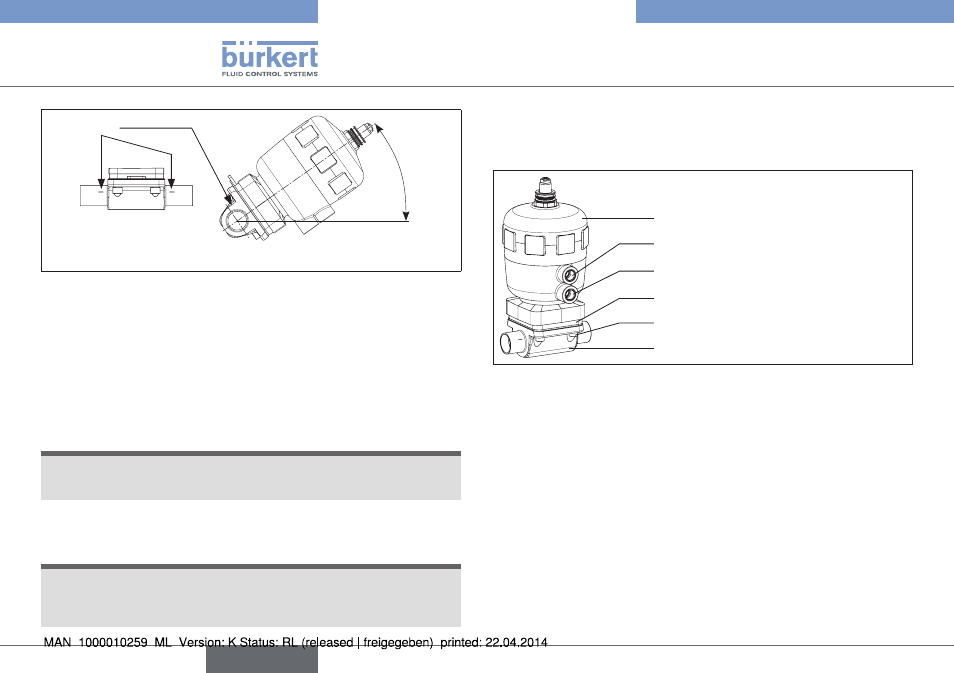

Fig. 16: Installation position for self-drainage of the body
7.2.3 preparatory work
→
Clean pipelines (sealing material, swarf, etc.).
→
Support and align pipelines.
devices with Vg/Vs/Va welded body:
noTe!
damage to the diaphragm or the actuator!
▶ Before welding in the body, remove the actuator.
Remove the actuator from the valve body:
noTiCe!
damage to the diaphragm or the seat contour!
▶ When removing the actuator, ensure that the valve is in open
position.
→
Control function A pressurize the lower pilot air port with com-
pressed air (5 bar): valve opens.
→
Remove actuator with diaphragm by loosening the body screws.
Actuator
Valve body
Lower pilot air port
Upper pilot air port
Body screws (4x)
Diaphragm
Fig. 17: Installation
20
Installation
english
Type 2730 / 2731 / 2731K
