Brooks ® Model SLA5840
1-3
Section 1 Introduction Installation and Operation Manual
X-PR-SLA5800-RT-eng
Part Number: 541B120AAG
August, 2009
Performance Characteristics: Pressure
Pressure Ranges
Dependent upon remote sensor transducer, maximum 1500 psig.
External Sensor Input
Suitable for pressure sensors with maximum 0-10 Vdc output signals.
Pressure Control Range
100:1 for elastomer valve seat
Pressure Settling Time
Less than 1 second typical for a 20-100% setpoint step with maximum 2%
overshoot. Actual pressure response highly dependent on system design.
RATINGS:
Operating Pressure
1500 psig maximum
(PED) Pressure Equipment Directive 97/23/EC:
Equipment falls under Sound Engineering Practice (SEP)
Leak Integrity
Inboard to Outboard: 1x10
-9 atm scc/sec Helium max.
Ambient Temperature Limits
Operating: 0°C to 60°C (32°F to 140°F)
Non-Operating: -25°C to 100°C (-13°F to 212°F)
Fluid Temperature Limits
0°C to 65°C (32°F to 149°F)
Physical Characteristics:

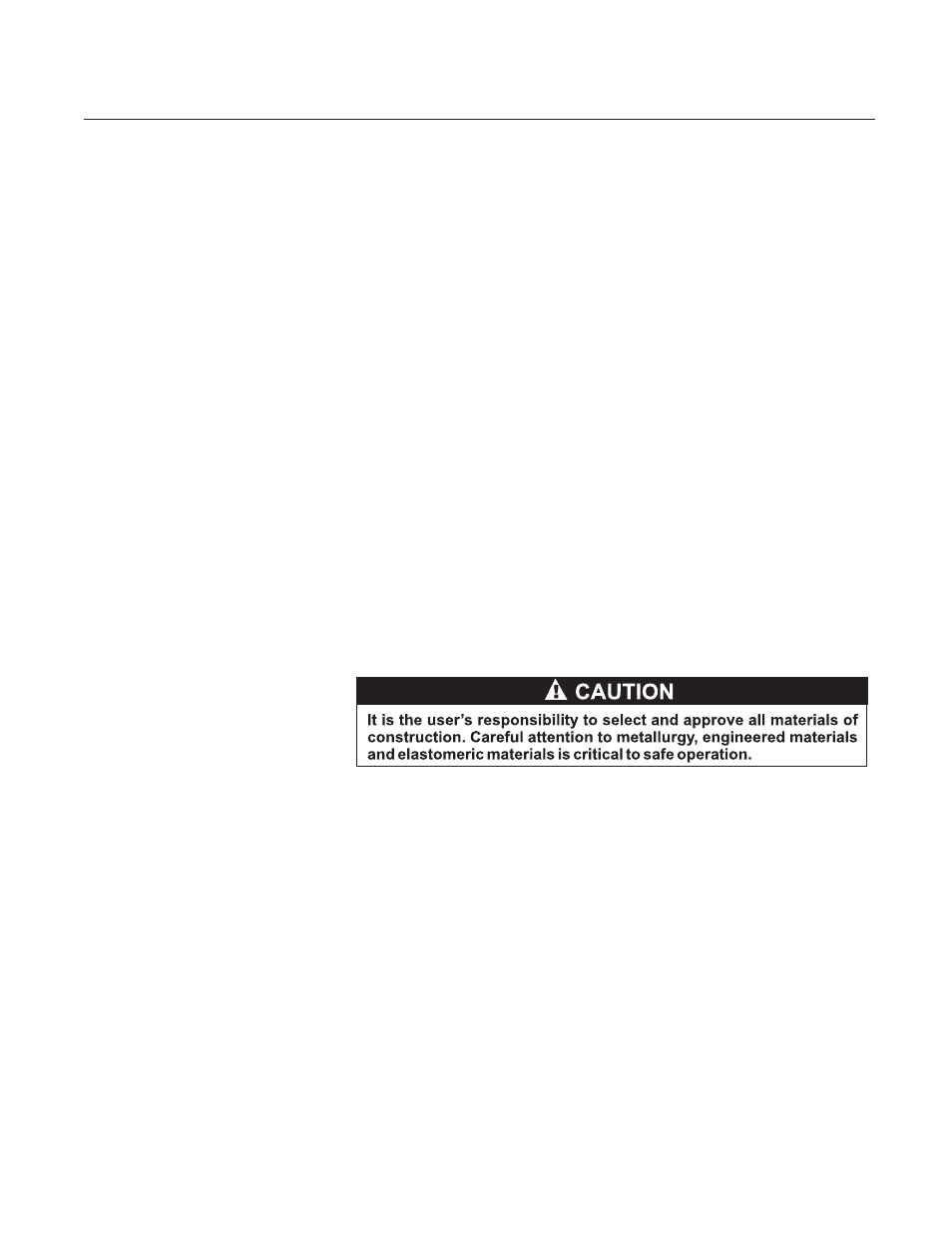

Materials of Construction
316L Vacuum Arc Remelt (VAR), 316L, and high-alloy ferritic stainless
steel.
Valve Seat: fluoroelastomers,Buna-N, Kalrez
®
External/internal seals: Viton ® fluoroelastomers, Buna-N or Kalrez ®
Internal Wetted Surface Finish: 32 Ra
Outline Dimensions
Refer to Figures 1-1 & 1-2.
Process Connections
Refer to Figures 1-1 & 1-2.
Electrical Characteristics:
Electrical Connections
Analog I/O option: 15-pin, male
Digital I/O DeviceNet option: 5-pin Micro-Connector male.
Power Supply Voltage
Analog I/O option: +15 Vdc, ±5%
(traditional -15 Vdc pin is ignored)
Digital I/O DeviceNet option: 11 - 25Vdc
