Installation and Operation Manual
X-SolidSense II-PT-eng
Part Number 541B160AAG
July, 2011
2-8
Section 2 Installation
SolidSense II ® Series
2-9-2 Non-Incendive Field Wiring 0-5 Vdc
.

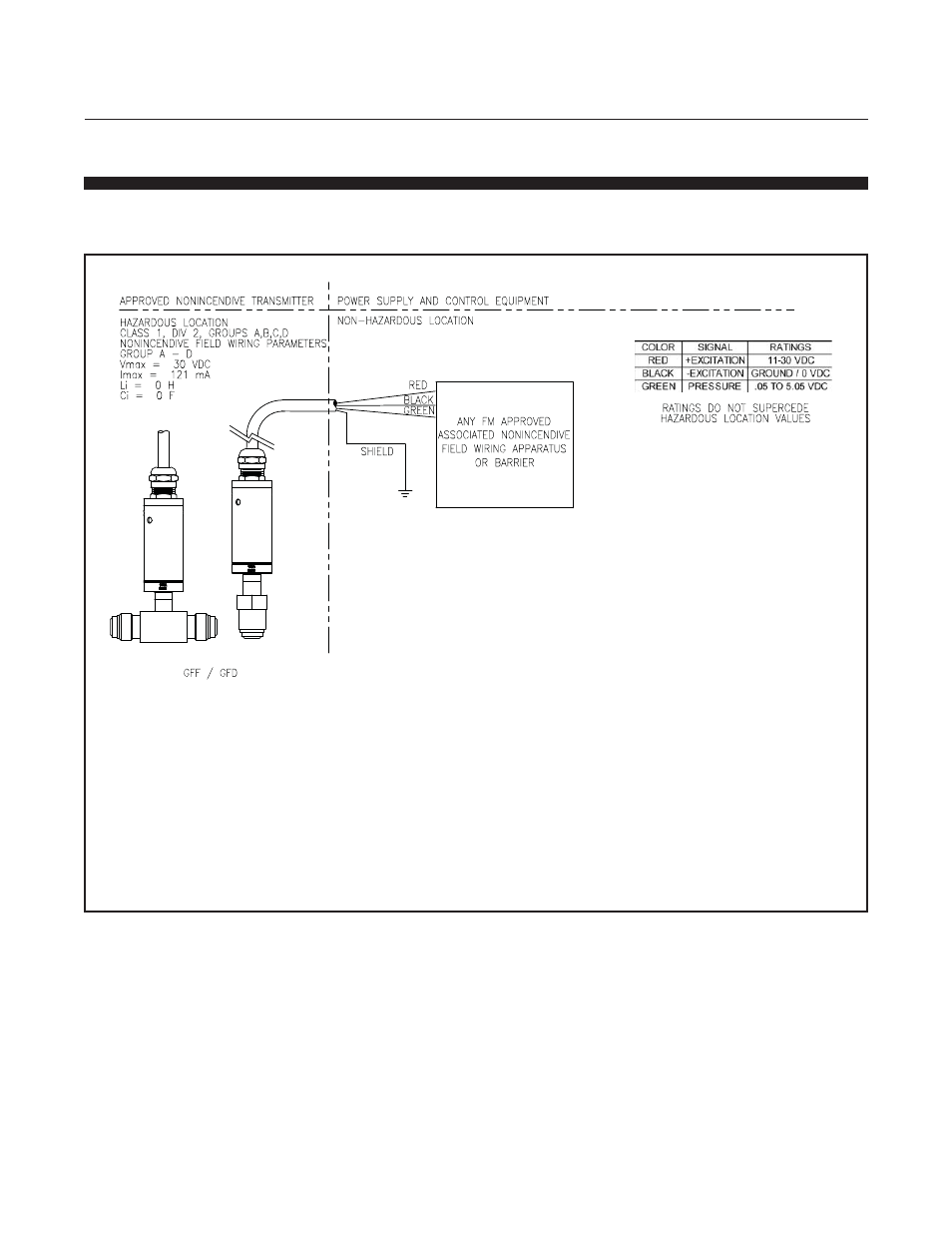

Figure 2-8 Non-Incendive Field Wiring for 0-5 Vdc
Notes:
1. The non-incendive field wiring curcuit concept allows interconnection of non-incendive wiring apparatus
with associated non-incendive field wiring apparatus using any of the wiring methods permitted for unclassified
locations.
2. Vmax > Voc or Vt, Ca > Ci + C cable, La > Li + L cable.
3. For this current controlled curcuit, the parameter (I max) is not required to be aligned with parameter (Isc or It)
of barrier or associated non-incendive field wiring apparatus.
4. Installation shall be in compliance with the NEC.
