Installation and Operation Manual
X-PR-SolidSense II-PT-eng
Part Number 541B160AAG
July, 2011
SolidSense II ® Series
2-5
Section 2 Installation

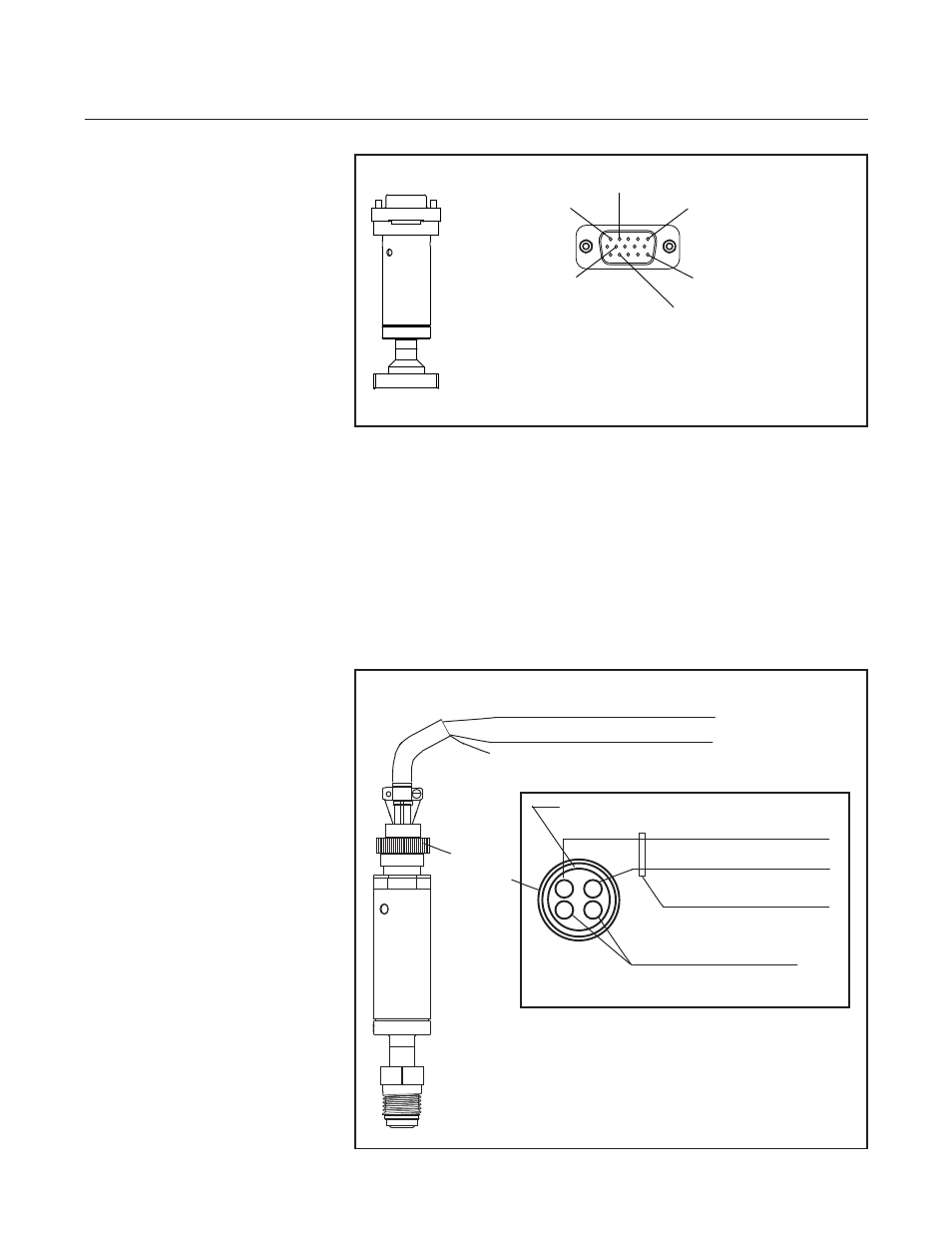

Figure 2-3 15-Pin D-Sub HD Connector Wiring Pinout
Figure 2-4 4-20 mA Bendix Cable Wiring
Pin 1
Pin 2 Output Signal
Pin 5 Power Supply Common
Pin 15
Pin 12 Output Common
Pin 7 Power Supply Input
Red (+) Excitation
Black (-) Common
(Bare) Drain Wire
A
B D
C
Female
Bendix
Connector
Top key on mating side
Red (+) Excitation
Black (-) Common
(Bare) Drain Wire
No Connection
Solder side view from inside connector
The Bendix connector cable has a removable, 4-pin locking connector with
a shielded cable. The connector cable is available from Brooks under part
number: EL3000032010.
