Section 2 Installation
SolidSense II ® Series

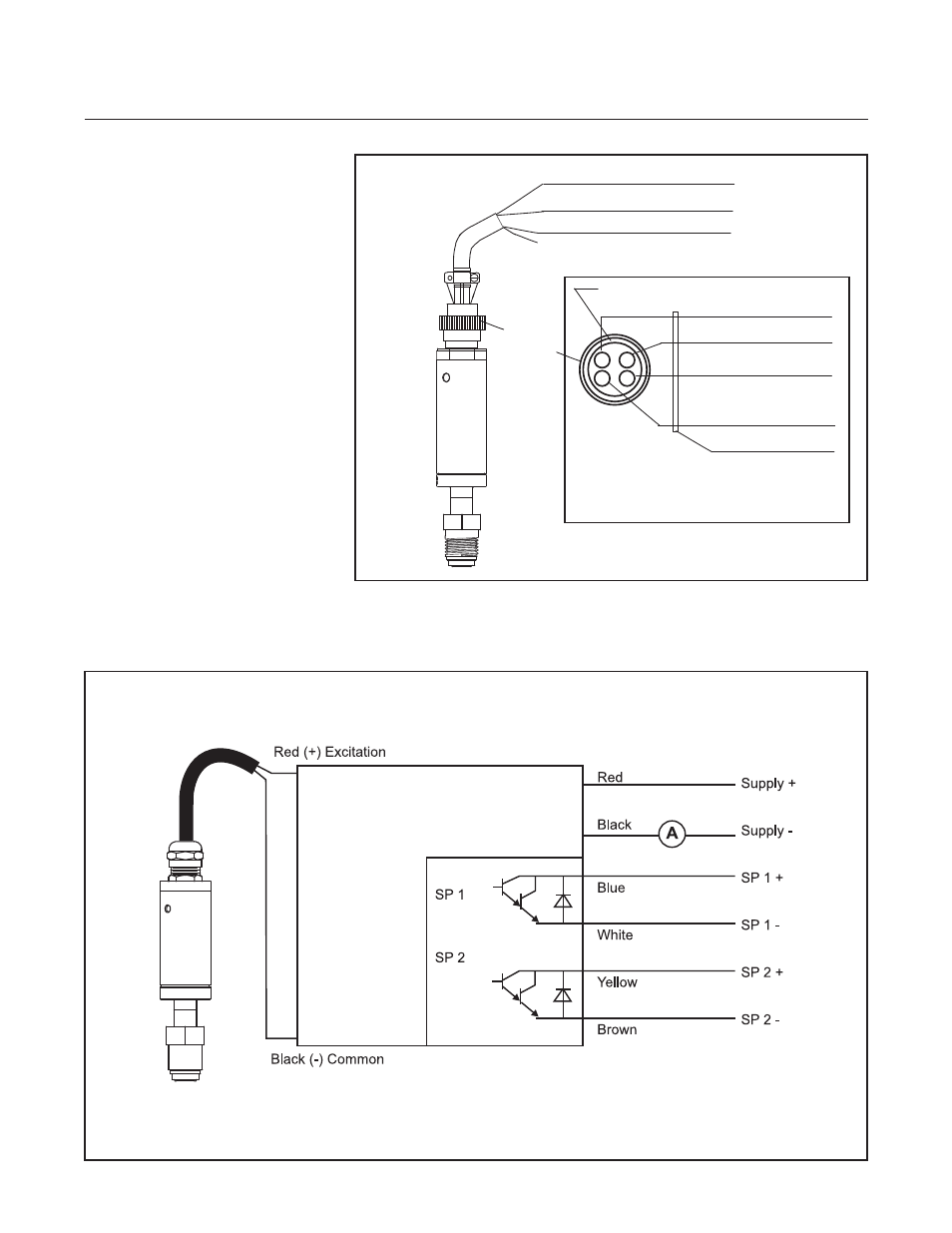

Figure 2-5 0-5 Vdc or 0-10 Vdc Bendix Cable Wiring
Red (+) Excitation
Black (-) Common
(Bare) Drain Wire
A
B D
C
Female
Bendix
Connector
Top key on mating side
Red (+) Excitation
Black (-) Common
(Bare) Drain Wire
No Connection
Solder side view from inside connector
Green (+) Output
Green (+) Output
The SolidSense II pressure transducer can be wired directly to a 12 or 24
Vdc LR056. The pigtail cable is connected as shown in Figure 2-6.
Figure 2-6 4-20 mA Output Device Wiring to LR056
