Solidsense ii, Series – Brooks Instrument SolidSense II User Manual
Page 20
Installation and Operation Manual
X-SolidSense II-PT-eng
Part Number 541B160AAG
July, 2011
2-4
Section 2 Installation
SolidSense II
®
Series
b. Turn the gas flow ON then OFF, 10 times to remove any particles
generated during installation. (The flow rate used should at least equal
the process flow specifications.)
c. Mechanical Installation is complete. Complete the electrical wiring
connec-tions as noted in the next section.
2-8 Electrical Connections

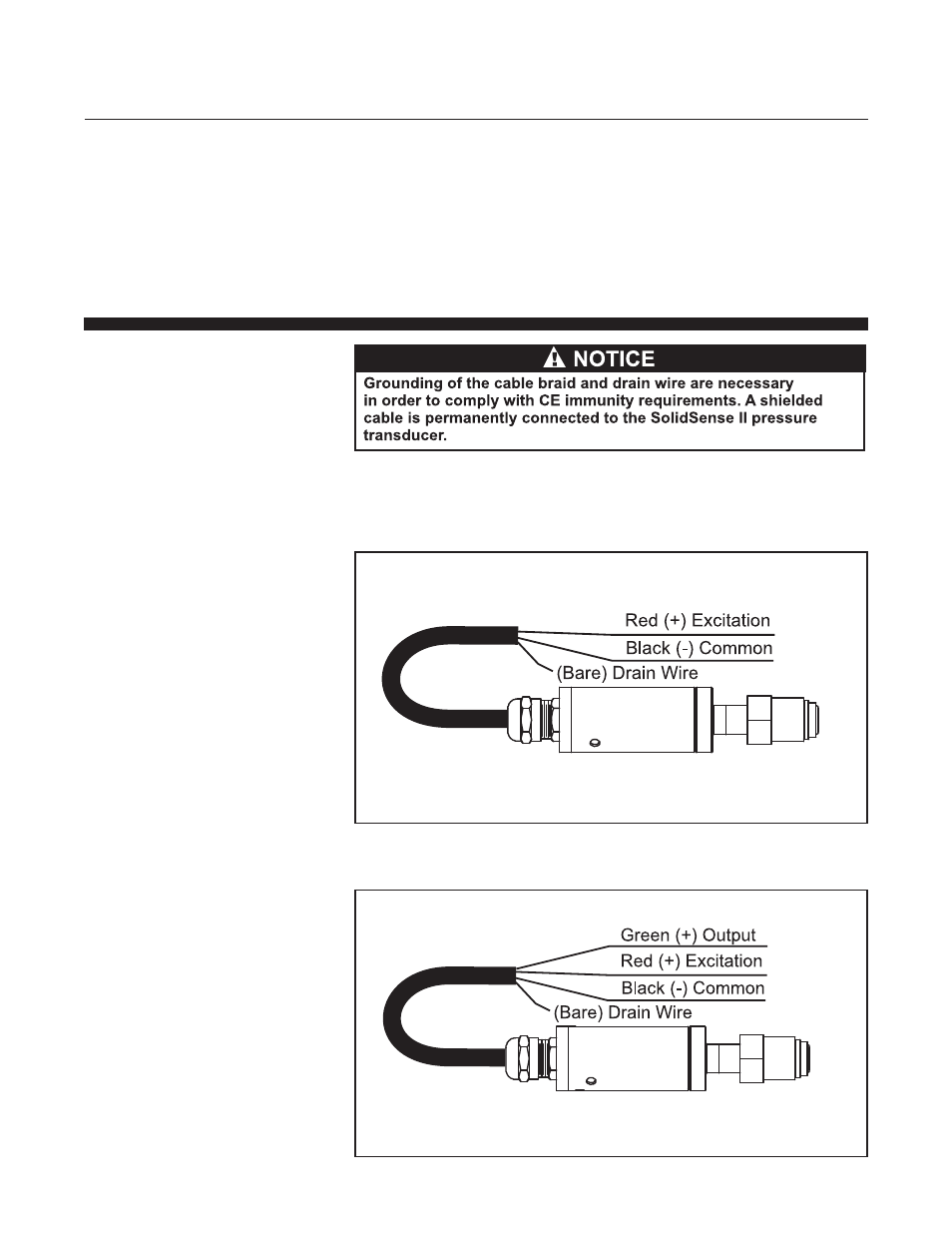

Electrical Wiring diagrams are shown in Figures 2-1 through 2-6. Connect
the cable braid and drain wire to an earth ground to help reduce inductive
signal interference.
Figure 2-1 4-20 mA Pigtail Cable Wiring
Figure 2-2 0-5 Vdc or 0-10 Vdc Pigtail Cable Wiring
