X85 Pallet

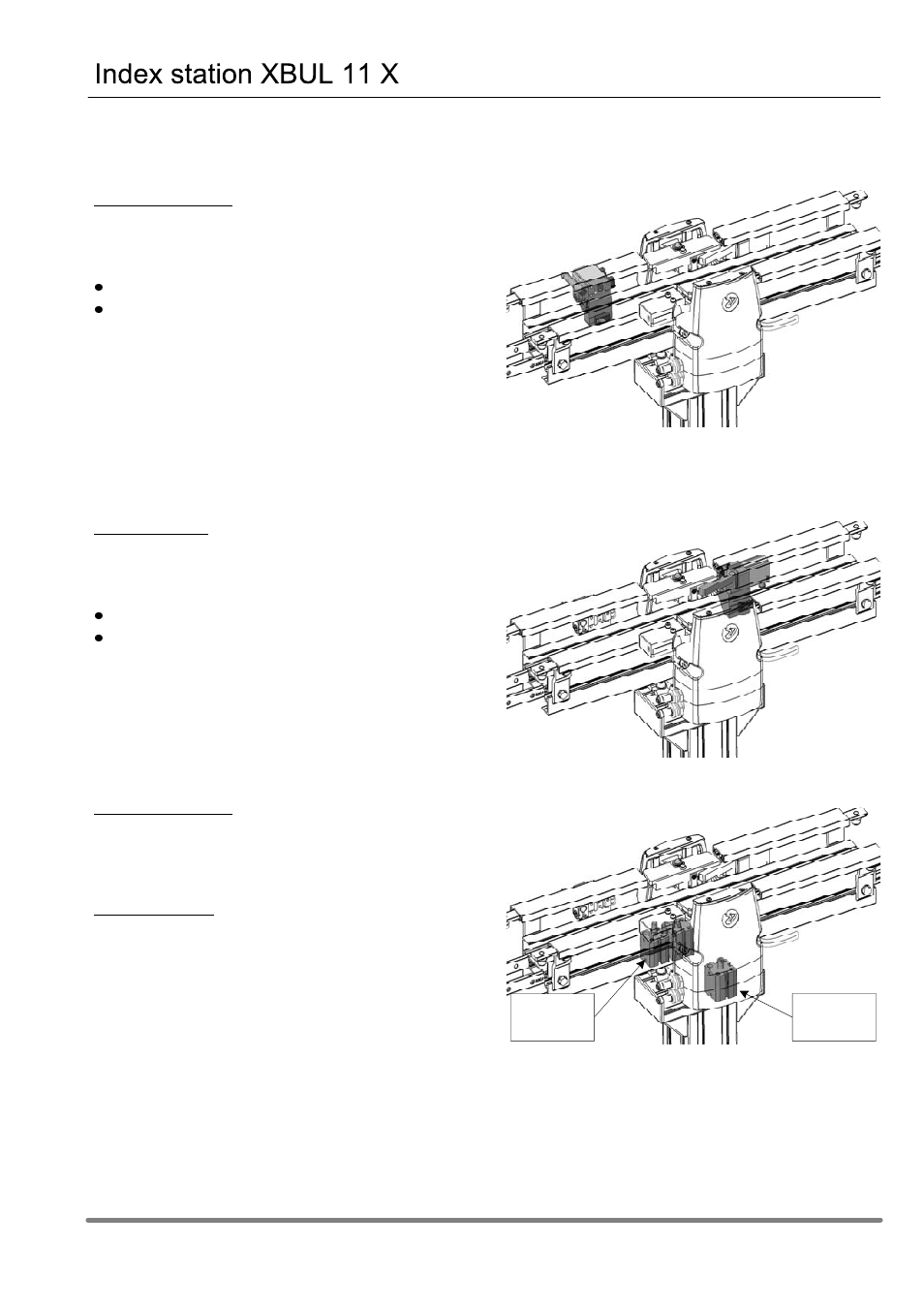

Cylinder details
Cylinder A1 ”Pre-stop”
Type: Single acting
Function:
Pressurized: Releases the pallet flow
No pressure: Blocks the pallet flow
For security reasons, the pallet stop is blocking the flow in
case of a pressure drop, preventing pallets from travelling
uncontrolled along the conveyor.
The stop should not re-block the flow while a pallet puck is
in a position where it could be clamped.
It is recommended to re-block the flow after each pallet.
Cylinder A2 ”Stop”
Type: Single acting
Function:
Pressurized: Releases the pallet flow
No pressure: Blocks the pallet flow
For security reasons, the pallet stop is blocking the flow in
case of a pressure drop, preventing pallets from travelling
uncontrolled along the conveyor.
Cylinder A3 ”Locating”
Type: Double acting
Function: Locates the pallet.
Cylinder A4 ”Index”
Type: Double acting
Function:Index the pallet.
There is no sensor attatch to the ”index” cylinder
Note 1: It is recommended that flow control valves are
used, for example Festo GR-QS-6 (193969).
Cylinder A3
”Locating”
Cylinder A4
”Index”
Cylinder A1 ”Pre-stop”
Cylinder A2 ”stop”
Cylinder A3 and A4
