X85 Pallet
Function description
The Index station is divided into Pre-stop position and
Process position.
Pre-stop position
The Pre-stop position is relieving the Process position of
the queue-pressure. The RFID-reader of the Pre-stop
identifies the pallet, affecting the efficiency as pallets with
other destination quickly pass the Process position.
Process position
The Process position receives one pallet at a time from
the Pre-stop.
If the pallet should be processed, it is caught by the
integrated stop. Thereafter it is located and process is
allowed to start for the first index position.
When processing is finished for the first index position, the
pallet is unlocked simultaneously as the integrated stop is
releasing the flow downstream.
The index sensor detects the next index position (index
position 2) and triggers the index motion to stop the pallet.
The pallet is located in the second index position, the
index motion is disactivated and processing is allowed to
start for second index position.
When processing is finished, the pallet it unlocated.

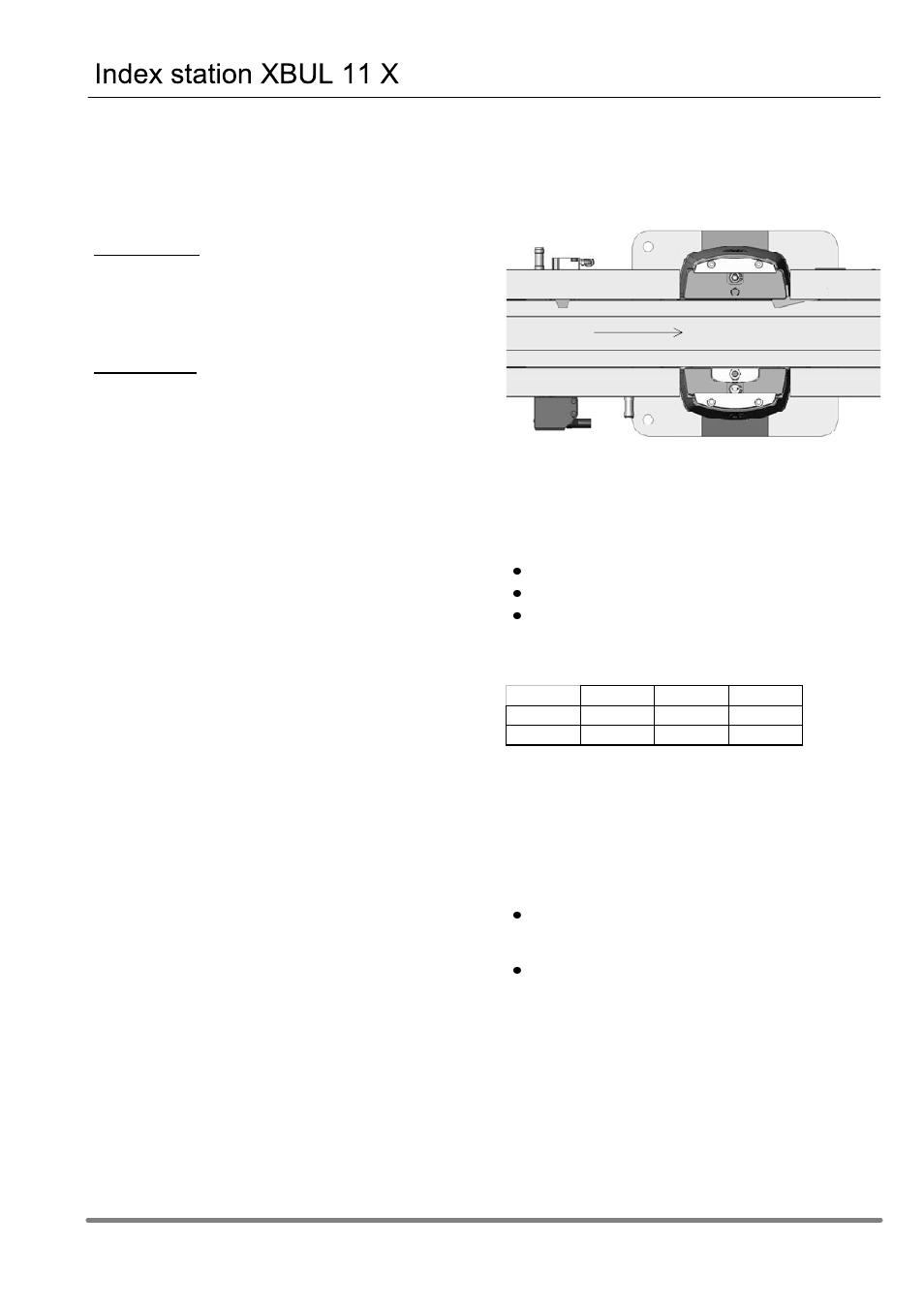

Internal positions
Pre-stop
position
Process
position
Data:
Pre-stop queue pressure limit: 100 kg
Process position accuracy: +/- 0,1 mm
The Exchange time [sec] shown below is cycle time
with process time excluded and is only valid for
125 mm pallet size
Notes:
The station is not equipped with any downstream
maxqueue sensor as the design is only possible with
an overview of the line as a whole.
The sensor configuration is depending on the size of
pallet. Mixed flow with reference to pallet length is not
possible.
5 m/min 10 m/min 15 m/min
Position 1 3,5 1,9 1,7
Position 2 2,2 1,3 1,2
