X85 Pallet

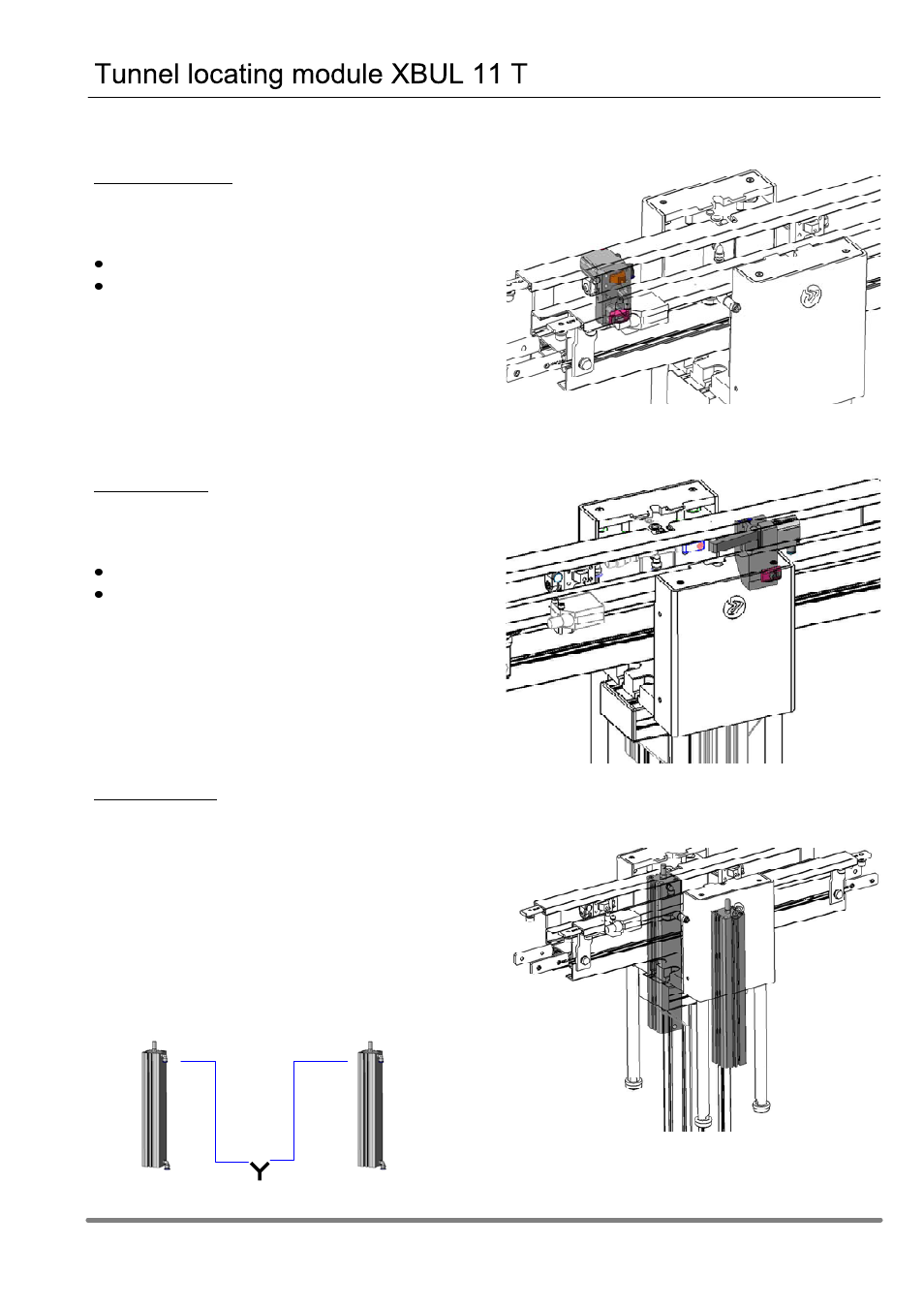

Cylinder details
Cylinder A1 ”Pre-stop”
Type: Single acting
Function:
Pressurized: Releases the pallet flow
No pressure: Blocks the pallet flow
For security reasons, the pallet stop is blocking the flow in
case of a pressure drop, preventing pallets from travelling
uncontrolled along the conveyor.
The stop should not re-block the flow while a pallet puck is
in a position where it could be clamped.
It is recommended to re-block the flow after each pallet.
Cylinder A1
Cylinder A3 ”Lifting”
Type: Double acting
Function: Lifts the pallet. Close to upper end-position, the
pallet is locked during lifting.
Note 1: The cylinders are not equipped with tubing. When
installing the tubing, it is important that the tubing have
equal lengths from Y-connector to the connectors of the
parallel cylinder connectors.
Note 2: It is recommended that flow control valves are
used, for example Festo GR-QS-6 (193969).
Cylinder pair A3
Distance A=B
Cylinder A2
Cylinder A2 ”Stop”
Type: Single acting
Function:
Pressurized: Releases the pallet flow
No pressure: Blocks the pallet flow
For security reasons, the pallet stop is blocking the flow in
case of a pressure drop, preventing pallets from travelling
uncontrolled along the conveyor.
A B
