X85 Pallet
Function description
The module is divided into Pre-stop position and Process
position.
Pre-stop position
The Pre-stop position is relieving the process position
from the queue-pressure. The RFID-reader at the Pre-
stop identifies the pallet, enhancing the efficiency as
pallets with another destination quickly pass the Process
position.
Process position
The Process position receives one pallet at a time from
the Pre-stop. If the pallet should be processed, it is caught
by the integrated stop. Thereafter it is lifted, locked and
the process is allowed to start.
While the pallet is raised and locked, pallets are allowed
to pass through the process position.

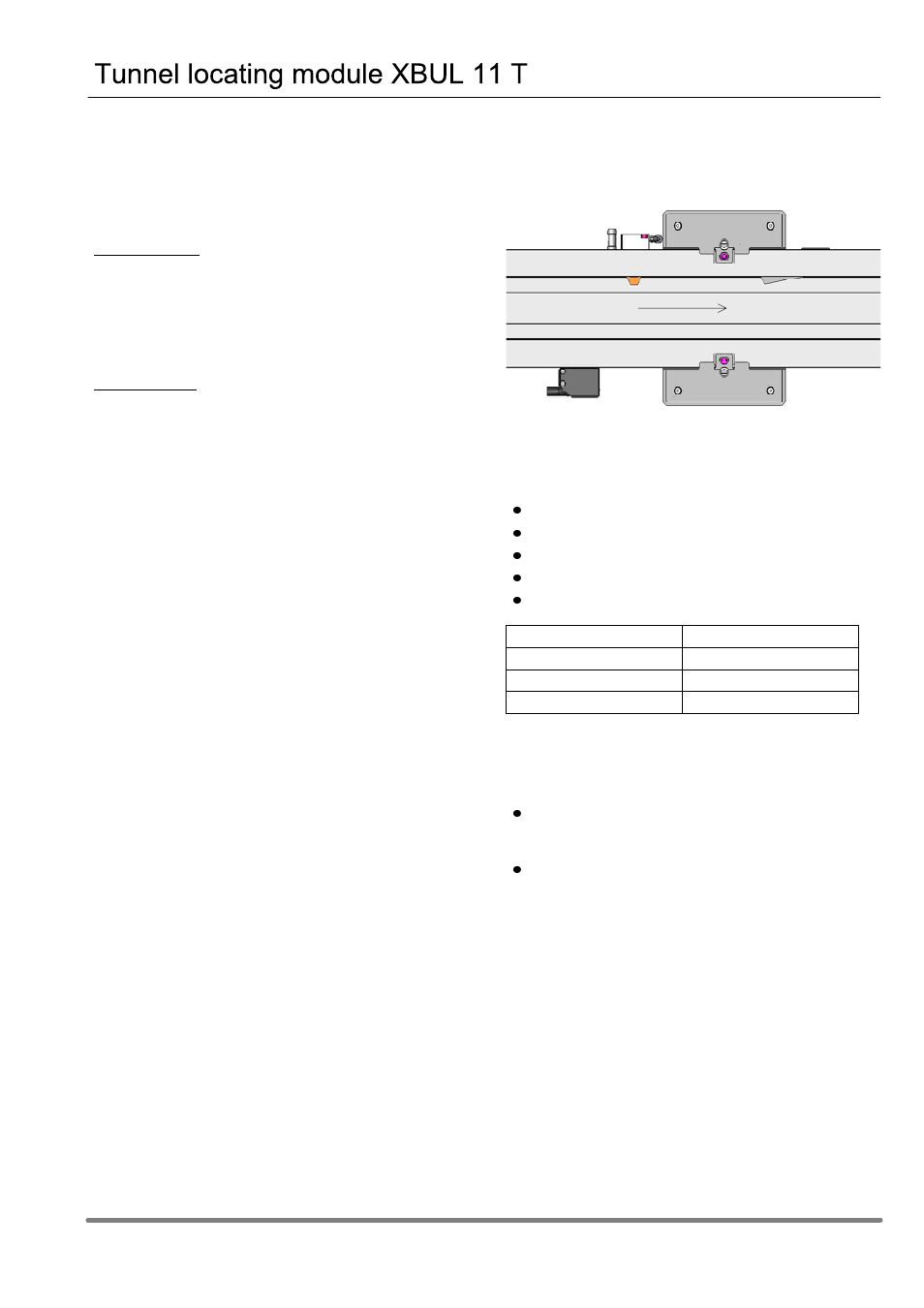

Internal positions
Pre-stop
position
Process
position
Data:
Pre-stop queue pressure limit: 100 kg
Process position accuracy: +/- 0.1 mm
Lifting capacity: 10 kg
Exchange time:
Notes:
The station is not equipped with any downstream max
queue sensor as the design is only possible with an
overview of the line concept as a whole.
The sensor configuration is depending on the size of
pallet. Mixed flow with reference to pallet length is not
possible.
Conveyor speed [m/min]
5
10
15
Time [s]
8
6,3
5
