Position the CompactFlash card on its side with the media
manufacturer’s label upwards and the connectors facing away from you.
Insert the CompactFlash into the reader with the CompactFlash
connectors first and label facing upwards.
Gently push the card in all the way until the card will insert no further.
Position the MultiMediaCard or Secure Digital card on its side with the
media’s label on top and gold contacts on the bottom. The media should
be positioned so that the gold contacts are farthest from you and
inserted into the reader first. Please refer to below image for proper
media insertion.
Insert the card into the slot gold contacts first and the recessed notch on
the right. Gently push the card in all the way until the card is fixed in
place.
Position the Memory Stick on its side with the media’s label on the top
and the gold contacts on the bottom. Position the media so that the gold
contacts are farthest from you. Please refer to below image for proper
media insertion.
Insert the Memory Stick into the slot gold contacts first and the recessed
notch on the left. Gently push the Memory Stick in all the way until the
card is fixed in place.

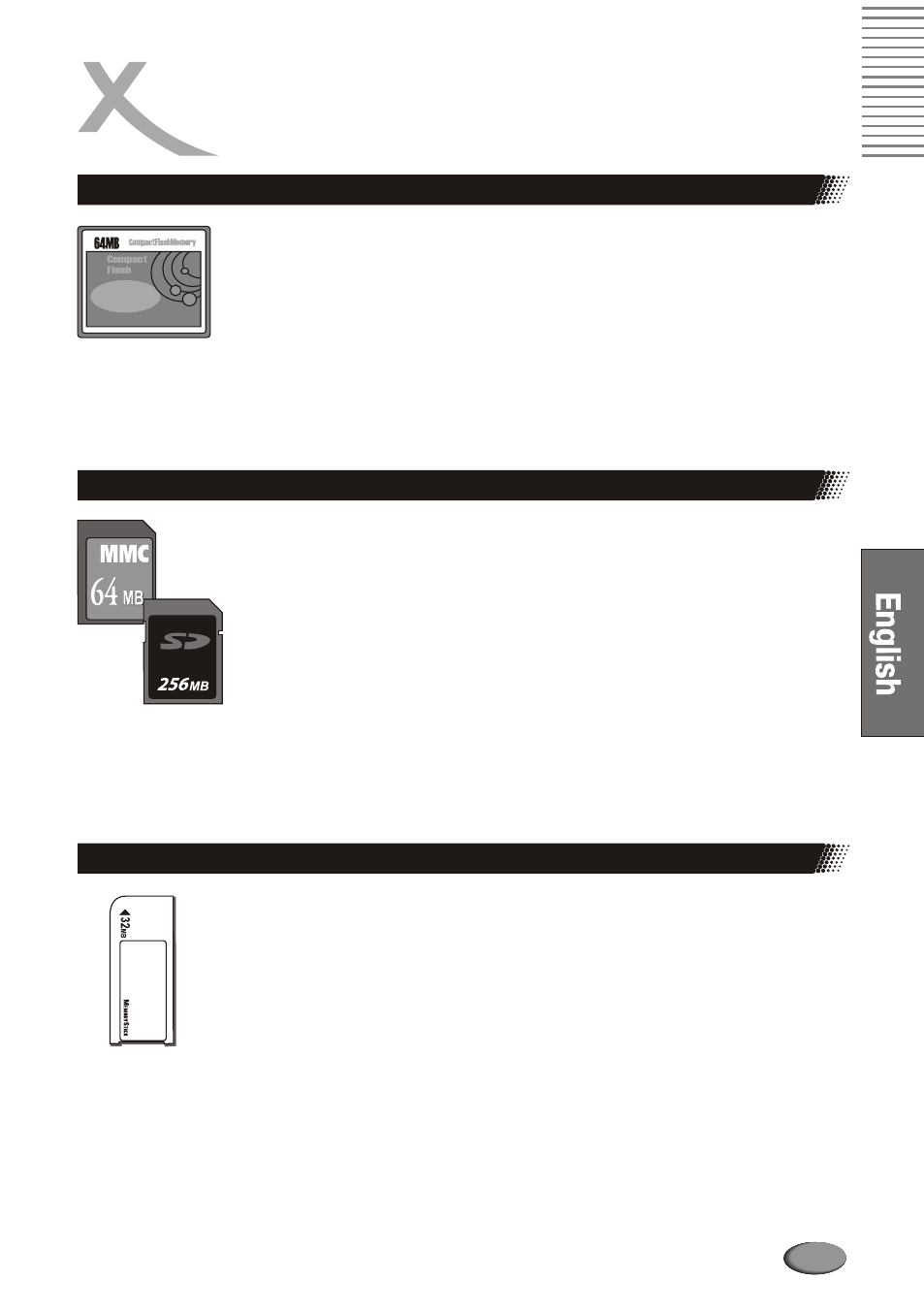

Inserting a CompactFlash Card
Inserting a Memory Stick card
Inserting a MultiMediaCard or Secure Digital Card
WARNING:
Be careful not to insert the CompactFlash card in the wrong direction - be sure the connectors are
facing inward and the card’s label is on the bottom side.
OPERATION FOR CARD READER
IMPORTANT:
Notice the notched corner of the MultiMediaCard or Secure Digital card and be careful not to insert
the MultiMediaCard or Secure Digital card in the wrong direction. To insert properly, be sure that
the card is positioned so that the recessed notch is facing right and the media’s label is on the top.
The media is to be inserted gold contacts first.
IMPORTANT:
Notice the rounded corner of the Memory Stick card and be careful not to insert the Memory Stick
in the wrong direction. To insert properly, be sure that the card is positioned so that the rounded
corner is facing left with the gold contacts downwards.
109
