OPERATION FOR CARD READER
Position the SmartMedia card so that it is on its side with
the gold contacts located on the top side of the media.
The media’s notched corner should be facing right when
the gold contacts are on the top. Please refer to below
illustration for proper insertion.
Insert the card into the slot with the gold contacts on the
top and the notched corner facing right. Gently push the
card in all the way until the card is fixed in place.
Inserting a SmartMedia Card
Remark:
This product can only accept 3.3V SmartMedia cards. Notice the notched corner of the
SmartMedia card. The location of the notch for a 3.3V SmartMedia card will appear on the right-
hand side when you are looking directly at the gold contacts from the top (refer to the illustration at
the bottom of the page).
IMPORTANT NOTE:
5V SmartMedia cards are not supported.

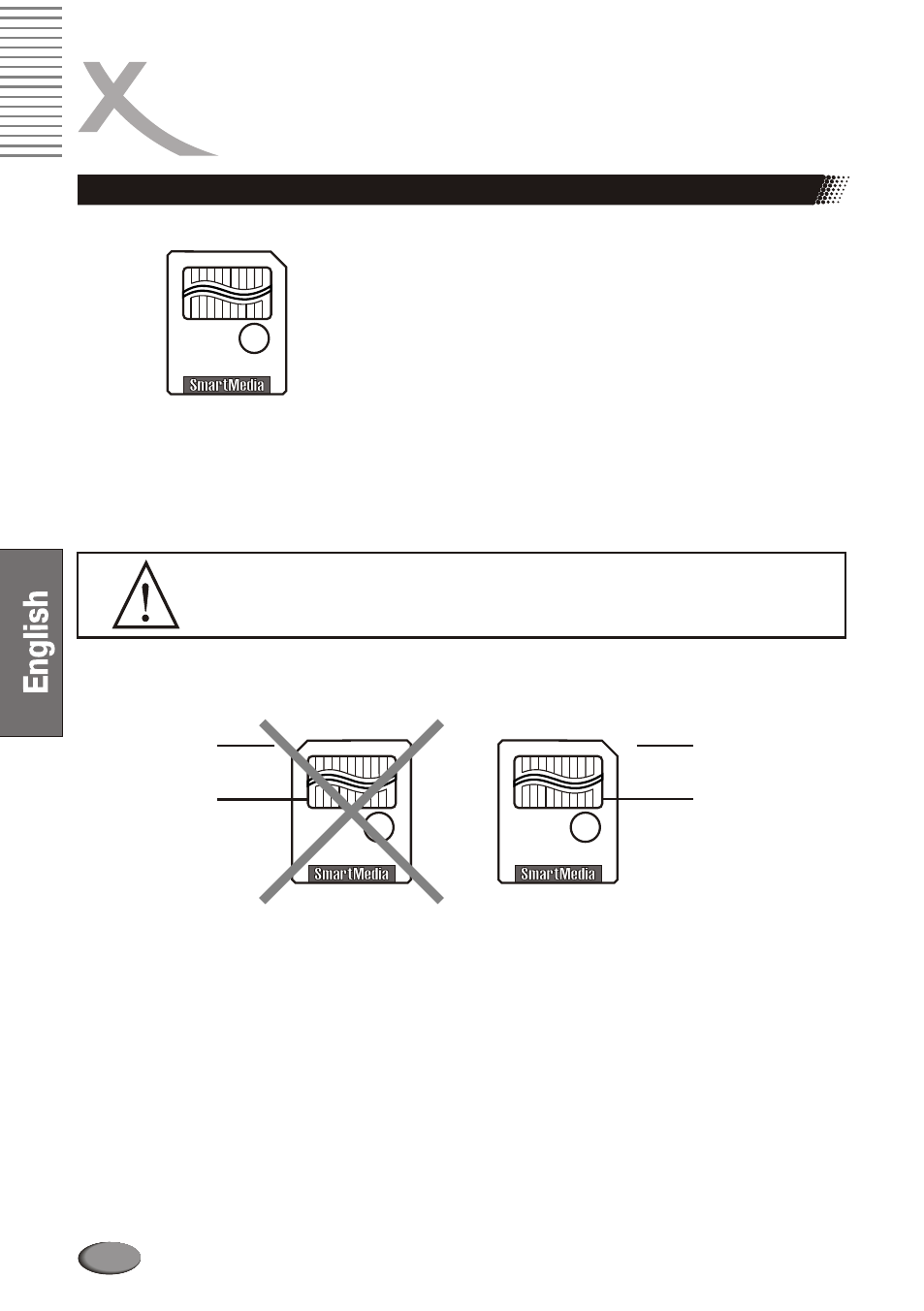

Left notch
indicates 5V card
Gold contacts Gold contacts
Right notch
indicates 3.3V card
5V SmartMedia cards(NOT COMPATIBLE) 3.3V SmartMedia cards (COMPATIBLE)
