Datamax-O'Neil Workstation series User Guide User Manual
Page 21
Connections and Setup | 3
13
Workstation Series User’s Guide
Note:
Ensure the core adapters have snapped into place.
3. Slide the media support brackets outward and place the paper roll between them.
Note:
The paper must be wound out.

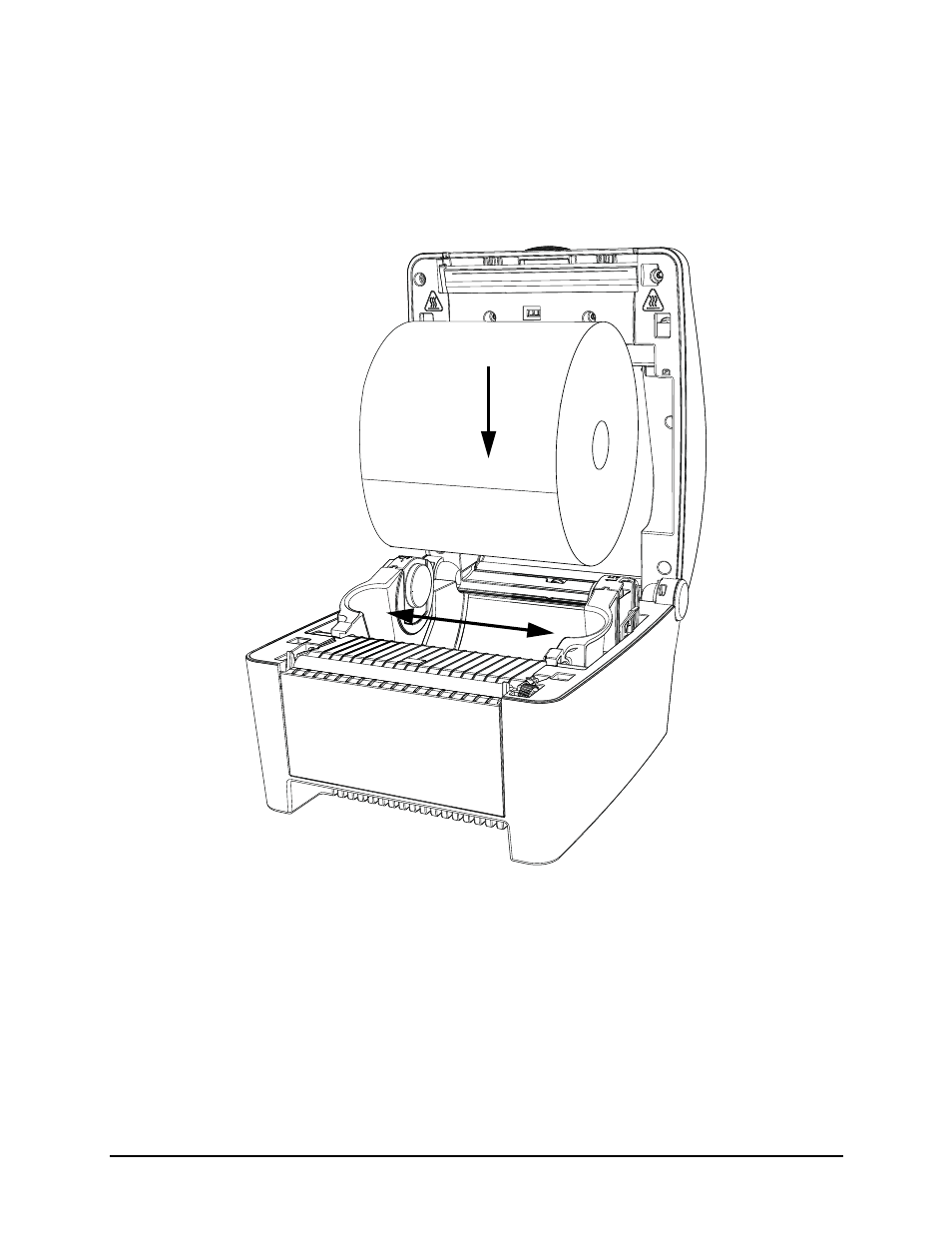

Figure: 3 - 2 Paper Roll Installation
4. Release the media support brackets ensuring the core is secured by the core
adapters.
