Analog Way QuickMatriX - Manual (Page 23)

23

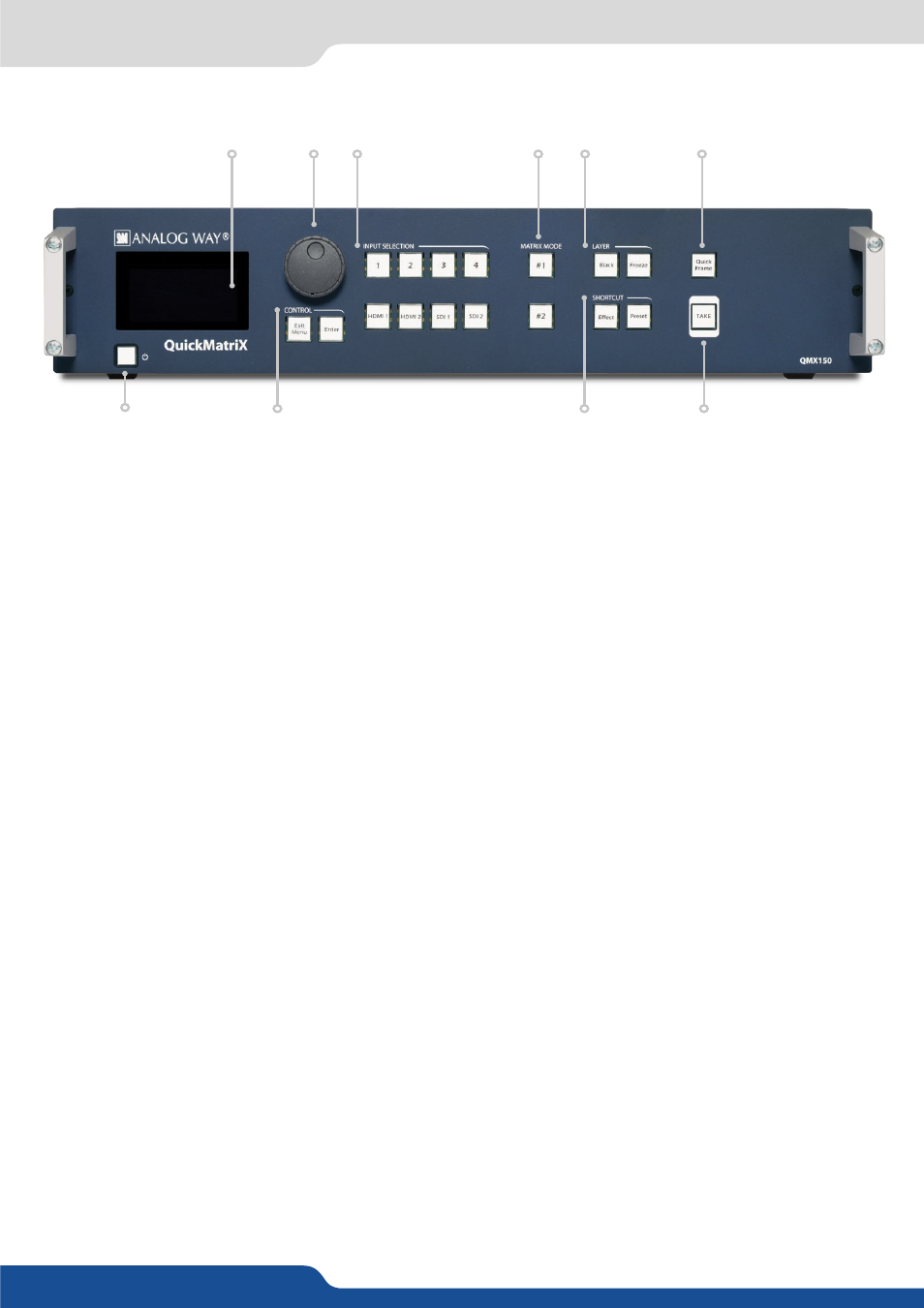

5.1.2 Front panel
5.1.2 Front panel
1 2 3 4 5 6
8 9 10 7
1. Front panel display: 4-line VFD
2. Menu scroll knob
3.
Input selection: - 1 to 4: access source 1 to 4
- HDMI 1/2: access HDMI 1 or HDMI 2
- SDI 1 to SDI 2: access SDI 1 to SDI 2
4. Matrix mode: #1 to #2: select the output #1 or #2, a layer and a source, then press TAKE.
This is a fast routing mode
5. Layer: - Black: clear the layer
- Freeze: freeze/unfreeze the input selected in the currently selected layer
6. Quick Frame: allows to quickly display a foreground frame
7. On/Off - Stand-by: hold for 3 seconds for stand-by mode
8. Control: Exit/menu: Home menu or back one level - Enter: validate the menu or command
9. Shortcut: Effect: shorcut to transition menu - Preset: recall a custom stored preset
10. TAKE: transition the pre-selected sources onto the Program output with the selected effects
