4.7 Output specifications
Note:
1) Reduced Blanking
Standard Size HD-15 3G-SDI HDMI
Single-Link
DVI-D
1366x768 1366x768 Yes No Yes Yes
800p RGB 1280x800 Yes No Yes Yes
SWXGA+ 1366x800 Yes No Yes Yes
1152x864 1152x864 Yes No Yes Yes
900p RGB 1440x900 Yes No Yes Yes
1600x900 1600x900 Yes No Yes Yes
960p RGB 1280x960 Yes No Yes Yes
SXGA 1280x1024 Yes No Yes Yes
1360x1024 1360x1024 Yes No Yes Yes
DILA4/3 1364x1024 Yes No Yes Yes
SXGA+ 1400x1050 Yes No Yes Yes
WSXGA+ 1680x1050 Yes No Yes Yes
1080p RGB 1920x1080 Yes 1 No Yes 1 Yes 1
2K 2048x1080 Yes 1 No Yes 1 Yes 1
Q WXGA 2048x1152 Yes 1 No Yes 1 Yes 1
UXGA 1600x1200 Yes 1 No Yes 1 Yes 1
WUXGA 1920x1200 Yes 1 No Yes 1 Yes 1

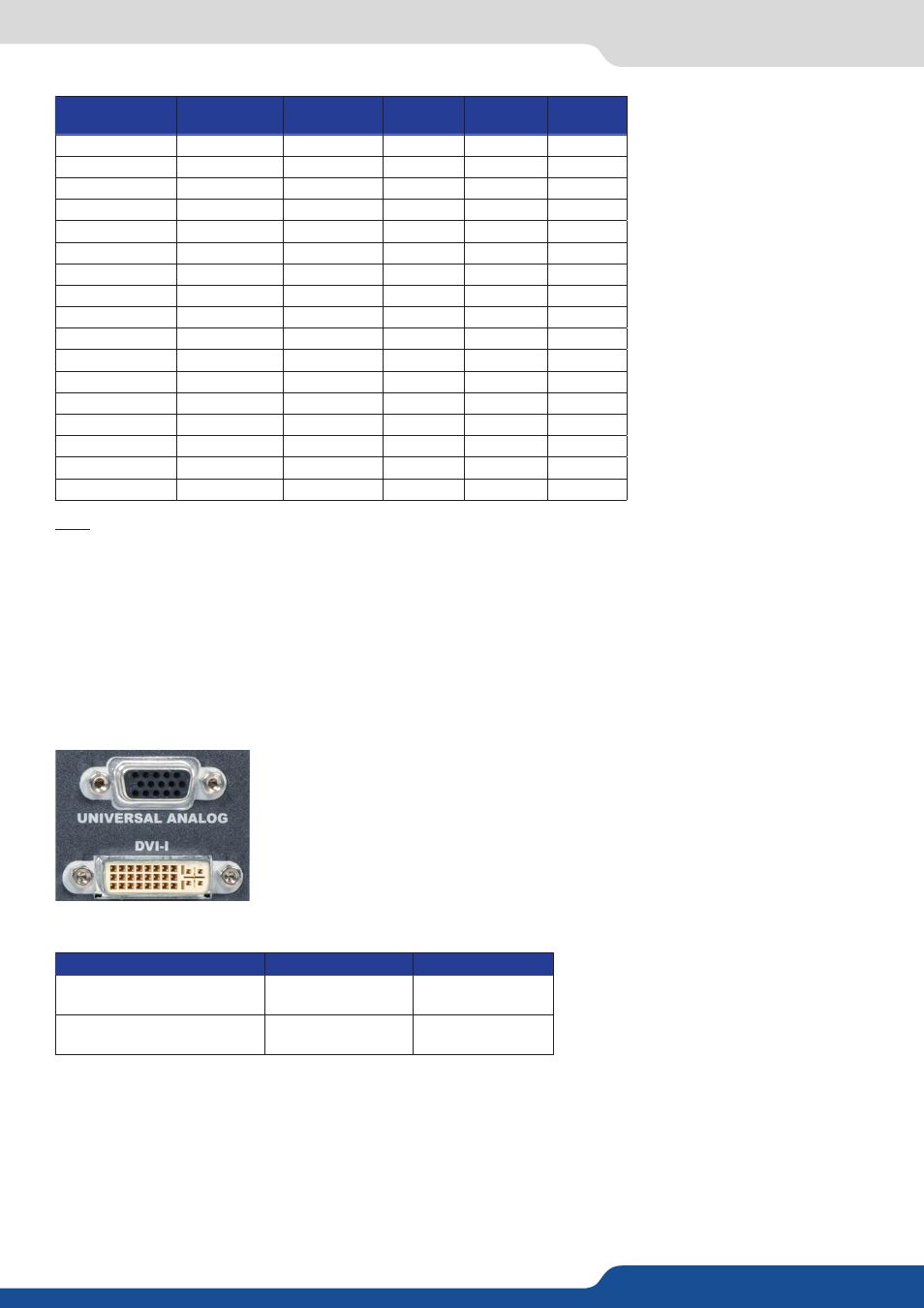

The QuickMatriX has two standard outputs.
The standard output contains:
- Analog Computer/Video (HD15),
- HDMI output over a DVI-I connector or DVI-I output (DVI-Analog and DVI-Digital).
4.7 Output specifications
4.7.1 Standard output
VGA
DVI-I
Please see the formats available on the output:
Please note that SDTV and EDTV are not available on the standard output but only on the video output module.
Output Type Format Signal
Analog Computer/Video Ouput
HDTV
Computer
Analog HDTV
Analog Computer
DVI-I Output
HDTV
Computer
Digital HDTV
Digital Computer
