69

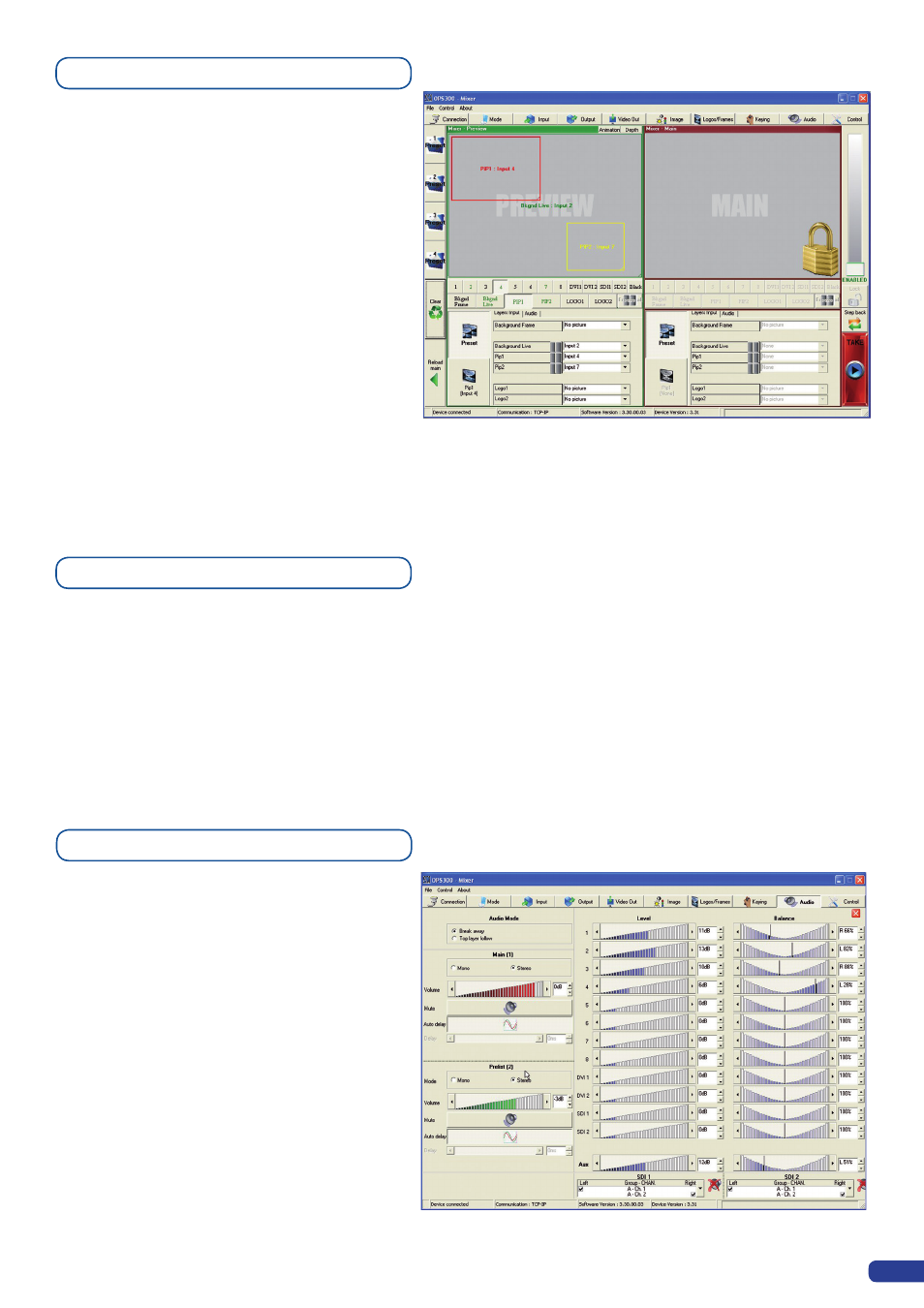

Working with Presets
The four OPS300 user presets can be called
back at any stage during your show or event.
1. Click on one of the four available Preset
buttons to choose which memory you wish
to use. Select Load to Preview from the
dropdown menu, your preset will appear on
the Preview screen.
2. Once you have selected your preset, simply
click on the [TAKE] button to view the result
on your Main screen.
Working with Audio
The OPS300 allows to work with up to 10 stereo inputs, 1 auxiliary input, and 2 embedded SDI audio inputs
(via the SDI BNC connectors), all accessible via the Audio menu of the OPS300 , and which can be affected
to one or both of the 2 independent symetrical/asymetrical outputs of the device.
To configure audio settings of the OPS300 , plug
all audio inputs into the device, and click on the
Audio tab of the RCS home page.
1. Set the Main audio output level and delay
(accessible only if Delay Mode is set to
Manual Adjust), or click on the [MUTE]
button to mute Main audio output.
2. Repeat step 2 for the Prelist audio output.
3. Individual source settings (level and
balance) for each audio input can be
configured in the right hand section of the
Audio tab.
Audio configuration
