3-1. CONNECTING THE OPS300

The

OPS300

can be set up with up to 12 different sources, and will drive up to 2 digital DVI-D sources, 2 SD-

SDI sources and 8 analog computer/video sources simultaneously. The versatility of the

OPS300

will allow

for almost any event configuration and cater for all your projection needs.

The intuitive rear panel of the

OPS300

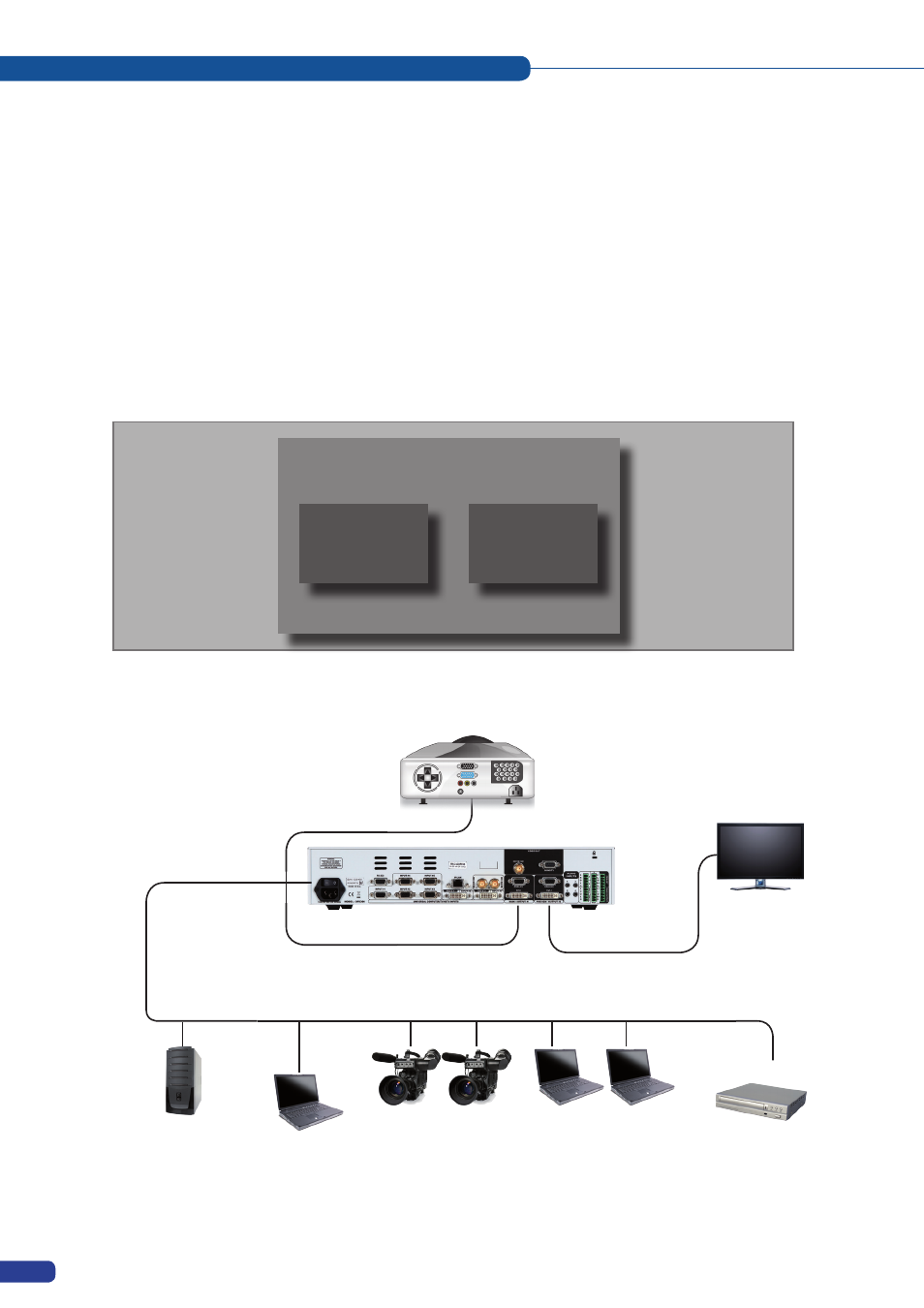

will let you set up for the first time quickly and easily. Here is an

example of a typical

OPS300

setup.

CONNECTING THE OPS300

STAGE

LIVE BACKGROUND

PIP 2

PIP 1

ANNUAL SALES REPORT

TITLE 1

Computer

(Live Background)

Laptop

(Background Frame)

DVD/BluRay

(Live Background)

HD-Cam

(PIP 1)

HD-Cam

(PIP 2)

Laptop

(PIP 1)

Laptop

(PIP 2)

Preview out

Main out

Sources

Preview

Monitor
