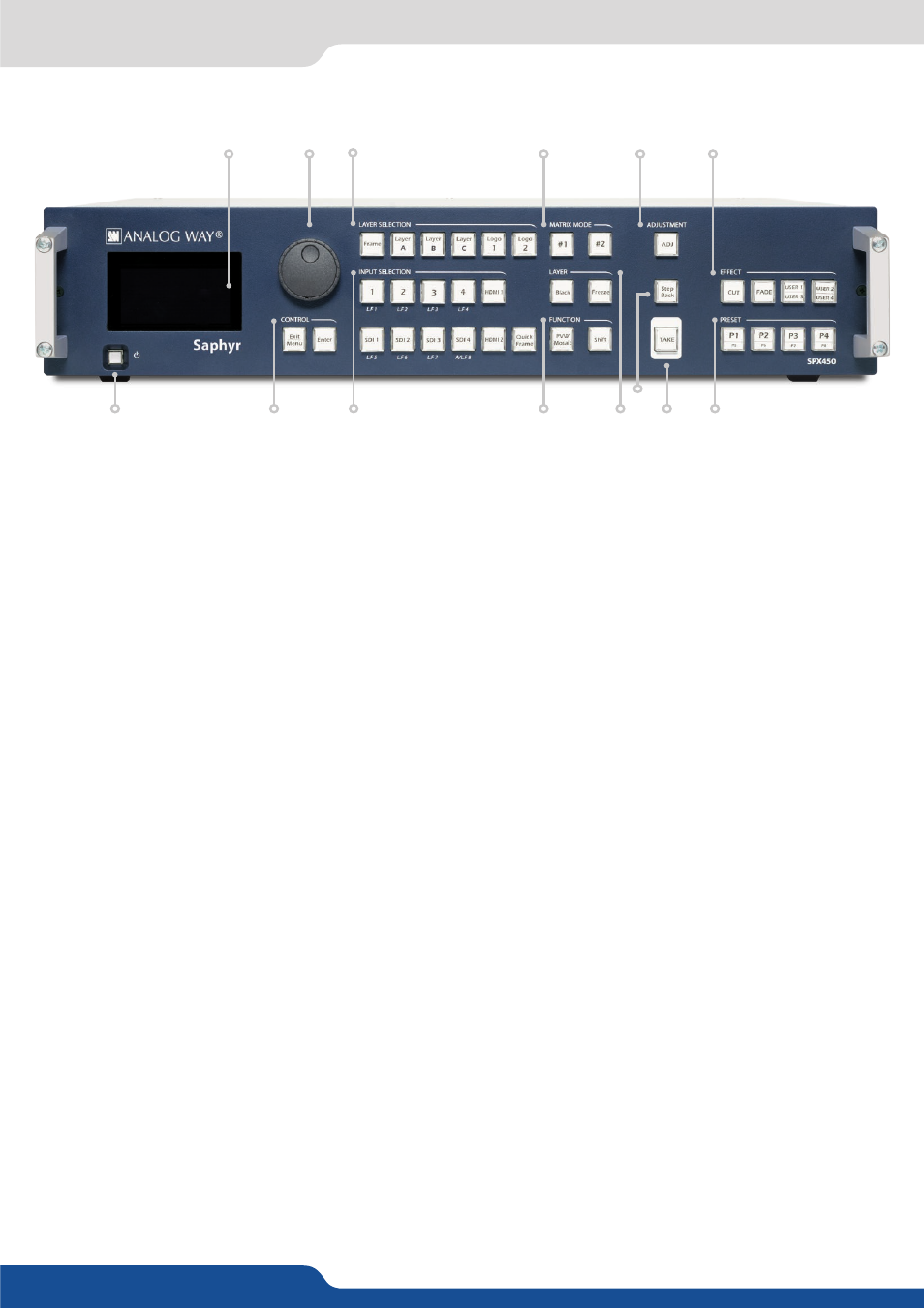

5.1.2 Front panel
5.1.2 Front panel
1 2 3 4 5
14 10 8 11 9
12
13 7
6
1. Front panel display: 4-line VFD
2. Menu scroll knob
3. Layer selection:
- Frame: un-scaled layer for still frames
- Layer A/B/C: scaled positionable layers for live sources
- Logo 1/2: un-scaled, positionable layer for still logos
4. Matrix mode: #1 to #2: select the output #1 or #2, a layer and a source, then press TAKE
5. Adjustment: adjust layer or logo position, size active layer, zoom active layer
6. Effect: - Cut: select Cut as the current transition type
- Fade: select Fade as the current transition type
- User 1 to 4: select as a customized transition
7. On/Off - Stand-by: hold for 3 seconds for stand-by mode
8. Control: Exit/menu: Home menu or back one level - Enter: validate the menu or command
9. Input selection: - 1 to 4: access source 1 to 4, display frame/logo 1 to 4
- HDMI 1/2: access HDMI 1 or HDMI 2
- SDI 1 to SDI 4: access SDI 1 to SDI 4, display frame/logo 5 to 8
- Quick Frame: allows to quickly display a foreground frame
10. Function: Preview: display Mosaic Preview - Shift: secondary function selection button
11. Layer: - Black: clear the layer
- Freeze: freeze/unfreeze the input selected in the currently selected layer
12. Step Back: recall the last preset into your Preview monitor
13. TAKE: transition the pre-selected sources onto the Program output with the selected effects
14. Preset: P1 to P8: stores and recalls 8 presets available
