Mounting Rail and Vibration Isolation
ClimaCool recommends locking down the chiller to a concrete base or to three (3) 4” base mounting rails using the six
(6) bolt holes provided in each base pan . Due to the low vibration of the modules, the application of spring isolators or
pads is not required . Should isolators or pads be desired install in accordance with Figures 4 and 5 .

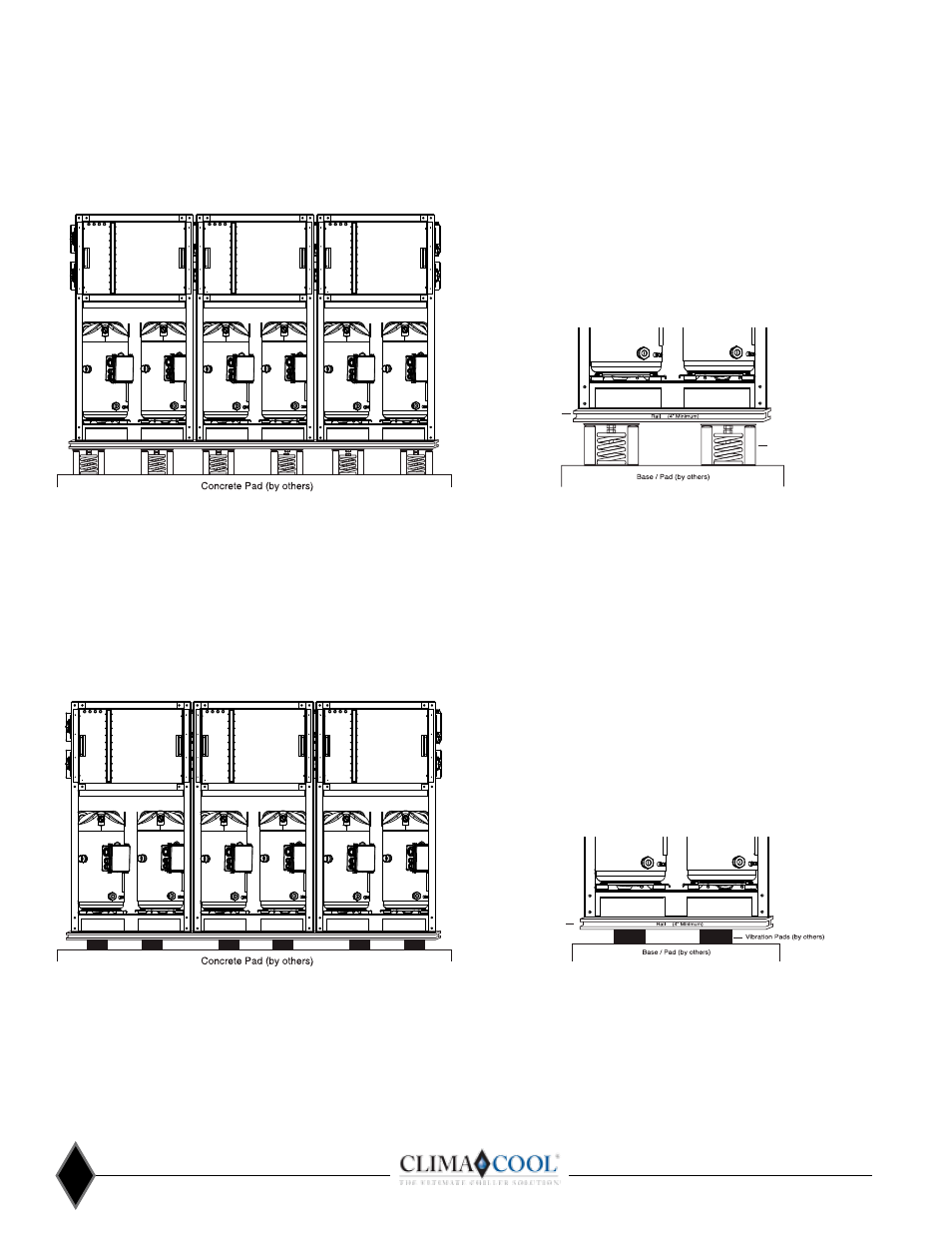

Figure 4 - Spring Vibration Isolators Option
Figure 5 – Vibration Isolation Pads Option
4” Rail Minimum
Recommended
(by others)
Spring Vibration
Isolators (by others)
4” Rail Minimum
Recommended
(by others)
4” Rail Minimum
Recommended
(by others)
Spring Vibration
Isolators (by others)
4” Rail Minimum
Recommended
(by others)
Note: Size and weight distribution is to be determined by a qualified structural engineer per individual job requirements.
