I 0637 - 5
1 2
3 4
10
11
12
14 15
5E 5I
16
13
Spring
DC WD Cone 3a
4
6
7
8
9
GB

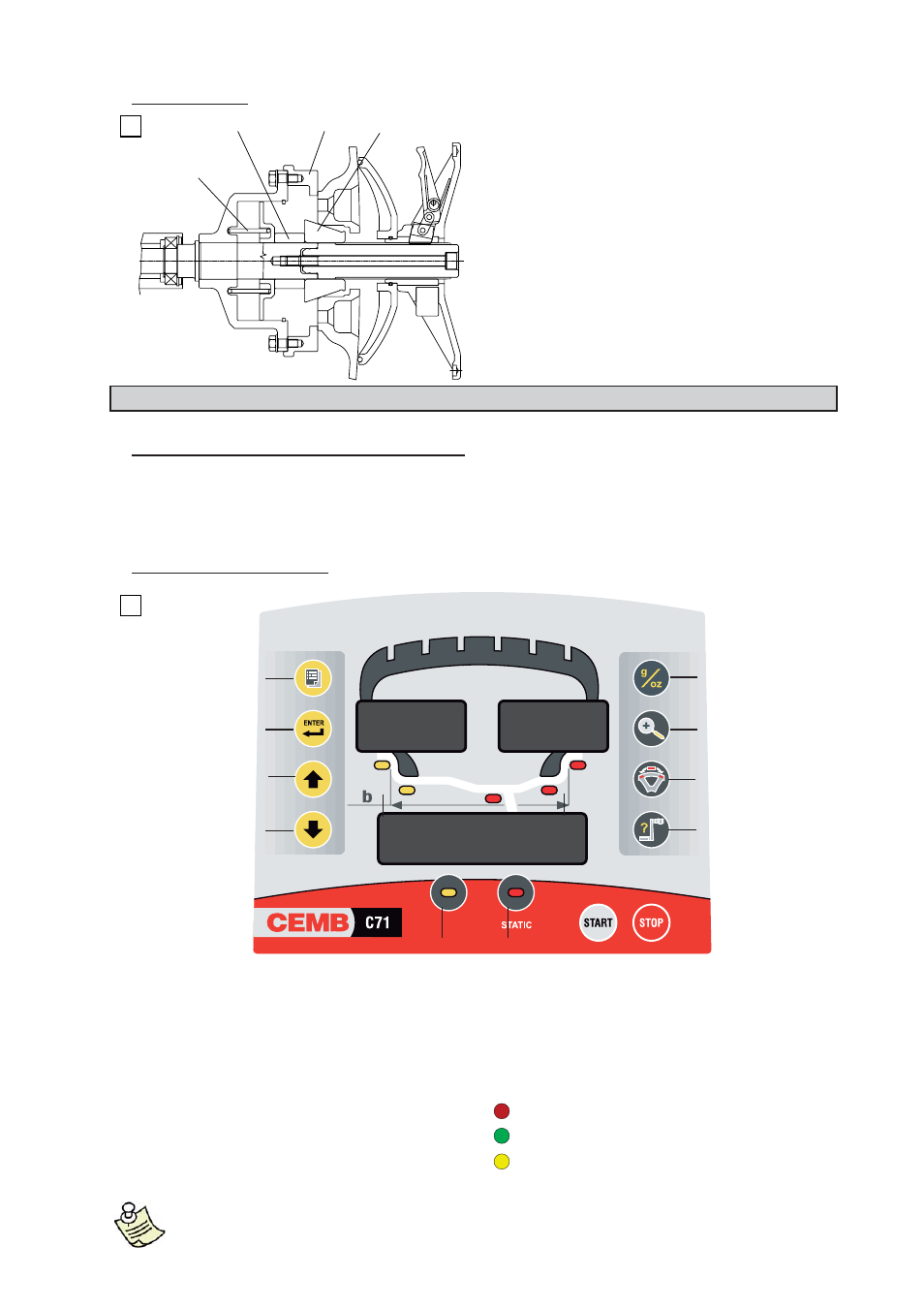

3.5 - WD spacer ►
4 - CONTROLS AND COMPONENTS
4.1 - Automatic distance and diameter gauge
Allows automatic measurement of the distance from the machine and the wheel diameter at the counterweight
application point. The same gauge can be used to position the counterweights correctly inside the wheel, using the
specifi c function that suggests the position memorised during measurement inside the rim.
4.2 - Keyboard and display
►
►
To move the wheel away from the machine side (e.g.
for very wide wheels), fi t the WD spacer on the fl ange
body and secure it with the standard issue nuts. When
centring the wheel with cone from the inside, mount the
DC spacer to obtain spring thrust. These devices are
optionals (see fl ange details enclosed).
1-2 Digital readouts, AMOUNT OF
UNBALANCE, inside/outside
3-4 Digital readouts, POSITION OF
UNBALANCE, inside/outside
5I INSIDE correction position selection button
5E EXTERNAL SIDE and STATIC correction
position selection button
6 Push button, FUNCTIONS MENU
7 Push button, MENU selection confi rmation
8 Maximize/MENU button
9 Minimize/MENU button
10 Grams/ounces selection push button
11 Push button, unbalance reading < 5 g
(.25 oz)
12 Push button, SPLIT (unbalance spread)
13 Position repeater push button
14 Push button, cycle start
15 Push button, emergency/home
16 Dot matrix function display
Note: Press buttons only with your fi ngers. Do not use the counterweight grippers or other pointed
objects.
RED
GREEN
YELLOW
