I 0637 - 17
40 mm
GB

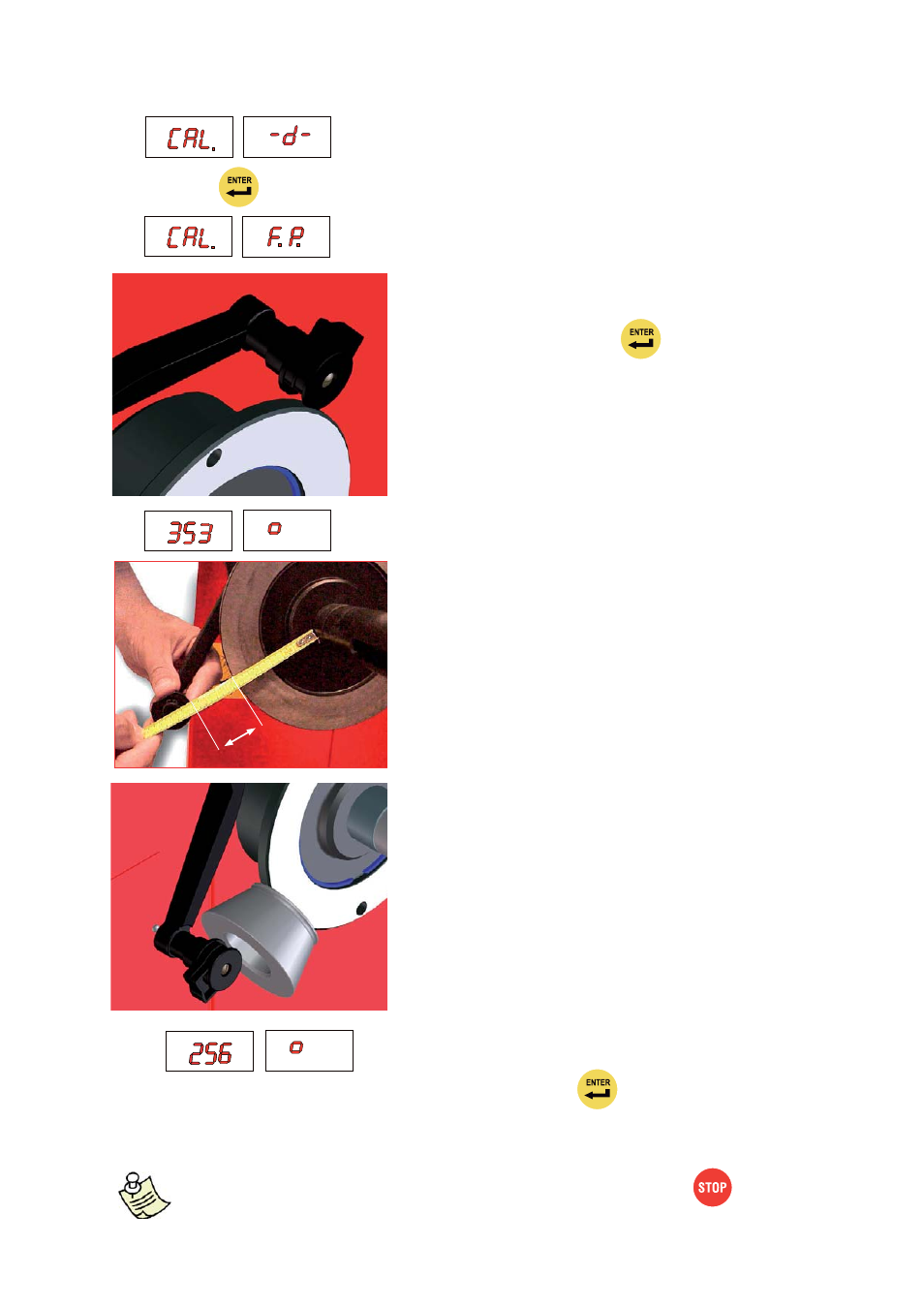

6.5.2 - Diameter gauge
E40 mm
►
Place the round part of the gauge terminal on the fl ange as
shown in the fi gure and press .
The number 353 ± 1° appears on the left display .
Turn the gauge downward position the round part of the gauge
terminal at 40 mm (radial distance) from the fl ange as indicated
in the fi gure; alternatively use one of the cones provided as
shown in the images
The number 256 ± 3° should appear on the left display.
If not, press the button holding the gauge still at 40 mm:
the number 256 appears on the left display.
Return the gauge to rest position.
▪
▪
▪
▪
▪
▪
In the event of incorrectly accessing the diameter gauge calibration function, press to cancel it.
