CEMB USA C65 (E) - Manual (Page 6)

I 0206 - 6 GB
4 - CONTROLS AND COMPONENTS
4.1 - BRAKE PEDAL
This pedal allows the operator to hold the wheel when fitting the counterweights. It must not be actuated
during the measuring cycle.
4.2 - AUTOMATIC DISTANCE AND DIAMETER GAUGE
This gauge allows measurement of the distance of the wheel from the machine and the wheel diameter at
the point of application of the counterweight.
It also allows correct positioning of the counterweights on the inside by using the specific function (see
INDICATION OF EXACT CORRECTION WEIGHT POSITION ) which allows reading, on the monitor, the position used
for the measurement within the rim (For calibration, see GAUGE CALIBRATION ).
The gauge can only be used with the counterweight pincers mounted.
4.3 - AUTOMATIC WIDTH GAUGE (OPTIONAL)
Width gauging is through a SONAR device which measures the distance of the wheel without mechanical
contact, merely by closing the guard and each time a valid measurement has been made with gauge
DISTANCE AND DIAMETER GAUGE .
4.4 - AUTOMATIC WHEEL POSITIONING
At the end of the spin, the wheel is positioned according to the unbalance on the outside or else
according to the static unbalance (when selected).
Accuracy is +/-20 degrees.

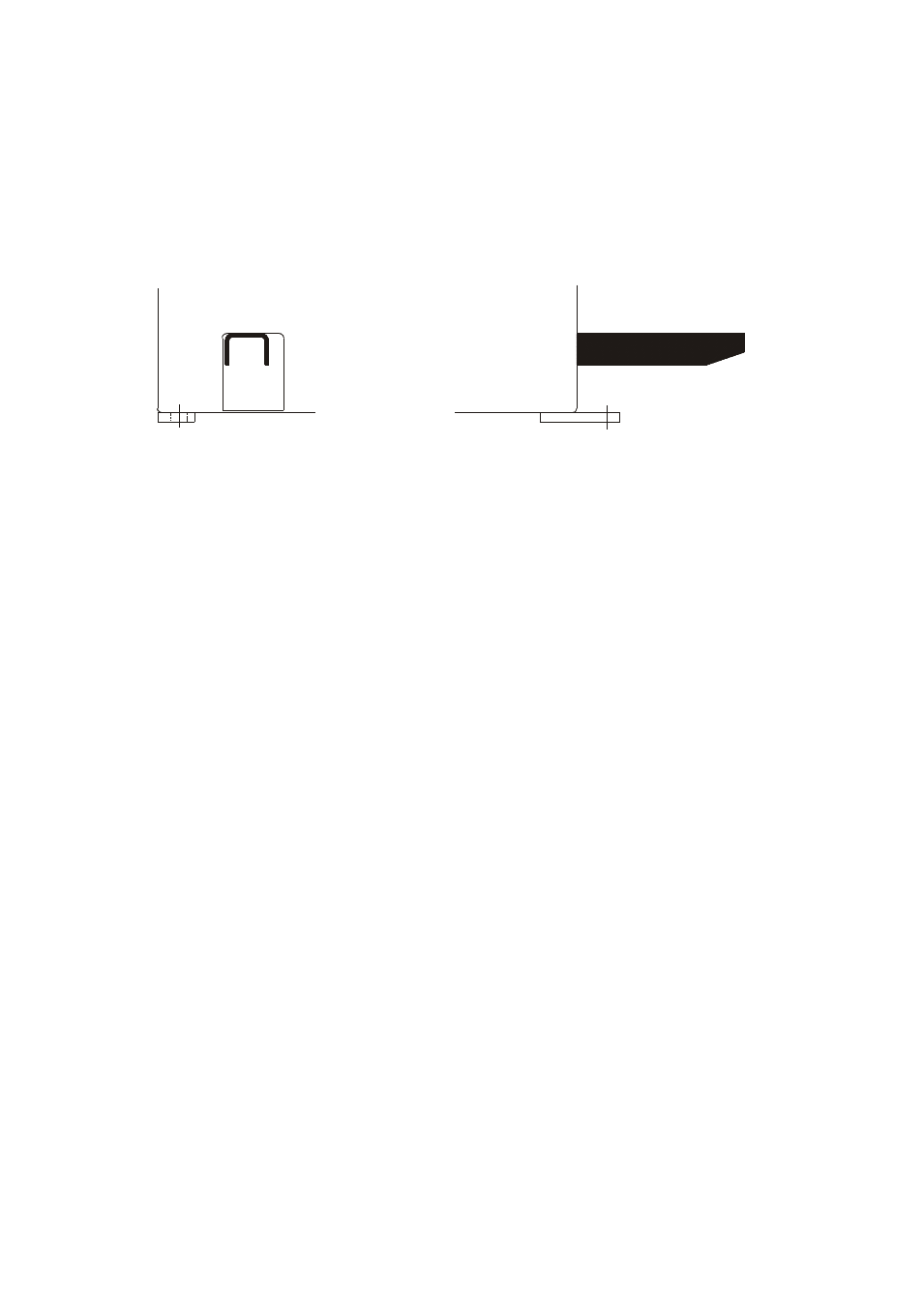

Fig. 5
