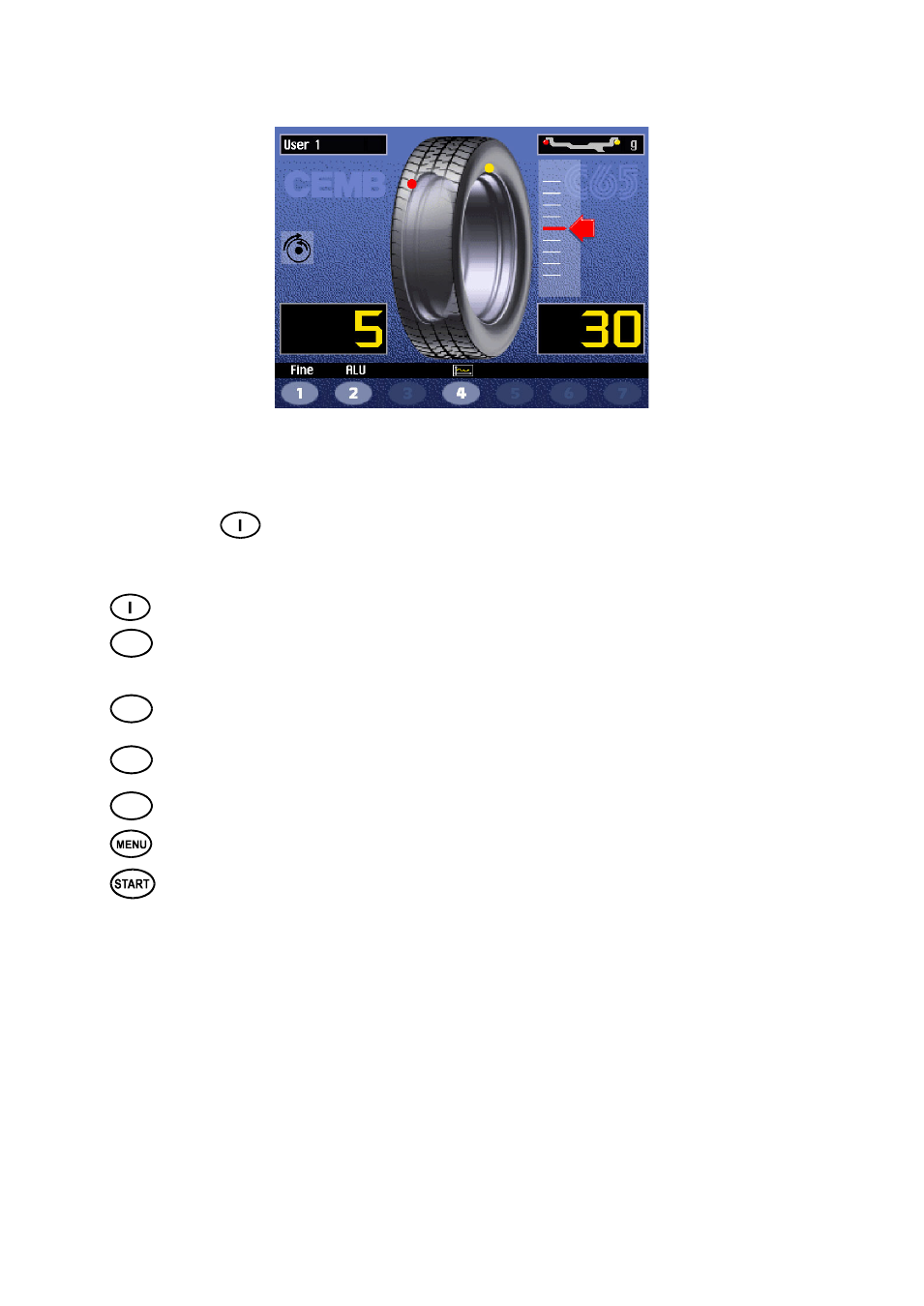

5.5 - RESULT OF MEASUREMENT
After performing a balancing spin, the unbalance values are displayed as well as arrows useful for
positioning the point of application of the correction weight. After positioning the wheel, apply the weight in
the 12 o’clock position.
If the unbalance is less than the chosen threshold value, the “OK” appears instead of the unbalance value
to indicate, on that particular side, the wheel is in tolerance; the residual unbalance can be displayed by
pressing button
with an accuracy of 0.5 g (0.1 oz).
The following buttons are enabled:
Display of residual unbalance
Selection of correction mode (DYNAMIC, STATIC, ALU1, ALU2, ALU3, ALU4, CTS).
When the mode is changed, the unbalance values are recalculated automatically on the
basis of the previous spin ( ALU AND STATIC MODES ).
Eccentricity measurement graph (optional). The symbol appearing above the button
changes to red if the eccentricity is excessive.
Split control for splitting of unbalance over presettable components ( “SPLIT” CONTROL ).
Button only enabled in STATIC or ALU S correction.
Indication of the longitudinal position of the unbalance ( INDICATION OF EXACT CORRECTION
WEIGHT POSITION ) is enabled
For selection of special functions
Balancing spin.
N.B. If the machine remains on this screen without being used for more than the time preset in the
Setup parameters (6), the screen automatically returns to the screen-save.
