5.3 - PRESETTING OF WHEEL DIMENSIONS
5.3.1 AUTOMATIC PRESETTING
The screen appears upon removing the distance + diameter gauge.
The indication “dimension acquired” is given by the symbol of the correction weight which changes from
blue to red.
- Standard wheels: Using the appropriate handgrip, move the end of the gauge against the rim in one
of the positions A/B shown in figure 8:
- Hold the gauge still in position for at least 2 seconds.
N.B. - Always use the round part of the gauge striker surface
INDICATOR
L.T. function enabled
(see Buttons Enabled)
INDICATOR:
Width Sonar
function enabled

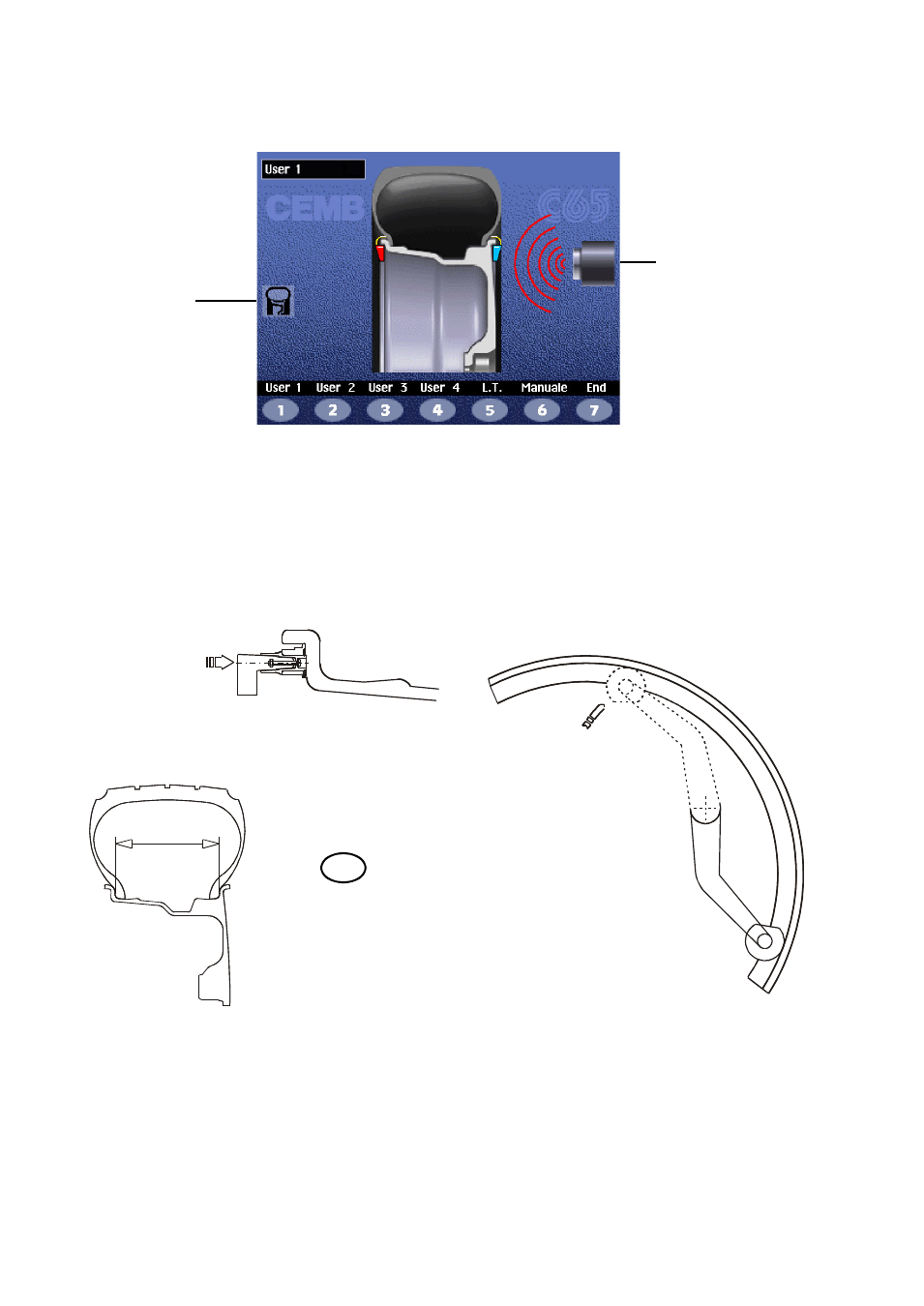

Fig. 8
If the beep signal is enabled (see ACUSTIC SIGNAL ),
successful acquisition of the dimensions is accompa-
nied by a “beep”.
- Press
6
- In manual mode, preset width “b”
(see MANUAL PRESETTING ).
- Normally the “nominal” width is stamped on the
rim; or else measure dimension “b” with the calliper
gauge (standard accessory).
AUTOMATIC WIDTH MEASUREMENT (OPTIONAL)
Gradually lower the guard after carrying out measurement of distance + diameter in automatic mode.
If the width measured is incorrect (out of range), the following message appears:
“Sonar measure is out of range:”
“F1 = repeat”
“F2 = manual set-up”
POS.A
POS.B
