14
Use and maintenance manual Rev. 10-2009
ENGLISH

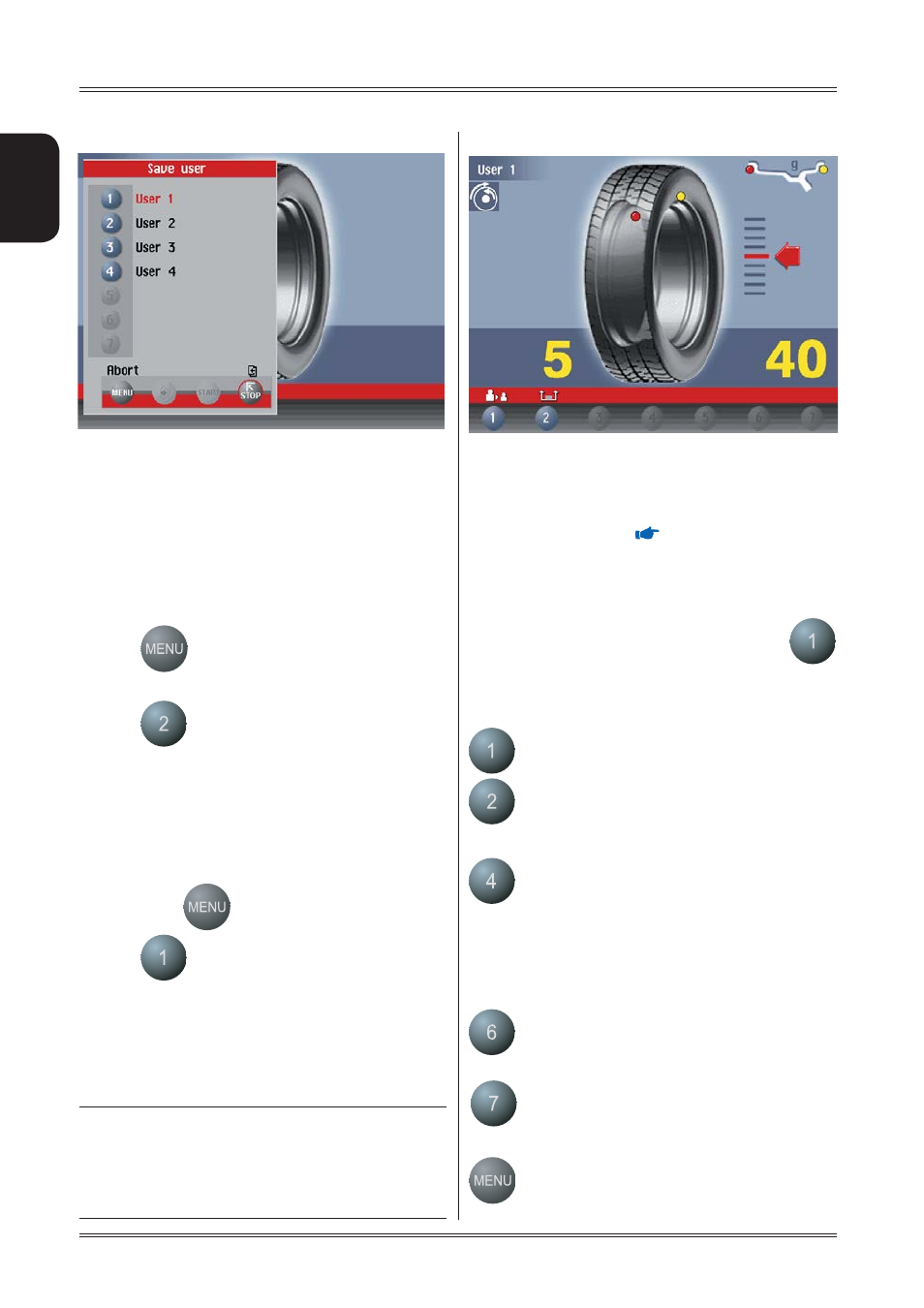

5.3 USER CONTROL
The wheel balancer can be used simultaneously by 4 diffe-
rent users who, through a simple sequence, can memorize
their work condition and call it when needed. The users’
names can be memorized (
PRESETTING THE CUSTOMER
AND USER NAME ).
5.3.1 To save USER
Pr ▪ eset the dimensions correctly according to the proce-
dures already described in sections AUTOMATIC
PRESETTING .
Press ▪ ; the “MENU” window appears on the
monitor.
Press ▪ ; a window appears with the list of availa
ble USERS. The current user is displayed in red.
Press the number corresponding to the required USER. ▪
The system returns to the initial screen automatically.
5.3.2 To call USER
Perfor ▪ m a measuring spin with any dimensions.
Press button ▪ ; the “MENU” window appears on
the screen.
P ▪ ress : a window appears with the list of avai
lable USERS. The current user is displayed in red.
Press the number corresponding to the required USER. ▪
The system automatically returns to the initial screen
with recalculation of the unbalance values on the basis
of the effective dimensions of the USER called.
INDICATION
The dimensions memorized as USER are lost when the
machine is switched off.
The USER control is also valid for the ALUS
dimensions.
The current USER is always displayed in the
Measurements and Dimensions screens.
Use of the wheel balancer
5.4 RESULT OF MEASUREMENT
After performing a balancing spin, the unbalance values are
displayed as well as arrows useful for positioning the point
of application of the correction weight. After positioning of
the wheel, apply the weight in the 12 o’clock position. When
the beep signal is enabled ( ACUSTIC SIGNAL ), reaching
of the correction position is accompanied by a “beep”. If the
unbalance is less than the chosen threshold value, the “OK”
appears instead of the unbalance value to indicate,
on that particular side, the wheel is in tolerance; the resi-
dual unbalance can be displayed by pressing button
with an accuracy of 0.5 g (0.1 oz).
The following buttons are enabled:
Display of residual unbalance
Selection of correction mode (STATIC/DUAL
SURFACE). When the mode is changed, the
unbalance values are recalculated automatically
on the basis of the previous spin.
When this push button is held down for more
than 1.5 seconds, eccentricity measurement is
temporarily disenabled (enabled in SPECIAL
FUNCTIONS ). To re-enable eccentricity measure
ment, press push button [4] again for more than
1.5 seconds. Every time the machine is switched
on, the status of eccentricity measurement refl ects
the settings in SPECIAL FUNCTIONS .
Split control for splitting of unbalance over preset
table components (
“SPLIT” CONTROL ). Button
only enabled in STATIC or ALUS correction.
Indication of the longitudinal position of the unba-
lance
( INDICATION OF EXACT CORRECTION
WEIGHT POSITION ) is enabled.
For selection of special functions
