13
FE FI
b
a
d
Use and maintenance manual Rev. 10-2009
ENGLISH
insertion of the width measurement.
Manually presetting is possible by using the push buttons as
described in
MANUAL PRESETTING.

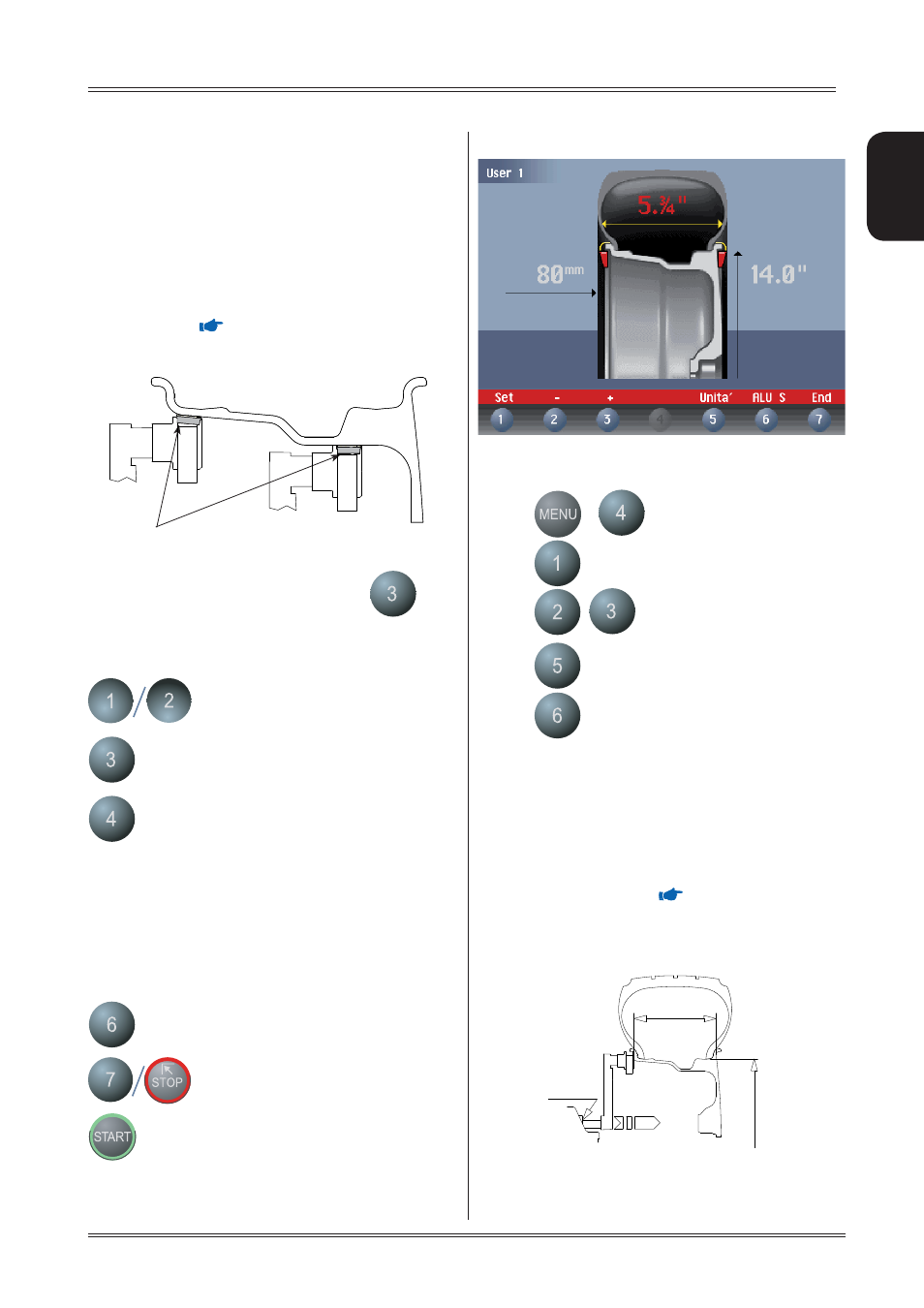

5.2.1.3 ALUS wheels
After the measurement performed for the FI inner side, as
indicated in the fi gure below, pull out the gauge again to
store the data for the FE outer side; choose position A or B
at your choice. Keep this position for at least 2 seconds. The
counterweight symbols change colour. When the acoustic
signal is enabled (
ACOUSTIC SIGNAL ), the acquisition is
accompanied by a “beep”.
After having detected the dimensions, use the key to
indicate the type of correction selected for the inner side.
The following buttons are enabled:
Management of save user recall
Selection of clip or adhesive weight for
inside.
Only for automatic width option:
The L.T. key (LIGHT TRUCK) used to
improve the dimensional calibration of
large diameter wheels such as off-road,
trucks, wheels which protrude signifi can
tly from the rim. Press the L.T. key, after
distance measurement, immediately before
lowering t he guard for Width Measurement.
The option is disengaged at the end of
current Width Measurement.
Selecting the manual dimension preset-
ting screen
Return to initial screen.
Balancing run.
Use of the wheel balancer
Position of adhesive weights
5.2.2 Manual presetting
If necessary, the dimensions can be inserted or edited in
manual mode as follows:
press ▪ +
pr ▪ ess to select the dimension to be preset
(red).
press / to preset the required value.
pre ▪ ss to change unit of measurement.
pr ▪ ess to preset the dimensions for the ALUS
correction mode
Defi nition of dimensions for correction using spring
weights:
d = DIAMETER:
Preset the nominal diameter stamped
on the rim.
b = WIDTH: Preset the nominal width indicated on
the rim (
STANDARD WHEELS) .
a = DISTANCE: Preset the distance of the inside of
the wheel from the machine, after
measuring it with relative gauge.
In the event of correction type other than standard (spring
weight), follow the instructions on the screen for correct
detection of dimensions.
