12
Pos B
Pos A
FI
b b
Use and maintenance manual Rev. 10-2009
ENGLISH

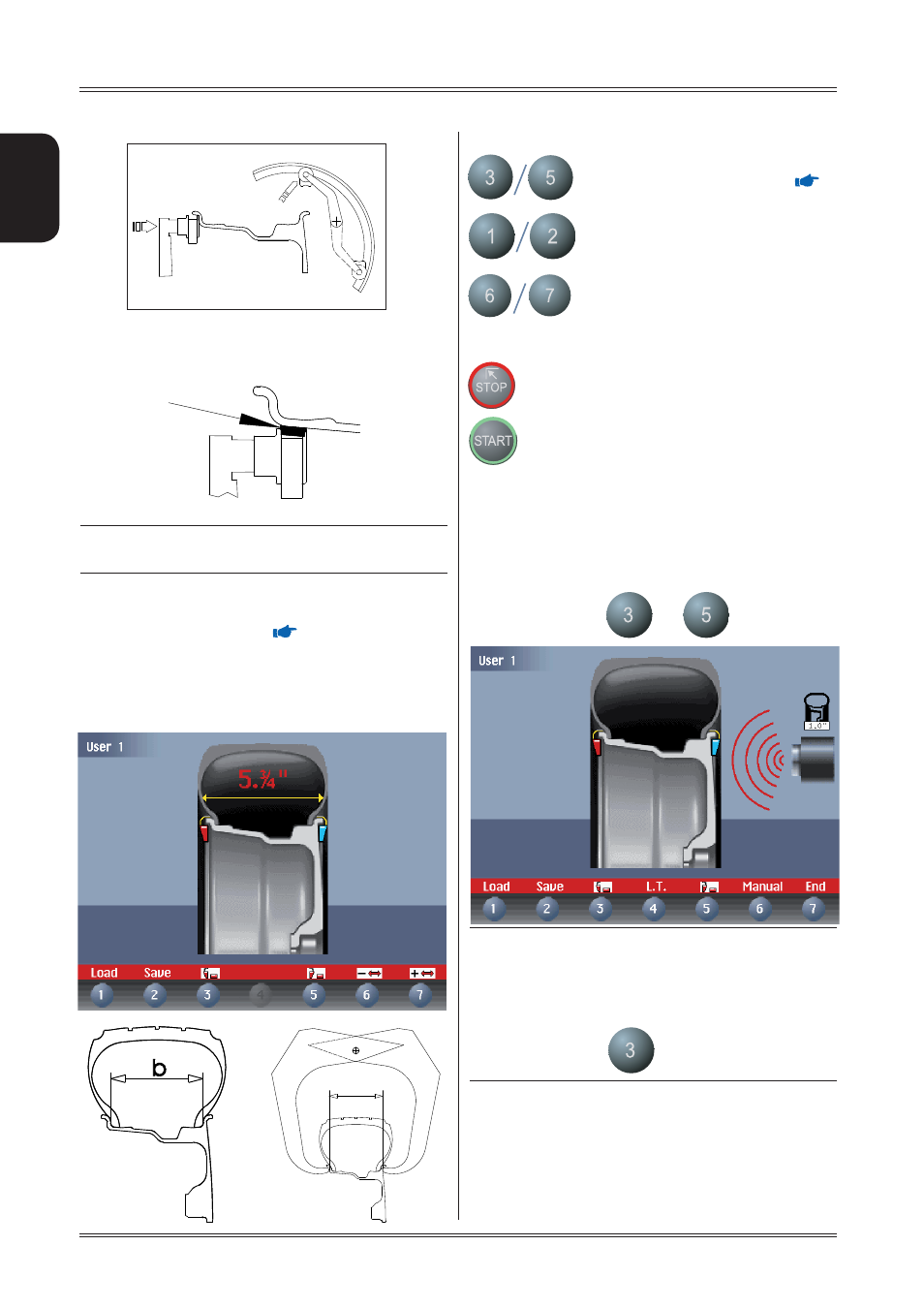

b) Adhesive weight: in the position indicated below.
INDICATION
Always use the round part of the striker plate.
Hold the gauge in position for at least 2 seconds.
If the acoustic signal is enabled ( ACOUSTIC SIGNAL ), the
acquisition of the dimensions is accompanied by a “beep”.
Set the distance+diameter gauge to the rest position: the
current width value is displayed inside the tyre.
The other enabled buttons are:
Select the type of weight to apply (
CORRECTION METHODS ).
User call/save control.
Set the nominal width, which is normally
shown on the rim, or measure the width
“b” with the caliper gauge provided.
Return to initial frame.
Launch balancing.
5.2.1.2 Automatic width measurement
(optional )
Gradually lower the guard after carrying out measurement of
distance + diameter in automatic mode.
It is possible to place the correction weights as required by
pressing pushbuttons and .
INDICATION
In the event of automatic measurement of both sides,
if the difference between the inner and outer diameters
is greater than or equal to 2”, the system sets the inner
side spring weight. To modify this presetting, press the
button.
If the width measured is incorrect (out of range), the following
message appears:
“Sonar measure is out of range:”
“F1 = repeat”
“F2 = manual set-up”
Press F1 to re-lower the guard and repeat the width measu-
rement. Press F2 to go to the dimensions panel for manual
Use of the wheel balancer
