Use and maintenance manual Rev. 09-2009
ENGLISH
5 Use of the wheel balancer
Use of the wheel balancer
The monitor shows several information and suggests
various alternative ways of use to the operator.
This is through various “screens”.

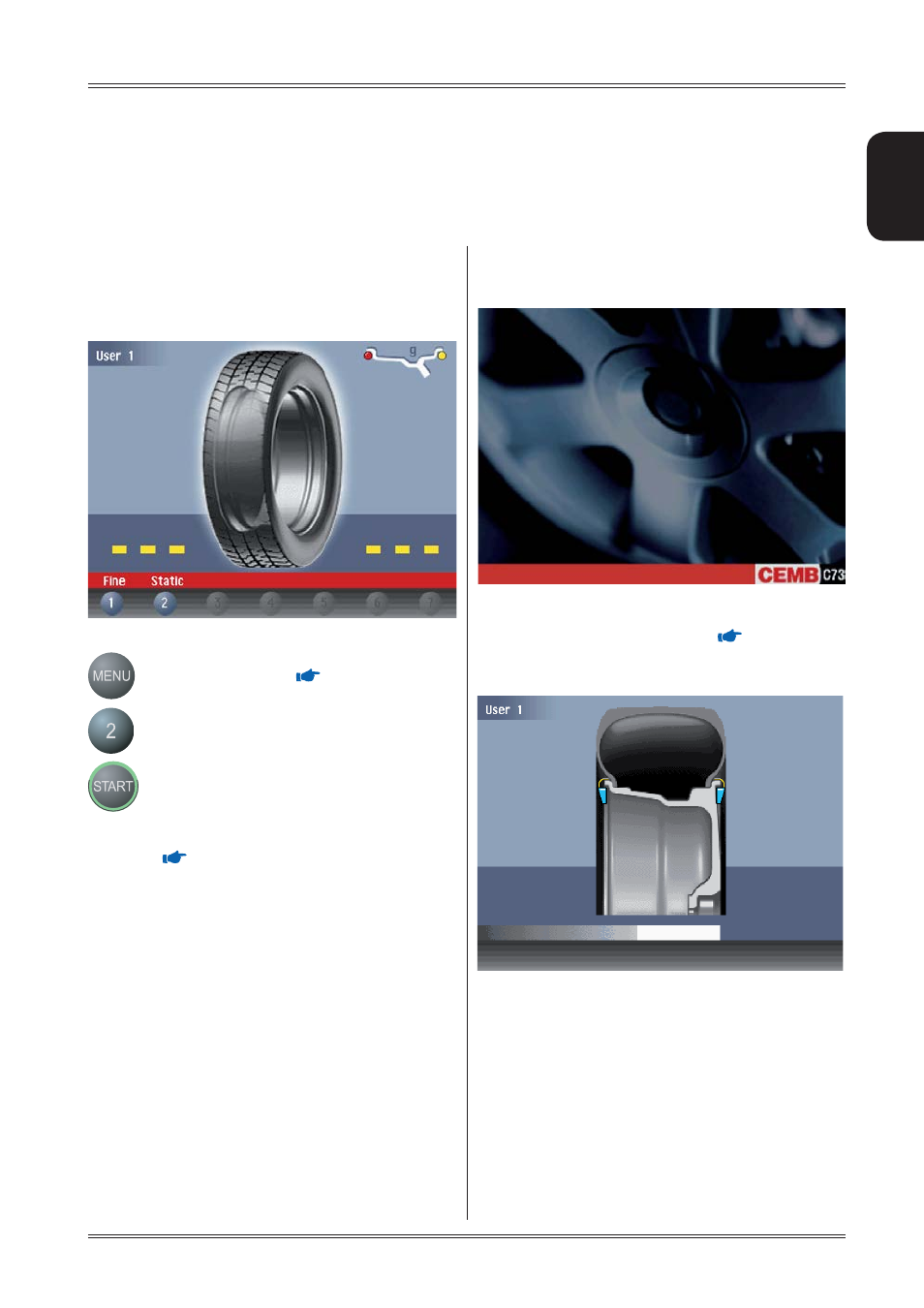

5.1 INITIAL SCREEN
Buttons enabled:
: main functions screen ( MENU ACCESS DIA-
GRAM )
: selecting static correction
: balancing spin (see RESULT OF MEASUREMENT )
Dimensions gauge : when extracted, the Dimensions screen
is selected ( PRESETTING OF WHEEL DIMENSIONS ).
If the machine remains on the initial screen for a certain
amount of time without being used, the system is
automatically switched to a screen-save. Striking of any key,
movement of the wheel of distance + diameter gauge will
cause automatic switching from the screen-save menu to
the initial screen.
5.1.1 SCREEN-SAVE SCREEN
Name of the wheel balancer’s owner. Can be preset via the
monitor.
5.2 PRESETTING OF WHEEL DIMENSIONS
5.2.1 Automatic presetting ( also
CORREC-
TION MODE
)
The screen appears upon removing the distance + diame-
ter gauge.
The “dimension acquired” message is indicated by the
correction weight symbol, which changes from blue to red.
5.2.1.1 Standard wheels
Using the special grip, move the end of the gauge against
the rim in one of the positions A/B indicated in the fi gure.
